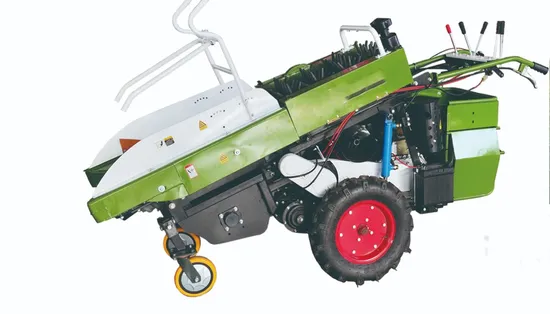

1100husked Corn Harvester, One Row Self-Drive Corn Harvesting Machine
| US$600.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YMS-1A
Application
Corn
Power Source
Gasoline
Harvest method
Cutting
Drive Type
Vee belt
Certification
QS
Color
According to Requirement
Condition
New
Application Field
Agriculture
Warranty
12 Months
Structure
Four Wheel Self-Propelled
(Kw)Rated Power
10.5
Number of Blades
12
(Kg)Weight
536
Transport Package
Wooden Box
Trademark
Mingsin
Origin
China
HS Code
8433599090
Production Capacity
10000set/Year
Product Description
Product DescriptionSmall maize harvesters are agricultural machinery specially designed for use in small-scale maize growing areas, and their main function is to carry out harvesting operations when the maize is ripe, including plucking, peeling and straw handling. These harvesters are usually small in size and flexible in operation, and are suitable for use in small plots and complex terrain.
The small corn harvester removes the corn cobs from the plant by means of an ear picking device, followed by removal of the corn husk by means of a peeling device, after which the cobs or peeled corn kernels are delivered to a collection box by means of a conveyor system. Meanwhile, the straw handling device chops or collects the corn stalks for subsequent processing. The whole process is highly automated, greatly improving the harvesting efficiency. Product Parameters
| Name | 1100Husked corn harvester | |
| Mode | YMS-1A | |
| Structure | Four wheel self-propelled | |
| Engine model | 1100F Diesel engine | |
| (kw)Rated power | 10.5 | |
| (r/min)Engine speed | 3600 | |
| (mm)Dimension | 2600×850×1400 | |
| Starting mode | Electrical start | |
| (kg)Weight | 536 | |
| Transmission mode | Triangle belt | |
| Main clutch type | Ortlinghaus plate | |
| Handle adjustment | Horizontal | Non-ajustable |
| Vertical | Adjustable | |
| Cutting row number | 1 | |
| (m/s)Operating speed | >0.3 | |
| %Kernel integrity rate | 90 | |
| Number of blades | 12 | |
| Speed changing box | Double differential steering | |
Machine characteristics | Grain recyling ,no waste Tire hydraulic lifting,slope operation Husks clean Straw directly crushed and returned to the field Can hopper,can bagged | |
