Mbr Membrane with Reinforced PVDF Hollow Fiber for Industrial Wastewater Treatment

Product Description

About SHUIYI
After years of honed in the competition, SHUIYI has become one of the few manufacturers in the industry with a full range of membrane technologies and products including microfiltration (MF), ultrafiltration (UF), nanofiltration (NF), and reverse osmosis (RO).
Our membrane products are widely used in the application fields of municipal sewage reclamation, industrial wastewater zero discharge, reclaimed water reuse, pure water preparation, highly polluting wastewater treatment, river restoration, decentralized rural sewage treatment, process concentration, and separation, etc., with rich application experience and engineering project cases.
Introduction

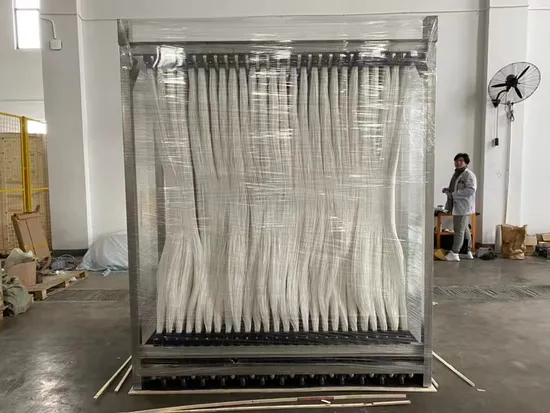

SHUIYI's latest Slufri® series MBR membrane products adopt lining reinforced PVDF hollow fiber membrane of new formulas and new processes. The operating flux, anti-fouling ability, and service life have reached the international leading level. It can realize low-cost and high-reliability treatment in many applications such as reclaimed water reuse and various industrial wastewater treatment.
Features Lower energy consumption and higher efficiency; Higher mechanical strength, slower flux decline, longer service life; Standardized modularization design for easy installment and replacement; Stable and reliable water production; Slower contamination speed, longer clean cycle. Specifications

Membrane Specifications	Model	SMU-30E	SMU-18E	SMU-18M	SMU-30A
	Material	Support layer: PET Separate layer: PVDF
	Active Membrane Area	30 m2	18 m2	18 m2	30 m2
	Nominal Pore Size	0.1 μm
	Hollow Fiber Inner/Outer Diameter	2.05/2.6 mm
	Filter Type	Reinforced outside-in membrane
Membrane Module Specifications	Model Dimensions	1250×2000×30 mm	1250×1300×30 mm	572×1560×46 mm	824×2200×46 mm
	Outlet Connection Size	Ф24	Ф24	Ф27	DN32
Material	End	ABS
	Sealing Material	Epoxy resin/Polyurethane
	Center Pole	SUS304
Weight	Membrane Weight (Dry)	15 kg	12 kg	6 kg	12 kg
	Membrane Weight (Wet)	30 kg	20 kg	9 kg	25 kg
Operation Conditions	Temperature	5~40ºC
	SDI15	5000-10000 mg/L
	pH	2-10
	Operating Flux (LMH)	10-30
	Backwash Flux (LMH)	30-50
	Recommended Transmembrane Pressure (TMP)	0-35 kPa
	Maximum Backwash Pressure	70 kPa
	Aeration Intensity	60-120 Nm3/h·m2 shadow area
	Chemical Cleaning pH Range	1-11
Quality of Permeate Water	Turbidity	≤ 0.5 NTU
	SS	≤ 2 mg/L
