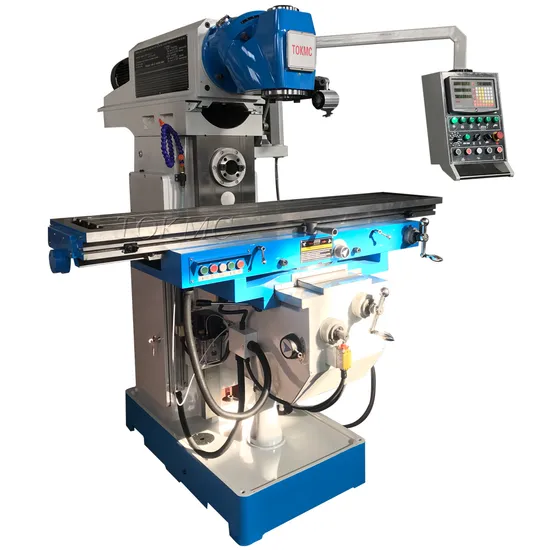

Lunan Milling Machine
| US$15,000.00-22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TUM1680BVH
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS
Condition
New
Table Size
1700X400mm
Spindle Taper
ISO50
X,Y,Z Axes Travel
1250/450/650 mm
Spindle Speed Range
50-1520 (V) 60-1850 (H)
T-Slots(No./Width/Pitch)
3/18/100
Main Motor Power
5.5 (H) 5.5 (V)
Transport Package
2245X2100X2000
Specification
3300KGS
Trademark
TOKMC
Origin
China
HS Code
84595900
Production Capacity
100 Sets Per Year
Product Description
LUNAN milling machineknee type vertical horizontal mill machine TUM1668BVH
FEATURES
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Variable speed transmission on X,Y ,Z axes
| Specifications | Unit | TUM1668BVH |
| Table size | mm | 1700×400 |
| Table travel (X/Y/Z) | mm | 1250/450/650 |
| Table feed speed X axis | mm/min | 25~800 |
| Table feed speed Y axis | mm/min | 25~800 |
| Table feed speed Z axis | mm/min | 8~267 |
| Spindle taper | 7:24 IS050 (H) 7:24 IS050 (V) | |
| Arm travel | mm | 700 |
| Distance from vertical spindle to table | mm | 200-850 |
| Distance from horizontal spindle to table | mm | 0-500 |
| Distance from spindle to arm | mm | 200 |
| Spindle speed range | r.p.m | 50-1520 (V) 60-1850 (H) |
| Spindle speed steps | steps | 12 |
| T-slots(NO./width/pitch) | mm | 3/18/100 |
| Main motor power | Kw | 5.5 (H) 5.5 (V) |
| AC servo feed motor torque | N.m | 12 |
| Overall size | mm | 2245x2100x2000 |
| Net weight | kg | 3300 |
Standard accessories:
Mill chuck set
Draw bar
Mill arbors
Worktable swivel ±50 degree
Reduction sleeve
Coolant device
Coolant tray
Automatic central lubrication
Foundation bolts
Tools
Optional accessories:
3-axis digital readout
Machine vice
Spindle protection
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
LED machine light
Arbor support for vertical milling head
