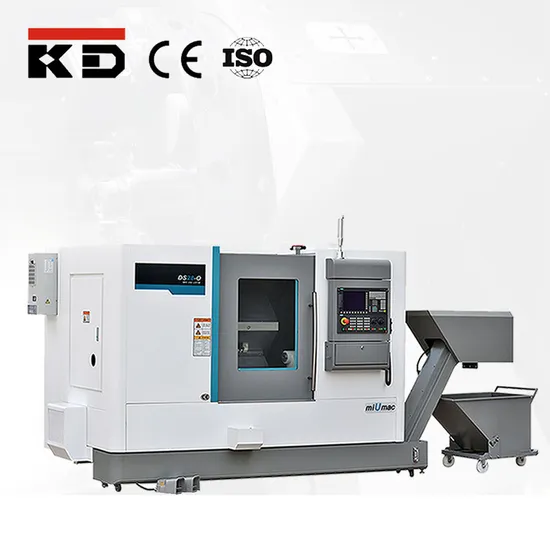

520mm Swing Precision Slant Bed CNC Lathe Machine Ds28-O
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DS28-O cnc lathe machine
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
520mm
Spindle Bore
65mm
Spindle Nose
A2-6
Tool Turret
12 Way
Main Motor
11/15kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/ Month
Product Description
PRODUCT SPECIFICATIONS
| MODELS | DS28-O/500 | DS28-O /1000 | DS28-O /1500 |
| CAPACITY | | ||
| Max. swing over bed | Ф520mm | ||
| Max. cutting diameter for disc parts | Ф420mm | Ф420mm | Ф500mm |
| Max. cutting diameter for axle parts | Ф300mm | ||
| Max. cutting length | 500mm | 1000mm | 1500mm |
| TRAVEL | | ||
| X travel | 255mm | 270mm | 270mm |
| Z travel | 600mm | 1050mm | 1550mm |
| FEED | | ||
| Rapid feed speed of X/Z | 30/24m/min | ||
| Linear guide ways width of X/Z | 35/ 45mm | ||
| Ball screw of X | Ø32×10 mm | Ø32×10 mm | Ø32×10 mm |
| Ball screw of Z | Ø40×10 mm | Ø40×10 mm | Ø50×10 mm |
| SPINDLE | | ||
| Max. speed of spindle | 4000rpm | 2500rpm | 2500rpm |
| Spindle nose | A2-6 | A2-8 | A2-8 |
| Diameter of spindle bore | Ф65mm | Ф80mm | Ф80mm |
| Hydraulic chuck | 8″ | 10" | 10" |
| Spindle motor power | 11/15kw | 15/18.5kw | 15/18.5kw |
| TOOL POST | | ||
| Tool number | 12-T hydraulic | ||
| Outside diameter of cutting tool shank | 25×25mm | ||
| Inner dia. of cutting tool shank | Ф40mm | ||
| TAILSTOCK | | ||
| Tailstock sleeve dia. | Ф80mm | ||
| Tailstock sleeve travel | 120mm | ||
| Taper hole of tailstock quill | M.T.No.4 | M.T.No.5 | M.T.No.5 |
| OTHERS | | ||
| Positioning accuracy of X/Z | ≤0.010/0.012mm | ||
| Repeated positioning accuracy | ≤0.003/0.005mm | ||
| Power of coolant pump | 180W | ||
| Capacity of lubrication pump | 2L | ||
| Bed structure | 45° slant bed integrated with stand | ||
| Overall dimensions(L×W×H) | 2880×1850×2000mm | 4800×1850×2000mm | 5300×1850×2000mm |
| Net weight | 4300kg | 5500kg | 6500kg |
