Chinese Manufacturer Wholesale CE/EPA 1500kg Excavator 1.5ton Crawler Small Digger Bagger 1ton 2ton 3.5 Ton Hydraulic Used Mini Excavator Factory Price

Product Description

Chinese Manufacturer Wholesale CE/EPA 1500kg Excavator 1.5ton Crawler Small Digger Bagger 1ton 2ton 3.5 Ton Hydraulic Used Mini Excavator Factory Price

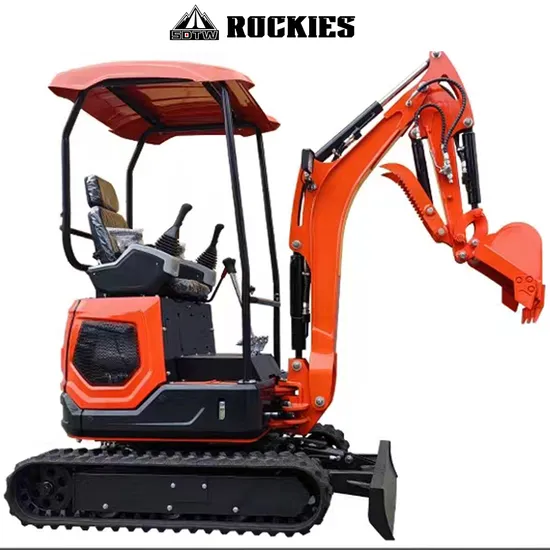

TW16 new Crawler Excavator
Product Feature And Advantage Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency Famous brand hydraulic system parts ensure the stable quality. Equipped with double fuel filter to guarantee fuel purity to protect engine Extend hydraulic line for various attachments. Comfort cabin, wide and open sight make operator easy to work. Korean pilot control joystick makes your operation easy &joyful Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower. Product Description
Detailed Photos

Product Parameters
TW16 excavator with swing boom standard, New design boom with cylinder behind, Updated hydraulic pilot joysticks, 4 poles canopy, Cast iron counterweight, Attracting new design machine cover, big comfortable seat with arm rest, Reinforced longer chassis, Reliable hydraulic parts. Digging depth 2000mm
Engine

Model	Laidong engine 29 kw D722 10.4 kw
Max torque	45N.m/2200 rom
Type	In-line, water cooled, 4 stroke, Mechanical pump, normally aspirated
Displacement	0.719
No. of cylinder	3

Main Performance

Swing Speed	r/min	12-13
Traveling Speed(high/low)	km/H	2.1/3.2 km/h
Grade ability	°	58%
Max. Bucket Digging Force	kN	9
Arm Digging Force	kN	5.5
Ground Pressure	Kpa	23
Hydraulic system pressure	Mpa	20
Machine Weight	KG	1500
Fuel Tank capacity	L	14.5
Hydraulic Tank capacity	L	1.5
Engine oil capacity	L	3.2
Supporting roller (each side)		3

Overall Dimensions

Overall Length	mm	2550
Overall Width	mm	1135
Overall Height	mm	2200
Mini Ground clearance	mm	380
Track width	mm	230
Track length	mm	1500
Axle base (Track length on ground)	mm	1190
Lifting height of blade	Mm	325

Operation parameters

Bucket Capacity	m3	0.04
Max. Digging Radius	mm	3227
Max. Digging Depth	mm	2000
Max. Digging Height	mm	2900
Max. Dumping Height	mm	2000

Company Profile
Shandong Tongwu Machinery Equipment Co., Ltd, inshort SDTW, founded in 2003, is one of the professional manufacturers of mining machinery in China. SDTW keeps on growing with its reliable products and good service, Product coverage continues to expand, like Diesel scooptram, electric scooptram, Underground truck, Drilling jumbo. SDTW is with ISO 9001 International quality management system certification.
SDTW sales network covers more than 20 provinces and cities, and exported to more than 60 countries, like Peru, Chile, Australia, Thailand, Indonesia, Brazil, South Africa, etc, several countries are with agent and distributors. Company adheres service first, quality-oriented management aim, got more and more good reputation these years.
Shandong Tongwu Machinery Equipment Co., Ltd sincerely hope to work together with customers both home and aboard to have win-win business relationship.
Packaging & Shipping

FAQ

1. who are we?We are based in Shandong, China, start from 2018,sell to South America(30.00%),Western Europe(20.00%),Oceania(15.00%),Eastern Europe(10.00%),South Asia(8.00%),Central America(7.00%),Northern Europe(5.00%),Southern Europe(5.00%). There are total about 11-50people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Mini Excavator/ Crawler Excavator/ Wheel Excavator/ Wheel Loader/ Backhoe Loader/ Skid Steer Loader/ Forklift Lift,Scooptram/Underground Truck/ Mucking Loader/ Drilling Jumbo4. why should you buy from us not from other suppliers?we are professional manufacturer of construction machinery, like excavator, wheel loader, forklift, skid loader, scooptram, dumptruck Quick delivery. 7-20 days. Good guarantee Excellent after-sale service 24 hours on-line service Technical training5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
