Fully Automatic Self-Lubricating System Quick6.0 Intelligent Cutting System Fiber Laser Cutting Machine

Fully Automatic Self-Lubricating System Quick6.0 Intelligent Cutting System Fiber Laser Cutting Machine

US$62,700.00
1 Piece
US$60,800.00
2 Pieces
US$57,700.00
3+ Pieces

Basic Info.

Model NO.
D-FLC-3015
Application
Home Appliance, Environmental Equipment, Textile Machinery, Aerospace Industry, Automotive Industry
Cooling System
Water Cooling
Technical Class
Pulse Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Free Electron Laser
Laser Technology
Fiber Laser
Cutting Area
3000mm*1500 mm
Z-Axis Travel
300mm
X/Y Axis Postioning Accuracy
0.03mm/M
X/Y Axis Re-Postioning Accuracy
0.02mm/M
Max Linkage Speed
120m/Min
Max Linkage Acceleration
1.5 G
Overall Capacity / Current
43.9kw~90.5kw /87.8A-181A
Max. Loading Weight
1300kg /Single Cutting Table
Machine Overall Dimensions
9017*2313*2360 mm
Weight of The Whole Machine
4137kg
Transport Package
Wooden
Specification
9017*2313*2360 mm
Trademark
INSERTER
Origin
China
Production Capacity
30sets/Year

Packaging & Delivery

Package Size
910.00cm * 240.00cm * 240.00cm
Package Gross Weight
4300.000kg

Product Description

Product Description
Product Superiority:
(1) Integral welded lathe bed
(2)Self-lubricating system
(3)Full surround sheet metal cutting protection
(4)High-strengthaluminum alloybeam
Product Parameters
D-FLC-3015 D-FLC-6015
Cutting Area 3000mm×1500 mm 6000mm×1500 mm
Z-Axis Travel 300mm 300mm
X/Y Axis Postioning Accuracy ±0.03mm/m ±0.05mm/m
X/Y Axis Re-postioning Accuracy ±0.02mm ±0.02mm
Max. Linkage Speed 120m/min 120m/min
Max. Linkage Acceleration 1.5 G 1.5 G
Overall capacity / Current 43.9kw~90.5kw /87.8A-181A 43.9kw~90.5kw /87.8A-181A
Max. Loading Weight 1300kg /Single cutting table 2600kg /Single cutting table
Machine Overall Dimensions 9017*2313*2360 mm 15055*2575*2360 mm
Weight of the whole machine 4137kg 8061Kg
Voltage Based on the order Based on the order
Selectable power segment 3KW/6KW 3KW/6KW

FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),
SouthAmerica(5.00%), Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%), Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.What is the function of this machine?

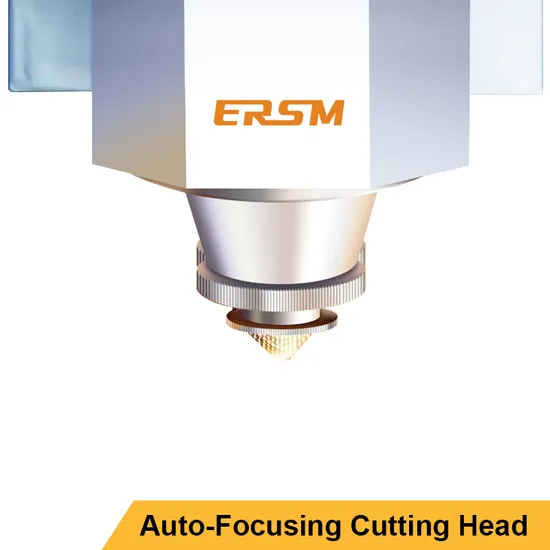

A:(1) Self-adaptive combined support foot:Double spherical gasket design, reduce the impact and vibration of operation, and make high-speed operation more stable. (2)Auto-focusing cutting head:Adapt to different materials and thicknesses, the focal length is automatically adjusted to the best cutting distance, and the efficiency is improved. (3)Automatic lubrication system:Full-automatic centralized lubrication control, low oil pressure alarm, oil-free shutdown, ensuring operation accuracy and stability. (4)Double-sided partition dust removal:Double-sided partition dust removal air duct, stable air volume, less cutting dust and excellent effect.
3.What advantages does this machine have in terms of numerical control system?
A:Plate surface height tracking control (follow-up function), retreat function, breakpoint return function, edge finding function, seam cutting compensation function, frog leaping function, common edge cutting, automatic typesetting function of introducing various parts, automatic optimization of cutting path, and support for marking and small hole marking.
4. What are the materials it can cut?
A: High carbon steel, low carbon steel, stainless steel, aluminum alloy, brass, pickling plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy, manganese alloy, nickel plate and other metal materials
5. How do you guarantee the environmental pollution of this machine?
A: We have Double-sided partition dust removal air duct, stable air volume, less cutting dust and excellent effect.
