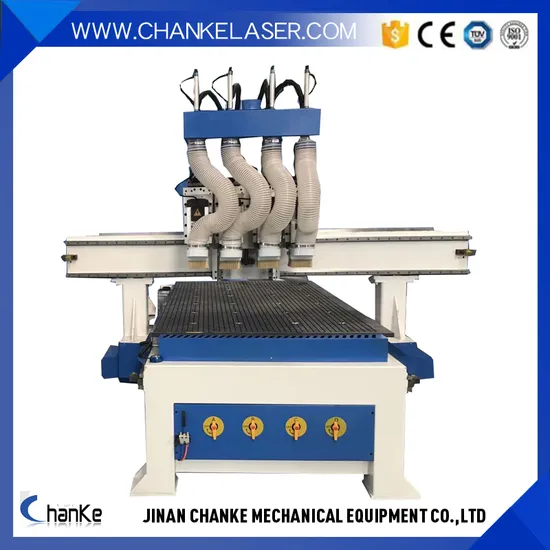

Professional 4 Muti Spindles 4 Heads 3D Metal Wood CNC Router Woodworking Carving Cutting Engraving Machine for Wooden Door Cabinet Alumnium Carving Machine

Product Description

Experience the precision and efficiency in crafting exquisite wooden doors with our state-of-the-art machine. Top-tier performance parameters:

Working travel	X axis	1300mm
	Y axis	2500mm
	C axis	200mm
Table structure		Vacuum table and T slot
orbit		HIWIN or PMI square orbit
Transmission type		X,Y Rack,Z Ball Screw
Repositioning accuracy		±0.05
Working accuracy		±0.05
Max air move speed		45000mm/min
Max working speed		20000mm/min
Spindle parameters	Type of cooling	air cooling spindle
	power	4.5kw/3.5kw /6.5kw air-cooled spindle
	speed	0-18000r/min
inverter		5.5kw Sunfar inverter
Drive system		YAKO-YKA2811MA
Command code		G code
Control system		WEIHONG-NK105/Syntec
Oiling system		Manual
Working voltage		AC380V/3PH/50HZ

Comprehensive Guarantee:
Enjoy 12 months of worry-free operation for the entire machine (excluding spindle, which has a 6-month warranty). During this period, under normal use and care,
if any issue arises, you will receive spare parts free of charge. Beyond the 12 months, spare parts are available at cost price. Benefit from lifetime technical support and service.
Unmatched Technical Support:
1. Around-the-clock technical assistance via phone, email, or MSN/Skype.
2. User-friendly English manual and instructional video CD.
3. On-site engineer service available for machinery maintenance overseas.
4. For those unable to self-install and assemble the machine, we offer the service of sending two engineers to your site for assembly, trial runs, training, and after-sales support. You are responsible for their round-trip air tickets, local accommodation, meals, transportation, and communication.
Additionally, a subsidy of USD 200/day per engineer is required.
Exceptional After-Sales Services:
Our machines are meticulously adjusted prior to dispatch, ensuring you can start using them immediately.
Receive free training advice at our factory, along with lifetime suggestions, consultations, technical support, and services via email, fax, or telephone.
Industries and Materials We Cater To:
1.Furniture Manufacturing : Wooden doors, cabinets, panels, office furniture, solid wood furnishings, tables, chairs, doors, and windows.
2.Wood Products : Speakers, game cabinets, computer desks, sewing machines, musical instruments.
3.Plate Processing : Insulation materials, plastics, chemical pieces, PCB; automotive bodies, bowling alley components, carbon fiber boards, epoxy resin, ABS, PP, PE.
4.Decoration Industry : Acrylic, PVC, MDF, artificial stone, organic glass, plastic, and soft metal plates like copper and aluminum.
Superior Performance
1. Four spindles enable simultaneous multi-process operations, akin to a cost-effective auto-tool changer CNC machine center.
2. The vacuum pump firmly secures carving materials, enhancing reliability and ease of use.
3. High-speed, robust rack rotation ensures air speeds up to 50m/min, and 25m/min even on wave boards.
4. Our software is compatible with Type3, ArtCAM, Castmate, Weitai, and more.
5. Advanced USB connection with DSP operating system facilitates fast and smooth processing, allowing offline functionality.
6. The entire welded structure undergoes tempering treatment, ensuring durability and longevity.
