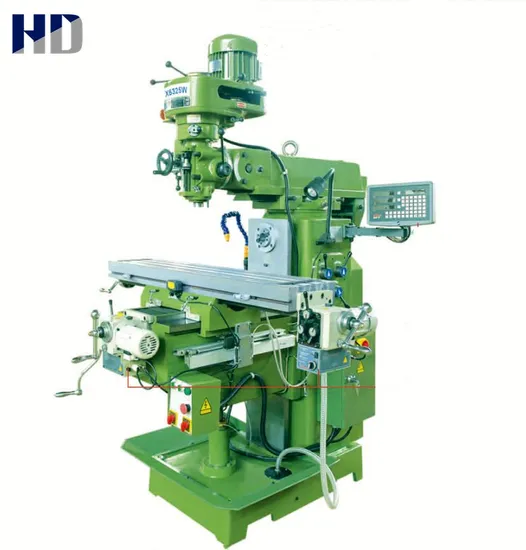

Spindle Turret Lathe Machine Xu6332W Turret Milling Machine
Basic Info.
Model NO.
XU6332W
Type
Milling Machine
Object
Other
Structure
Other
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Other
Controlling Mode
Other
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Milling Machine
Table Size
320X1570mm
Longitudinal Travel
1000mm
Transverse Travel
400mm
Vertical Travel
450mm
Spindle Speed Range
(V) 16steps 66-4540
Spindle Travel
127mm
Automatic Spindle Feeds
0.04/0.08/0.15
Distance Between Spindle Center and Colu
155-635mm
Distance Between Spindle Nose and Table
0-460mm
Spindle Taper
(V) Nt40
Spindle Motor Power
(V) 3.7 (H)3.0kw
Head Swivel
90 Degree
Machine Weight
1650kg
Transport Package
Wooden Cases
Specification
320X1570*1000mm
Trademark
HAIDI
Origin
China
HS Code
8459590000
Production Capacity
30 Sets/Month
Product Description
Specification Parameter
| Specifications | XU6332W |
| Table size(mm) | 320X1570 |
| Longitudinal travel(mm) | 1000 |
| Transverse travel(mm) | 400 |
| Vertical travel(mm) | 450 |
| Spindle speed range(rpm) | (V) 16steps 66-4540 |
| (H) 12steps 40-1300 | |
| Spindle travel(mm) | 127 |
| Automatic spindle feeds | 0.04/0.08/0.15 |
| Distance between spindle center and Column(mm) | 155-635 |
| Distance between spindle nose and Table top(mm) | 0-460 |
| Spindle taper | (V) NT40 |
| (H)NT40 | |
| Spindle motor power(kw) | (V) 3.7 (H)3.0KW |
| Head swivel | 90° |
| Head tilting | 45° |
| Machine weight (kg) | 1650KG |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ
