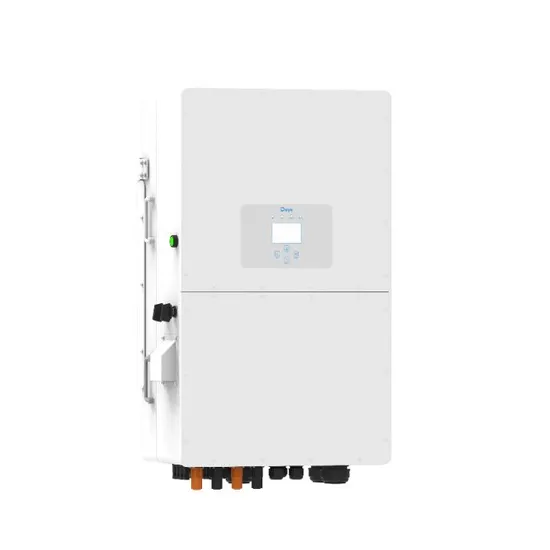

Deye Sun-50K-Sg01HP3-EU-Bm4 50kw Hybrid Solar Inverter 40kw 30kw 20kw High Voltage Inverter for Ess
Basic Info.
Model NO.
SUN-29.9/30/35K-SG01HP3-EU-BM3
Phase
Three
Output Power
30-50kw
Certification
CE, ISO9001
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave String
Sine Wave Inverter
Weight
98kg
Battery Type
Li-Lon
Certificate
Cei 0-21, VDE-Ar-N 4105
MPPT Voltage Range
150-850V
Protection Degree
IP65
Transport Package
Wooden Box
Specification
527*894*294mm
Trademark
Deye
Origin
China
HS Code
8507600090
Production Capacity
200PCS/Day
Packaging & Delivery
Package Size
52.70cm * 89.40cm * 29.40cm
Package Gross Weight
98.000kg
Product Description
| Model | SUN-29.9K-SG01HP3 -EU-BM3 | SUN-30K-SG01HP3 -EU-BM3 | SUN-35K-SG01HP3 -EU-BM3 | SUN-40K-SG01HP3 -EU-BM4 | SUN-50K-SG01HP3 -EU-BM4 |
| Battery Input Data | |||||
| Battery Type | Lithium-ion | ||||
| Battery Voltage Range (V) | 160-800 | ||||
| Max. Charging Current (A) | 50+50 | ||||
| Max. Discharging Current (A) | 50+50 | ||||
| Number of Battery Input | 2 | ||||
| PV String Input Data | |||||
| Max. PV Input Power (W) | 38870 | 39000 | 45500 | 52000 | 65000 |
| Max. PV Input Voltage (V) | 1000 | ||||
| Start-up Voltage (V) | 180 | ||||
| MPPT Voltage Range (V) | 150-850 | ||||
| Rated PV Input Voltage (V) | 600 | ||||
| Max. Operating PV Input Current (A) | 36+36+36 | 36+36+36+36 | |||
| Max. Input Short-Circuit Current (A) | 55+55+55 | 55+55+55+55 | |||
| No. of MPP Trackers/ No. of Strings per MPP Tracker | 3/2+2+2 | 4/2+2+2+2 | |||
| Communication Interface | WIFI, RS485, CAN | ||||
| General Data | |||||
| Operating Temperature Range (ºC) | -40 to +60ºC, >45ºC Derating | ||||
| Cabinet Size (WxHxD mm) | 527×894×294 (Excluding Connectors and Brackets) | ||||
| Weight (kg) | 80 | ||||
| Permissible Altitude | 2000m | ||||
| Noise (dB) | ≤65 | ||||
SOLAR MANDeye residential monitoring solution takes great care to ensure that your PV system is in excellent operation throughout its entire life-cycle. This monitoring solution offer you details information of your power generating plant including Today energy, Monthly energy, yearly energy, total energy etc, through wireless communication with your router to the internet by a smart wifi plug. User can easily access to the monitoring page via PC web or phone APP.
Maximum your energy output while minimizing your costs. Scan the QR code to build your power station !
