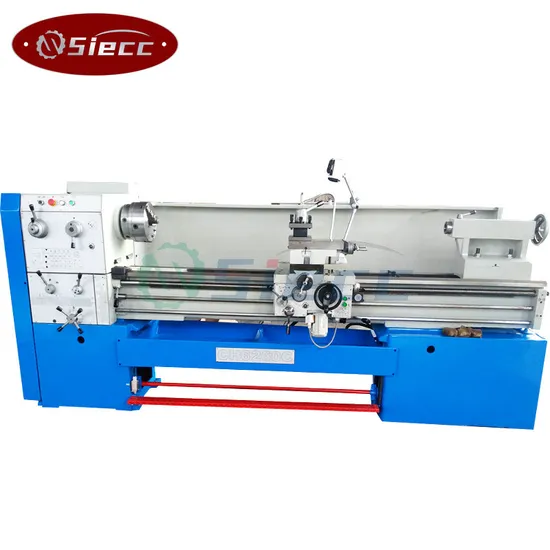

Siecc China Famous Factory Steel Manual and CNC Lathe Machine
| US$5,000.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LC510
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Brand
Siecc
Motor
Siemens
Trademark
SIECCTECH/SIECC
Origin
Jiagnsu, China
Production Capacity
200 Set /Month
Product Description
| PRODUCT FEATURES | ||||
| *THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED. *GEARS PRECISELY GROUND TO REDUCE NOISE. *SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION. *RAPID FEED STRUCTRUE IS AVAILABLE ON APRON. *INTEGRAL CASTING BASE CAN BE OPTIONAL. | ||||
| TECHNICAL PARAMETERS | ||||
| SPECIFICATION | LC510/1000MM | LC510/1500MM | LC510/2000MM | |
| CAPACITY | Max.swing over bed | 510mm | ||
| Max.swing over cross slide | 330mm | |||
| Max.swing over gap | 660mm | |||
| Effective length of gap | 200mm | |||
| Center Distance | 1000mm | 1500mm | 2000mm | |
| Bed Width | 360mm | |||
| HEADSTOCK | Spindle hole | 82mm | ||
| Spindle nose | ISO-C8 | |||
| Spindle taper | MT8 | |||
| Spindle speed(Number) | (9steps)40-1300rpm | |||
| FEEDS AND THREADS | Max.travel of top slide | 95mm | ||
| Max.travel of cross slide | 250mm | |||
| Max.size of toolshank | 20*20mm2 | |||
| Longitudinal feeds range | 0.0832-4.66mm/r | |||
| Cross feeds range | 0.048-2.69mm/r | |||
| Metric threads range | 19kinds 0.25-14mm | |||
| Inch threads range | 49kinds 2-40inch | |||
| Moudle threads range | 11kinds 0.5-3.5mπ | |||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | ||
| Taper of tailstock sleeve | MT4 | |||
| Max.travel of tailstock | 140mm | |||
| MOTOR | Main drive motor | 5.5KW | ||
| Coolant pump motor | 90W | |||
| PACKING | L*W*H | 242*112*175cm | 292*112*175cm | 342*112*175cm |
| WEIGHT | N.W/G.W | 1600/1800kgs | 1800/2050kgs | 2000/2300kgs |
| ACCESSORIES | ||||
| STANDARD ACCESSORIES | ||||
| PART:INSTALL ON THE LATHE | ||||
| 3-jaw chuck(Φ250mm) | ||||
| Steady rest & follow rest | ||||
| Longitudinal touch stop | ||||
| Work lamp | ||||
| Coolant system | ||||
| Full-length splash guard | ||||
| Foot brake and brake ribbon | ||||
| PART:INSIDE THE PACKAGE WITH THE LATHE | ||||
| 4-jaw chuck(Φ320mm) | ||||
| Change gears | ||||
| Dead centre and centre sleeve | ||||
| Face plate | ||||
| Oil gun | ||||
| Paddings | ||||
| One whole set spanner and tool box | ||||
| Operation manual | ||||
| OPTIONAL ACCESSORIES | ||||
| Live centre(MT4) | ||||
| 2axis Digital readouts(SINO) | ||||
| 3axis Digital readouts(SINO) | ||||
| Rapid travel(for 1000&1500mm length is optional; for 2000mm length is standard) | ||||
| CE-conformity(Chuck guard,Toolpost guard and leadscrew guard) | ||||
| USA type Quick change tool post | ||||
| Europe or Italy type Quick change tool post | ||||
| Drive plate | ||||
| Thread-cutting dial | ||||
| Magnetoelectrical brake | ||||
| Drill chuck set | ||||
| Taper cutting function | ||||
| Cutting tool holders set(7pcs or 9pcs) | ||||
