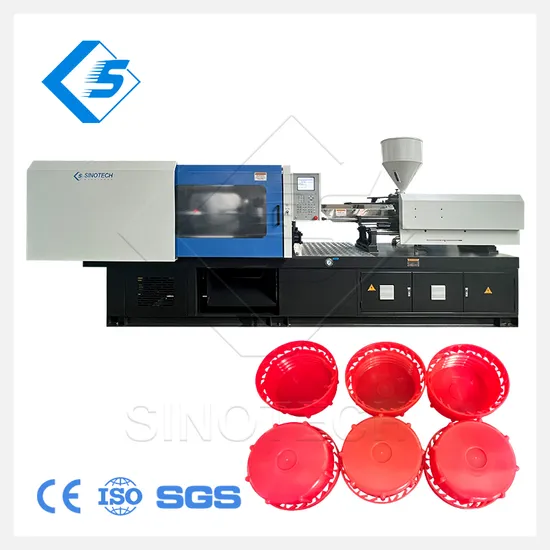

Automatic High Speed Plastic Bottle Cap Cover Lips Injection Molding Moulding Machine Manufacturer 850 Ton for for Detergent Shampoo Oil Water Bottle

Product Description

Automatic High Speed Plastic Bottle cap cover lips Injection Molding Moulding Machine Manufacturer 850 ton For for Detergent Shampoo Oil Water Bottle

Product Description
Machine Features:
1) Precision hydraulic synchronous template adjusting system
2) Optimal design of high-strength precision clamping structure, Clamping unit rigidity and accuracy
3) Large colorful screen high-precision computer system, precision control, easily operation, multi operation language available. High-precision displacement sensor system, temperature control accuracy, big capacity data storage and date protection ability
4) World famous brand electrical system
5) Balanced type of double injection cylinder, eliminate oblique torque, diminishes deformation of screw and barrel, extend life of screw and barrel, optimizes plasticizing effect. Machine injection under multi-pressure and at various speed, with big capacity hydraulic motor.
6) Large torque oil motor
7) Highly abrasion resistant alloy sliding block
8) The integrate type oil detachable oil tank, magnetic filter and bypass strainer. Reasonable and highly efficient lubrication system. Modularized energy conservation high response oil system
9) Highly precise transducer, multi-stage control of opening stroke, speed and position. Flexible tie bars nut eliminate fatigue fracture, assure tie bars long working life.
10) Security door fitted with hydraulic, mechanical and electrical interlocking triple safety device, fully protect machine operator.
11) Energy saving system, no extra energy consumption due to output volume changes according to load alteration. During stage of holding pressure, servo motor lower down energy consumption, 0 energy consumption during machine cooling stage, save 20%-80% energy consumption compare with standard machine.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item	Unit	850SElll
Screw diameter	mm	90	100	110
Theoretical shot volume	cc	2990	3691	4467
Shot weight (PS)	g	2691	3322	4020
Shot weight (PS)	oz	95	117	142
Length/Diameter ratio	L/D	22.6	20.0	18.0
Injection pressure	MPa	212	171	142
Injection rate	cm³/sec	572	706	854
Plasticizing capacity(PS)	G/s	73	90	121
Injection stroke	mm	470
Max. Screw speed	rpm	124
Injection unit force	Ton	19.8
Carriage stroke	mm	600
Clamping force	Ton	850
Max. daylight	mm	2200
Clamping stroke	mm	1025
Distance btwn. Tie bars	mm	1060*1060
Min mould dimension	mm	740*7040
Mould thickness range	mm	450-1100
Ejector force	Ton	25
Ejector stroke	mm	350
No. of ejector pins	unit	21
Max. motor power	kW	83.8
System pressure	MPa	17
Hydraulic pump capacity	L/min	440
No. of heater zones	unit	5+1
Heater input power	kW	50
Ultimate capacity	kw	132.8
Current	A	161.4
Net weight	Ton	43.0
Oil filling capacity	L	1500
