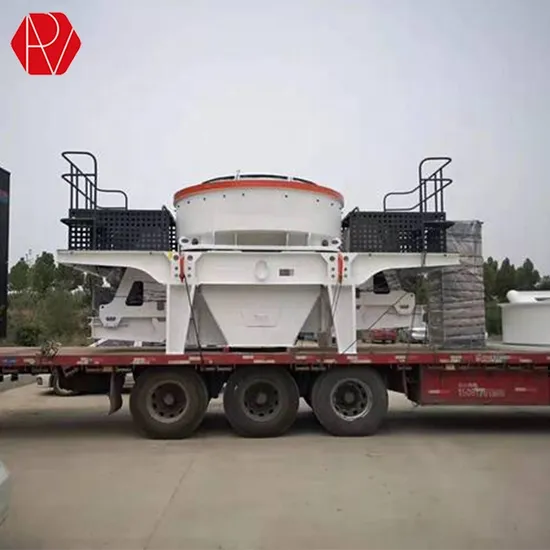

High Efficiency Mining Vertical Shaft Impact Crusher VSI7611 VSI Sand Maker
| US$25,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
VSI7611
Application
Chemical Industry, Railroad, Construction, Metallurgy
Structure
Vertical
color
yellow/white
Installation
Engineers Could Guide in the jobsite
Technical service
The whole using life
Max Feeding Size(mm)
35
Side and Central Feeding Throughput(tph)
120-180
Full Central Feeding Throughput(tph)
60-90
Speed(rpm)
1700-1890
poweR(kW)
55X2
Dimension(mm)
4100X2250X2258
Motor Type
AC Motor
Transport Package
Main Machine in Pallets, Motor and Accesssories in
Trademark
PV/HCTC/TRUEMAX
Origin
Zhejiang, China
HS Code
8474100000
Production Capacity
100sets/Month
Product Description
| VSI5X series main specification | ||||||||||
| Model | Capacity | Maximum feed size | Speed (r/min) | Double motor power (kw) | Weight (t) | Power supply | Dimension[L×W×H] (mm) | |||
| Side and central feeding | Fully central feeding | Soft material | Hard material | |||||||
| VSI5X7615 | 150-280 | 70-140 | 35 | 30 | 1700-1900 | 150 | 10 | 380v, 50hz | 4100×2322×2459 | |
| VSI5X8522 | 240-380 | 120-190 | 40 | 35 | 1500-1700 | 220 | 12.5 | 4500×2478×2658 | ||
| VSI5X9532 | 350-540 | 180-280 | 45 | 40 | 1300-1510 | 320 | 14.5 | 4800×2571×2893 | ||
| VSI5X1145 | 500-640 | 250-360 | 50 | 45 | 1100-1310 | 440 | 19 | 5500×2799×3320 | ||
| Hydraulic lubrication station | Power(kW) | 0.75 | ||||||||
| Safety | Automatic stop working when weak oil flow or low hydraulic pressure, Air cooling system, start heating system automatically in winter. | |||||||||
| Flow capacity | 4-16L | |||||||||
| Oil tank heater power | 4kW | |||||||||
| VSI series main specification | |||||||||||
| Model | Capacity | Maximum feed size | Speed (r/min) | Double motor power (kw) | Weight (t) | Power supply | Vibration sensor | Dimension[L×W×H] (mm) | |||
| Side and central feeding | Fully central feeding | Soft material | Hard material | ||||||||
| VSI7611 | 120-180 | 60-90 | 35 | 30 | 1700-1890 | 110 | 11.8 | 380v, 50hz | 2×0.25kW | 3700×2150×2100 | |
| VSI8518 | 200-260 | 100-130 | 40 | 35 | 1520-1690 | 180 | 14.5 | 4140×2280×2425 | |||
| VSI9526 | 300-380 | 150-190 | 45 | 40 | 1360-1510 | 264 | 17.8 | 4560×2447×2778 | |||
| VSI1140 | 450-520 | 225-260 | 50 | 45 | 1180-1310 | 400 | 25.6 | 5000×2700×3300 | |||
| Hydraulic lubrication station | Power(kW) | 0.75 | |||||||||
| Safety | Automatic stop working when weak oil flow or low hydraulic pressure, Air cooling system, start heating system automatically in winter. | ||||||||||
| Flow capacity | 4-16L | ||||||||||
| Oil tank heater power | 4kW | ||||||||||
Hangzhou Cohesion Technology CO.,LTD has been specializing in manufacturing and supplying mining equipment and the relevant parts for over 20 years. With the good quality and professional service, Hangzhou Cohesion Technology has won the fame in the industry of crushing machinery globally.
Our products include: jaw crushers, cone crushers, impact crushers, vibrating feeders, vibrating screens, belt conveyors, crushing plant, dust collector & etc. Our technical team can customize for your crushing and screening plant based on your requirements.
The crusher parts we produce almost cover all the famous brands, including: Met.so, Sanvik, Terex, Telsmith, Hazemag, Kleemann, Trlo, Symons, Shanbao, Shibang & etc.
We are dedicated to providing "the one-stop solution service" for mining equipment and the relevant parts. We are aiming to make our customers' job easier and to make their business more successful.
