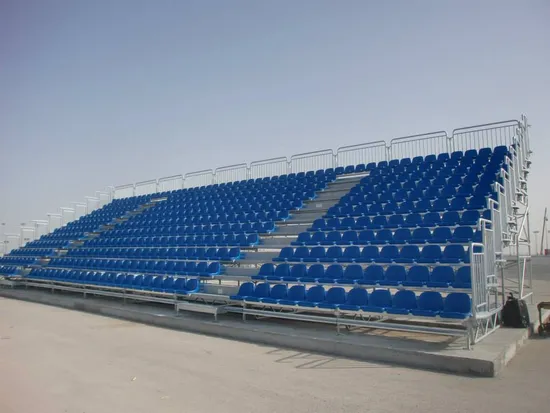

Jy-715 Factory Price Supply Steel Grandstand Sports Bleacher Plastic Seat

Product Description

JY-715 Factory Price Supply Steel Grandstand Sports Bleacher Plastic Seat

SPECIFICATION
Product Name		Steel Bleachers
Model Number		JY-715
General Use		Steel Bleachers
Material		Plastic, steel
Size		Customize
Color		Optional according to color swatch
telescopic indoor gym bleachers Description		1. stadium chair seats ( Chair attached to platform by antirust metal support structure) 2. All metal structure are steel, dealed with antirust, Acid washing, phosphatization, powder coating. 3. Injection molding plastic seats (PE) 4. Chair colour could be selected by client; 6. Including stairs retractable bleacher
Installed Way		Isochronous machine feedback setting
Packing		about 1400 pcs /20 GP .about 3500pcs/40 HQ
MOQ		100 seats
Delivery Time		25-35 Days
Output		5000 Sets / Month
Loading Port		Chongqing, China
Payment		L/C, T/T, Western Union, MoneyGram

Introduction
Telescopic seating system is widely used in variety spaces like stadiums , TV studios and all kinds of multifunctional places with its advantage in space saving.
You can enjoy all events sitting on the comfortable telescopic stand when it's pulled and extended in a shape of steps.
When it is closed, you can save a lot of spaces, and carry out other activities.
Our telescopic stand is driven by manual and electric ,with the great structure design ,beautiful style, reliable safety measures and accurate locations.
Easy operation , convenient maintenance, low noise are advantages of the telescopic seating system.
Specifications for chairs fixed on the bleacher:
1. HDPE plastic bench chairs.
2. Color is optional according the the color swatch.
2. Center distance: 455mm width.
Whole Structures of the telescopic seating system
1. Accordingly to grandstand dimensions, different types of steel profiles are used.It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.
2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.
3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.
4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of 3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material : Q235A.
Specifications for the system
Moving speed: 100mm/s
Location Accuracy: +_30mm
Driving Motor power: 0.37-1.1kw
Power: AC 380V 50-60HZ(AC 220V 50-60HZ)
Lateral Depth of the steps: 800-930mm; 1800-1850mm
Allowed dynamic load in the step surface: 300kg/
Load of bottom wheel: ≥300kg/piece
MOQ:100 seats
Delivery Time:20-30 working days
Payment Terms: T/T, L/C
Company Profile

ABOUT OUR COMPANY
Chongqing JUYI Industry Co., LTD is a professional manufacturer of auditorium chairs, sports stadium seats, telescopic bleacher seating system, and stage equipment for kinds of sports arena, performance halls, theaters, cinema and multifunctional hall.
We design, develop, produce, install and maintain kinds of outdoor or indoor sports stadium seats and auditoriums chairs. In order to be successful in China's chair manufacture industry, we are combining different styles and designs according to the principle of human body engineering. Elegance exists with simplicity and functional optimization.
In the past years, we supplied so many chairs and telescopic seating system to some important domestic and oversea projects. Such as 2008 Beijing Olympic Games press center haIl; 2014 Winter Olympic game in Sochi, Russia; PLA General Armament Department Conference Hall in Beijing; Tianjin Bin hu Theater; Gansu Jia Yu Guan Theater; 2011 Shenzhen Universiade; Van Tian Stadium, Jakarta Cibinong stadium etc.
Our products were exported to many countries in North America, South America, Eastern Europe, Africa, Mid East, Eastern Asia, Northern Europe, Southern Europe, South Asia. For example, France, UK, Germany, Finland, Holland, Norway, Cyprus, Ice land, Malta, Russia, Georgia) Lithuania, Canada, Australia, USA, Mexico, Spain, Venezuela, Columbia, Puerto Rico, Ecuador, Kenya, Nigeria, Haiti, Saudi Arabia, Dubai, Yemen, Kuwait, Qatar, Iraq, Iran, Lebanon, Indonesia, Thailand, Philippines, India, Singapore, Sri Lanka, Vietnam, Malaysia etc.
Layout drawing design before order and installation support after order are both available from us; 5 years guarantee after sales is provided.
All countries business people and project bidder are great welcome to visiting our factory to check production site and talk business. We expect you join us to gain various project on seating and stage equipment projects.
OUR SERVICES
With over 15 years experience and real focus on customer satisfaction, you can rely on us for your next renovation, driveway sett or home repair. We provide a professional service for private and commercial customers.
OUR PRODUCT PROCESSING
99% of JUYI Seating products are well tooled in our full range workshops upon raw material arrive at our factory. Our professional, experienced and skilled workers make sure that every step of the product process is under the guideline of ISO 9001 and ISO 14001 system. We have to make sure that every project you get our best.
What makes JUYI different from other manufactuers in China?
1. Rich manufacturing resources, the biggest seating production base in southwest of China;
2. Best combination of value and quality seating products that guarantees your business success;
3. Incredible custom design capabilities;
4. Professional customer service provided by experienced sales team;
5. Strong engineer team.
We are worth for your trust and sincere to assistant your win the project tender !
FAQ Q: Are you a factory or trading company?
A: We are the factory, established from 2007, at the same time, we began to export, until today we have 14 years export experience.
Q: Do you provide samples?
A: Yes, we can provide most of the product samples. But we will charge a little sample order fee, if you placed the order.
Q: Where does your factory locate in?
A: Chongqing, south west of China.
Q: Does your city have a sea port? If yes, what is the nearest port name?
A: Yes, we do. Our city has a port named "Port Chongqing". Also from 2010, Chongqing new European international railway started, we can delivery goods to Europe in a very short time, more faster and more safety.
Q: Can we visit your factory? Is it far from the airport?
A: Yes, we are warmly welcome you come to visit our factory at any time. Our city's airport name is "CHONGQING JIANGBEI INTERNATIONAL AIRPORT". It takes about 30 mins from airport to our factory.
Q: What's your city famous for? What else can we buy in your city?
A: Our city is famous of many mountains, bridges. And we are a car and motorcycle city, also we are a machinery manufacturing city, you also can buy other public furniture and office furniture from our city.
Q: How Iong will my chairs be warranted?
A: We will provide 5 years warranty to our original purchaser of new products from the date of purchase. Warranty is based upon material defect causing product failure within warranty. We will determine the course of action by supplying free parts, repairing or replacing the defective products.
