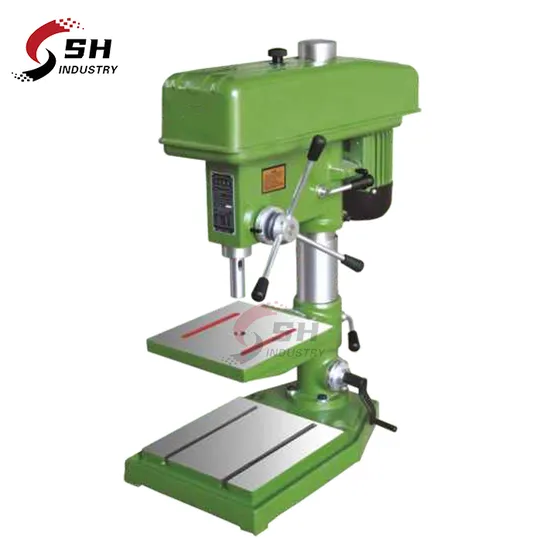

Industrial Type Bench Drill Press Machine Z4120 Small Bench Drilling Machine
| US$400.00-1,000.00 | 4 Pieces (MOQ) |
Basic Info.
Model NO.
Z4120
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Industrial Type Bench Drill Press Machine Z4120 Sm
Max. Drilling Capacity(mm)
12.7
Diameter of Column(mm)
70
Spindle Travel(mm
100
Spindle Taper(mm)
B16
Spindle Speeds Series(R/Min
5
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000
Packaging & Delivery
Package Size
83.00cm * 42.00cm * 92.00cm
Package Gross Weight
120.000kg
Product Description
Industrial Type Bench Drill Press Machine Z4120 Small Bench Drilling MachineProduct Description
Product description:
1. Both spindle head, column and base using high quality cast iron, strong and everlasting.
2. High precision with excellent feature, widely use at instrument and camera area.
Main technical specifications:
| Specifications | Z4112A/4116A | Z4116 | Z4120/Z4125 |
| Max. Drilling capacity(mm) | 12.7/16 | 16 | 20/25 |
| Diameter of column(mm) | 70 | 85 | 85 |
| Spindle travel(mm) | 100 | 125 | 125 |
| Distance spindle axis to column surface(mm) | 193 | 240 | 240 |
| Max distance spindle nose to worktable(mm) | 95 | 297 | 367 |
| Max. Distance spindle nose to worktable(mm) | 320 | 560 | 630 |
| Spindle taper(mm) | B16/MT2 | MT2 | MT2/MT3 |
| Spindle speeds range(r/min) | 400-4090 | 365-3150 | 365-3150 |
| Spindle speeds series(r/min) | 5 | 5 | 5 |
| Dimension of worktable surface(mm) | 250×250 | 280×300 | 280×300 |
| Dimension of base(mm) | 495×375 | 590×375 | 590×375 |
| Overall height(mm) | 850 | 1127 | 1127 |
| Motor(W) | 550/750 | 750 | 750/1100 |
| G.W/N.W(kg) | 120/102 | 165/140 | 165/140 |
| Packing size(cm) | 83×42×92 | 83×42×92 | 82×48×102 |
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
