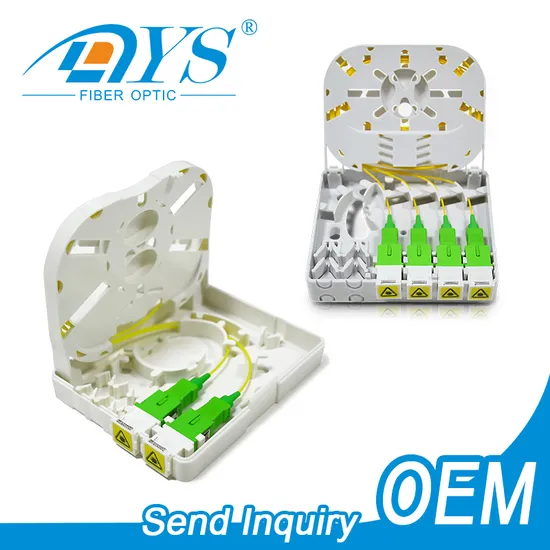

Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Ftta Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Cable Distribution Terminal Box

Product Description

Indoor/Outdoor 1 2 4 6 8 16 24 Cores/Ports ABS Fdb Nap SMC FTTH Solution Wall Mount Splitter Mini Plastic Box Fiber Optic/Optical Terminal Box Fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems, FTTH termination box is a small part of this system and provides a cost-effective solution for FTTH applications.
FTTH Termination Box available for the distribution and terminal connection for various kinds of optical fiber system, Some are used for indoor cabling and others are designed to install on outdoor pole or wall mount use.They are of light and compact design, Mainly used in fiber optic drop cable, pigtails or splitters cablings in residential buildings area. Most of them are applied to wall mounted type. The capacity is optional, such as small single fiber distribution box, 2 ports, 4 ports, 6 ports, 8 ports, 12 ports, 16 ports, 24 ports or even high density fiber distribution requirements.
APPLICATION
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Local area networks
Wide area networks
FEATURES
Small size and light weight for easy installation compact body.
Easy installations: Ready for wall mount - installation kits provided.
Lower layer for splicing .
Upper layer for cross-connecting and fiber distribution.
Fully stable adapter panel, no risk of movement.
Fiber can get in from bottom or side
FTTX Enclosure FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Applications
FTTH field
FTTA field
Trunk cable connecting
Prospecting or military communication
Features
High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
IP68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
IP68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.
Product Parameters

Dimensions(LxWxH)	200x120x85mm(4Core)	280x120x85mm(8Core)
Ingress Protection	IP68
Working Temperature	-40~85ºC
Cable Strength Member	Armoured or Non-armoured
Cable Type	Hybrid or non-hybrid
Round Cable OD	5.0mm to 14.0mm
Flat Cable Dimension	4.6x8.9mm
Cable Jacket Material	LSZH,PE or TPU
Bending Radius	20D
Cable Crush Resistance	200N/cm long term
Tensile Strength	1200N long term
UV Resistance	ISO 4892-3
Fire Protection Rating	UL94-V0
Number of PLC	1to 2pcs
Number of Fusion Protection Steeve	1to 24pcs

Configuration

	Standard	Optional
Input Hole	PG13.5	MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Output Hole	MINI SC,H connector	MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
Extend Hole	Closed	MINI SC,H connector (Optitap),MINI IPMPO,ODVA or Customized
