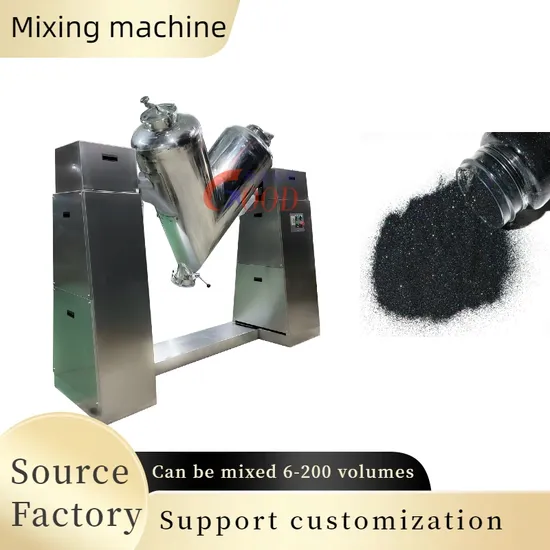

Small Commercial Laboratory Sugar Spice Dry Powder Universal Food Mixing Equipment Mixer Powder Machine

Product Description

Product Description
Scope of Application
The Powder Mixer is ingeniously crafted for the seamless and harmonious blending of dry powders or granular materials that boast excellent fluidity. Its applications are vast, spanning across realms such as medicine, food, feed, fertilizer, fuel, ore, and many other dynamic industries.
Medicine: Perfectly suited for the elegant blending of capsule granules, refined Chinese medicine flavorings, as well as powdered or granular Chinese medicines, providing versatility and precision.
Feed: Expertly designed to handle a wide range of animal feeds, whether it be nutrient-rich fish feed, wholesome poultry feed, diverse wild animal feed, or specialized bird feed mixes.
Food: Ideal for the meticulous mixing of essential condiments, potent additives, and vital vitamins, ensuring each blend is flawlessly uniform.
Fuel: Masterfully mixes various components of firecrackers, pyrotechnics, and other essential raw materials, achieving consistent and reliable results.
Ore: Capable of blending a variety of powdered or granular ores, ensuring uniformity and consistency for any application.
Product Introduction
The GD-V Series High-Efficiency Mixer is a state-of-the-art solution tailored for the pharmaceutical, food, chemical, plastic, cosmetics, medicine, ceramics, and metallurgy industries, among others.
This premier equipment exemplifies excellence in mixing both powder and granular materials. It draws on the innovative design features of leading international products, incorporating an asymmetrical dual-circle configuration that enhances mixing efficiency. As it rotates, the machine creates a layer-by-layer axial diffusion mixing, driven by the disparities in decomposition and combination potential energy. Simultaneously, it achieves lateral convection mixing due to the variances within the material plane against the cylinder's inner wall. Repeated execution of these sophisticated mixing actions ensures an exceptionally uniform and random mixing state. The machine's gravity mixing mechanism minimizes material pressure feed, enhances mixing uniformity, and thanks to its polished stainless steel construction, ensures a contamination-free process. This results in lower power consumption, superior efficiency, and effortless cleaning. Users can choose between manual or vacuum self-feeding for convenience, with discharge facilitated by a vacuum disc valve for a dust-free operation. The ease of cleaning and refueling cements its status as the new-generation ideal equipment for powder mixing.
Scope of application

Type number	GD-V-200	GD-V-300	GD-V-500
Production capacity (kg/ time)	100	200	300
Mixing time (min)	4-8	6-12	10-15
Full volume (m3)	0.2	0.4	0.6
Cylinder speed (r/min)	12	12	12
Hopper size	200L	400L	600L
Motor power (kw)	2.2	3	4
Overall dimension	1850*980*1880mm	2100X980X2250mm	2500*1220*2420
V-shaped barrel thickness	3.00mm	3.00mm	3.00mm
Total turning height (mm)	2000	2500	2650
Net weight	270	300	450
Gross weight	310	340	510

Live shooting machine
After Sales ServiceOur steadfast commitment to unparalleled quality is embodied in our comprehensive assurance plan. We proudly extend a robust one-year warranty complemented by lifetime technical support, which guarantees you peace of mind with unwavering assistance and steadfast support throughout your experience with our company.
Qualified Conditions of the Equipment: Upon setting up your cutting-edge machinery, we promise a seamless installation and thorough testing at our facility. Precisely aligned with your specifications, the packaging is carried out using your specified sample packs. For your approval, a comprehensive operational video of the equipment will be presented, or you are cordially invited to visit us for a firsthand inspection and verification of the equipment's exceptional qualification.
Packing: To ensure supreme protection during transit, the equipment is carefully encased in sturdy and long-lasting wooden cases, guaranteeing its safe delivery and meticulous handling.
Payment Term: 40% of the total amount is to be prepaid via T/T, with the remaining balance settled before shipment. This facilitates a smooth and transparent transaction process, ensuring clarity and convenience for our esteemed customers.
The Supplier assumes complete responsibility for acquiring all necessary materials required for the equipment's manufacturing. Upon completion and your approval, the balance payment becomes due. Subsequently, the equipment is meticulously packed and prepared for dispatch, underscoring our commitment to excellence.
Delivery: 25-35 days, starting from the day after the deposit payment, ensuring prompt and efficient fulfillment of your order. We prioritize punctuality to seamlessly meet your business needs.
Guangzhou City Good Machinery Equipment Co., Ltd. is a leader in the creation, production, and distribution of a wide range of packaging machines. Our products are meticulously designed to meet the diverse requirements of numerous industries. Experience the pinnacle of innovation and excellence with us today!FAQQ1: How to find a Packing machine suitable for my product?Tell us about your product details and packing requirements.
1. What product do you want to pack?
2. The weight of each bag?
3. Dimension of the bag(if you don't have, send us a sample or draft drawing)Q2: Can you send engineer service oversea?Yes, and you need to pay.
According to save your cost, we will send you a video of the installation of the machine.Q3. How can we make sure about the machine's quality after we paid?Before delivery, we will send you the pictures and videos of the machines.
And also you can visit our factory and check the machine.Q4. How can you guarantee I will get the machine if I paid?We have the business license and certificates. And you can pay by Made-IN-China Trade Assurance.Q5. Payment Method ?1. 30% deposit, 70% before shipping.
2. We accept T/T, Made-IN-China Trade assurance etc.Q6: Warranty1 years after we ship the machine. (Except the quick-wear parts)
