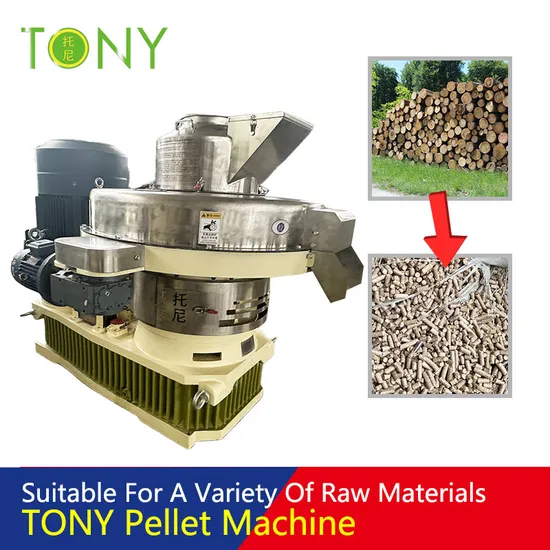

Sawdust Efb Straw Wood Pellet Machine 2-2.5ton/H with 132kw

Product Description

Sawdust EFB Straw Wood Pellet Machine 2-2.5ton/H with 132kw
Biomass pellet machine is a kind of agricultural and forestry waste (such as rice husk, straw, wood chips, straw, corn straw, wheat straw, cotton stalk, peanut shell, corncob, branches, leaves, sawdust, etc.) raw materials through the physical extrusion process into granular fuel equipment. Biomass pellet is a clean, efficient, safe and sustainable new fuel, which has a wide application prospect. Such as heating, industrial boilers, biomass power generation and so on.
The bearing chamber is made of forged tempered wear-resistant material, which is durable, with high gearbox output and low power consumption, with greater stability and lower maintenance rate.
The ring die of TONY pellet machine is vertical double layer, the upper and lower two layers are dual-use, improve the utilization rate, reduce the cost and improve the efficiency. Automatic timing oil lubrication is safer and more reliable
TONY Pellet machine mainly focuses on vertical ring die series models (such as TYJ-551/TYJ-760/TYJ-860), which adopts alloy steel press roller and ring die design

Working Principle
TONY pellet machine converts biomass feed stock into pellet fuel by mechanical extrusion. The process consists of feeding the raw material to the compression system, where it is compressed under high pressure and temperature, and then cooling to improve the hardness and stability of the particles. The core structure of the equipment includes frame, motor, press roller, ring mold, electric heating ring and other components. Some models adopt vertical centrifugal ring mold design, combining the advantages of traditional flat mold and ring mold to improve the pelleting efficiency. The control system can adjust parameters such as temperature and pressure to ensure particle quality and yield
1. Crushing process:
The raw material used to make wood pellets must be broken to a small size, and pelletizer users typically use a wood chipper to cut the wood into pieces 2.5 cm (0.98 in) or smaller
2. Fine crushing process:
Using a hammer mill, smaller pieces are crushed and cut into very small particles, reducing the size of the raw material to 5 mm (0.20 in). Some users will choose the pre-treated sawdust and can skip this step.
3. Drying process:
Drying the raw material to the proper moisture content is essential for the manufacture of high quality particles. Before granulation, it is necessary to ensure that the water content of the raw material is about 10%-20%. For a small batch of particles, the raw material can be left in the sun for at least 24 hours to dry naturally; For larger batches, a dryer can be used to dry the raw material to the desired moisture content.
4.Pelleting process:
The most commonly used equipment for granulation is the pellet machine. TONY's new 304 stainless steel vertical ring die pellet machine is extruded by ring die and press roll, the raw material is squeezed into the ring die hole to form, and constantly extruded to the outer end. When pelleting, it is necessary to ensure the uniform feed to prevent the blocking caused by too fast feed.
5. Cooling process:
When the molding particles leave the pellet machine, the particles themselves will be hot and release water vapor, so they must be cooled and dried, which can make them harder.
6. Packaging process:
Once the particles are cooled, they are transported to a packaging facility, packed and stored in a dry place.
PLEASE NOTE: Different pellet manufacturers may have different process details and quality control standards.
If the wood chips raw materials may contain stones or metal and other debris, if these debris into the pellet machine particle chamber, they are likely to lead to the pellet machine mold clogging or wear, so the raw materials into the wood pellet machine before screening iron impurities. If processing pellets with a variety of raw materials may need to use a drum or blender batch mixing adjustment. Finally, not all particles can be pressed well, during the pressing process, some particles will be scattered or broken, usually using the aperture of the same size as the wood particles of the filter shaking or screening to remove the deformed particles.
The above is the main processing process of wood pellets. If you have any questions, please contact TONY. Product Characteristics
1. The gear box adopts Zhejiang Huixin brand,TONY custom model to increase the heavy duty.The gear box is adopt with Zhejiang HUIXIN brand and TONY custom LOGO. Compared with the ordinary HUIXIN model, the internal gear is enlarges and thickness, which is more durable and taste.
2. The feed port, discharge shell, dust collection cover, lifting knife and internal cutting knife of the pellet machine are made of 304 stainless steel to avoid steam corrosion and rust during the formation of pellets and increase the durability of the equipment.
3. The upper discharge shells made of 304 stainless steel, which avoids the short comings of poor compression resistance and easy cracking caused by welding. arc profile appearance, to avoid operator injury, and arc profile tensile strength is stronger, not easy to damage.
4. The rotary support is installed under the discharge housing to avoid the traditional rotation support is easy to be corroded by steam at the top, the internal steel ball is easy to rust corrosion short comings.
5. The gear reducer is installed under the discharge housing, the power is stronger, and the gear reducer is not easy to damage. And adopt the Zhejiang HUIXIN brand hard tooth surface reducer, which is a brand of gear box, the torque resistance is stronger, and the rotation power is more sufficient.
6.304 stainless steel dust cover, steam resistance, corrosion resistance is stronger, and in this way, it is hard to be damaged.
7. The internal lifting knife is made of thickened stainless steel, which can effectively avoid high temperature and steam corrosion, increase the durability of the lifting knife, and the lifting effort is better, so that the raw materials inside the pellet machine are not easy to cover and pile.
8. Adjustable internal pellets cutter, can be adjusted according to customer needs to adjust the length of the cutter in order to adjust the length of the discharge pellets, simple and convenient adjustment.
Wide Range Of Application
Product Parameters

TONY Vertical Ring Die Pellet Machine TYJ551-132KW -304Stainless Type Model
Main Parts: 1.TONY new 304 stainless steel vertical ring die pellet machine TYJ551-132KW. 2. The rollers automatic lubrication system with galvanized grease storage barrel. 3. New cyclone and dust bag collect system, including fan and pip.e 4. Electrical control system for all the above equipment.
Brand	Model	Main Power	Lubrication Power	Dust Power	Capacity	Weight	Ring Die Inner Size	Machine Size
TONY	TYJ551-III-132	132KW+3KW	0.25KW	0.95KW	2-2.5TPH	5.5T	560MM	2364*1550*1705MM
TONY Vertical Ring Die Pellet Machine -304Stainless Type Models
NO	Model	Main Power	Lubrication Power	Dust Power	Capacity	Weight	Ring Die Inner Size	Machine Size
1	TYJ551-III-90	90KW+3KW	0.25KW	0.95KW	1-1.5TPH	5.2T	560MM	2364*1550*1705MM
2	TYJ551-III-110	110KW+3KW	0.25KW	0.95KW	1.5-2TPH	5.3T	560MM	2364*1550*1705MM
3	TYJ551-III-132	132KW+3KW	0.25KW	0.95KW	2-2.5TPH	5.5T	560MM	2364*1550*1705MM
4	TYJ760-III-160	160KW+4KW	0.25KW	0.95KW	2.5-3TPH	9T	760MM	2464*1750*2150MM
5	TYJ760-III-185	185KW+4KW	0.25KW	0.95KW	2.8-3.3TPH	9.2T	760MM	2564*1850*2150MM
6	TYJ760-III-200	200KW+4KW	0.25KW	0.95KW	3-3.5TPH	9.3T	760MM	2564*1850*2150MM
7	TYJ850-III-220	220KW+4KW	0.25KW	0.95KW	3-4TPH	11T	860MM	2664*1950*2150MM
8	TYJ860-III-250	250KW+4KW	0.25KW	0.95KW	3.5-4.5TPH	12T	860MM	2864*2150*2150MM
9	TYJ860-III-280	280KW+4KW	0.25KW	0.95KW	4-5TPH	13T	860MM	2864*2150*2150MM

Detailed Photos
TONY Pellet Machine Main Parts
Main Pellet Machine
1.SS304 type
2.Capacity:3-4T/hour (It depends on clients raw materials)
3.Power:220kw+3kw(Stripping Material Motors)
4.Motors can be changed to frequency motors according to clinets' demand
5.Use HUIXIN Brand TONY Custom-made bigger and heavier gearbox.
Automatic Lubrication System
1. Reduce maintenance costs: Through the automatic lubrication system, reduce the frequency and labor intensity of manual butter.
2. Improve machine efficiency: Avoid damage caused by lack of oil, so as to improve the continuous working ability of the machine.
3. Prolong the service life: Timely lubrication can not only protect the equipment components, but also effectively extend the service life of the spindle and bearing.
Cyclone and dust Collecter1. Efficient dust removal: Through the combination of cyclone dust collector and bag dust collector, the particles in the particle processing process can be effectively removed to achieve higher dust removal efficiency.2. Environmental protection and energy saving: reduced dust emissions, conducive to improving environmental quality,3. Equipment durability: The use of high-quality materials and advanced design, improve the durability and maintenance of the equipment
Electrical Cabinets1. We use well-known Chinese brand electrical components, we can also choose electrical appliances according to customer requirements. Please contact Tony for price difference.2.TONY has a one-click start function, to prevent customers do not know the start order and misoperation damage to the machine.3. The control panel has 3 sound and light alarms, if the special situation timely alarm
TONY Pellet Machine Spare Parts
Our Advantages
Company Profile
SHANDONG TONY ENVIRONMENTAL PROTECTION SCI-TECH CO.,LTD is an integrated enterprise specializing in developing, anufac-turing and international trade of pellet equipments for over 20 years. Main products are biomass ring die and flat die pellet machine,biomass pellet line, feed pellet machine, drying,crushing equipments,cooling screening, mixing and environmental protection equipments. TONY main processing areas are logs or furnature waste,agricultural crop stalks, animal feces and so on Looking to the future, we sincerely hope to establish a long-term reliable cooperation relationship with clientsall over the world!
In 1998, TONY regards honesty as basis, and fosters enterprise benchmark. It uses total investment of 120 million Yuan, has floor area of 30,000 square meters, 2 largeproduction factory areas and 6 workshops, equips foreign advanced equipment, andhas over 800 employees. The company has 8 departments, i.e., Engineering, Technical,SalesInternational Trade , Human Resource , Financial and After-sales Department. Ithas over 60 technical research and development persons and over 50 technicians. By relying on powerfu! product research and development strength, domestic toppingproduction equipment, perfect craftsmanship and scientific management,TONY winslong-term recognition from many customers, and obtains good business reputationand enterprise public praise.
FAQ
Q: What is a pellet mill/pellet machine?A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.
Q: What kind of materials can be pelletized?A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.
Q: What are pellets used for?A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.
Q: What size does my material need to be, to run through the pellet mill?A: All materials must be 5mm or less.
Q: What size pellets can I make?A: We have dies sizes from 4mm-12mm, depending on the machine or your raw materials.
Q: Do you ship worldwide?A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America, Ireland and Australia.
Q: If I purchase a pellet mill, will you show me how to make pellets?A: Yes, we do. We will instruct you how to use it via video or phone or engineer avaliable abroad if you need.
