WILDEN Pump & Engineering Company (WILDEN Pump & Engineering Company) developed the WILDEN pneumatic two-compartment diaphragm Pump in 1955. Its adaptability, safety and reliability are the representative products in the field of Pump technology. The unique performance of Wilden diaphragm pump makes Wilden pump suitable for other types of diaphragm pump can not adapt to the place. For more than 50 years, Wilton has been dedicated to meeting customer requirements, market knowledge, research and development, and solving pumping's toughest problems. Wilton designs, models, tests, and manufactures new products that meet market needs in an efficient and cost-effective way on the infrastructure.
The simple design of the Wilden Pneumatic diaphragm pump makes it easier to operate, with flow and pressure changes simply by adjusting the supply air pressure and volume. Because Wilton diaphragm pump vulnerable parts and the design is simple, durable, so it is easier to troubleshoot. Over the past 50 years, Wilton has been dedicated to technological improvements that make diaphragm pumps more reliable and easy to service. Single pump in the number of parts wearing parts in the industry is the least. This ensures that customers reduce direct maintenance costs and downtime costs during repair projects

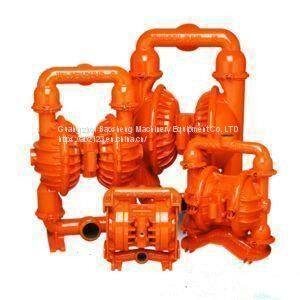

WILDEN pneumatic diaphragm pump
1. Suitable for the chemical industry in high, medium and low viscosity of all kinds of acid, alkali and corrosive fluid, benzene, ketones and esters and other solvents transport. Due to the use of compressed air as power, flow, pressure adjustment range is wide;
2. It is suitable for the transportation of all kinds of fluids in flammable and explosive environment, because the pneumatic diaphragm pump does not generate electric sparks, does not generate and accumulate heat in the work;
3. It is suitable for the transportation of all kinds of precious liquid, high harm, high corrosion and other dangerous materials in fine chemical industry, because the pneumatic diaphragm pump has no dynamic seal structure, completely separated from the outside world, no material leakage;
4. Suitable for harsh working conditions such as oil fields, mines, construction sites containing solid particles of wastewater, no blockage, no overload, no leakage worries;
5. It is suitable for conveying all kinds of materials in light and mobile occasions without foundation. Small footprint, simple and economical installation;
6. It is suitable for the transportation of high purity and high clean materials, because the pneumatic diaphragm pump does not need lubrication, no lubricant pollution of materials. Such as in pharmaceutical intermediates and products, laboratory pharmaceutical delivery;
7. It is suitable for fluid transportation with unstable chemical properties, because the pneumatic diaphragm pump has very low shear force on the material and does not destroy the material structure. Such as transport photosensitive materials, flocs, crystal liquid
8. With automatic batch pumping and metering functions;
9. It is suitable for feeding pump of plate and frame filter press.
10. Widely used in shipyards, T series Marine pneumatic diaphragm pump, used for conveying sewage oil, because the pneumatic diaphragm pump has strong self-priming ability and conveying materials with a certain viscosity, the maximum self-priming height can reach 7 meters
11, because the pneumatic diaphragm pump may pass certain particles, can idling self-priming, explosion-proof and other characteristics, widely used in coal
TZ2 series diameter: 1/2"
Common models: TZ2 / AAAAA/TNU/TF/ATF, TZ2 / AAAAA/TNU/TF/ATF / 0014, TZ2 / AAAAA/BNS/BN/ABN, TZ2 / AAAAA/BNS/BN/ABN / 0014, TZ2 / AAAAA/WFS/WF/AWF, TZ2 / A AAAA/WFS/WF/AWF / 0014, TZ2 / PPAAA/WFS/WF/KWF, TZ2 / PPAAA WFS/WF/KWF / 0014, TZ2 / AAAAA/NES/NE/ABN, TZ2 / AAAAA/NES/NE/ABN / 0014, TZ2 / P KAAA/WFS/WF/PWF, TZ2 / PKAAA/WFS/WF/PWF / 001
Maximum flow: 81GPM(306.6Lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 5 "(1.5 m)
Maximum particle size available: 1/16"(1.6mm)
Diaphragm material: butyl rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
TZ4 series Caliber: 1 1/2"
Common models: TZ4 / AAMAA/TNU/TF/ATF, TZ4 / AAMAA/TNU/TF/ATF / 0014, TZ4 / AAMAA/BNS/BN/ABN, TZ4 / AAMAA/BNS/BN/ABN / 0014, TZ4 / AAMAA/WFS/WF/AWF, TZ4 / A AMAA WFS/WF/AWF / 0014, TZ4 / PPMAA/WFS/WF/KWF, TZ4 PPMAA/WFS/WF/KWF / 0014, TZ4 / AAMAA/NES/NE/ABN, TZ4 / AAMAA/NES/NE/ABN / 0014, TZ4 / P KMAA WFS/WF/PWF, TZ4 / PKMAA WFS/WF/PWF / 0014, TZ4 / PKMAA/WFS/WF/PWF / 0400, TZ4 / PKMAA/WFS/WF/PWF / 0404, TZ4 / SSMAA TNU/TF/STF, TZ4 / S SMAA/TNU/TF/STF / 0014, TZ4 SSMAA/TNU/TF/STF / 0400, TZ4 / SSMAA/TNU/TF/STF / 0070
Maximum flow: 81GPM(306.6Lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 18 "' (5.5 m)
Maximum particle size available: 3/16"(4.76mm)
Diaphragm material: butyl rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
TZ8 series caliber: 2"
Common models: TZ8 / AAAAA/TNU/TF/ATF, TZ8 / AAAAA/TNU/TF/ATF / 0014, TZ8 / AAAAA/BNS/BN/ABN, TZ8 / AAAAA/BNS/BN/ABN / 0014, TZ8 / AAAAA/WFS/WF/AWF, TZ8 / A AAAA/WFS/WF/AWF / 0014, TZ8 / PPAAA/WFS/WF/KWF, TZ8 / PPAAA WFS/WF/KWF / 0014, TZ8 / AAAAA/NES/NE/ABN, TZ8 / AAAAA/NES/NE/ABN / 0014, TZ8 / P KAAA/WFS/WF/PWF, TZ8 / PKAAA/WFS/WF/PWF / 0014, TZ8 / PKAAA/WFS/WF/PWF / 0400, TZ8 / PKAAA/WFS/WF/PWF / 0404, TZ8 / SSAAA/TNU/TF/STF, TZ8 / S SAAA/TNU/TF/STF / 0014, TZ8 SSAAA/TNU/TF/STF / 0400, TZ8 / SSAAA/TNU/TF/STF / 0070
Maximum flow: 163GPM(617.0lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 21 '(6.35 m)
Maximum particle size available: 1/4"(6.35mm)
Diaphragm material: butadiene rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
TZ15 series caliber: 3"
Common models: TZ15 / AAAAA/TNU/TF/ATF, TZ15 / AAAAA TNU/TF/ATF / 0014, TZ15 / AAAAA/BNS/BN/ABN, TZ15 / AAAAA/BNS/BN/ABN / 0014, TZ15 / AAAAA/WFS/WF/AWF, TZ15 AAAAA/WFS/WF/AWF / 0014, TZ15 / PPAAA/WFS/WF/KWF, TZ15 / PPAAA/WFS/WF/KWF / 0014, TZ15 / AAAAA/NES/NE/ABN, TZ15 / AAAAA/NES/NE/ABN / 0014, TZ15 / PKAAA/WFS/WF/PWF, TZ15 / PKAAA WFS/WF/PWF / 0014, TZ15 / PKAAA/WFS/WF/PWF / 0400, TZ15 / PKAAA/WFS/WF/PWF / 0404, TZ15 / SSAAA/T NU/TF/STF, TZ15 / SSAAA/TNU/TF/STF / 0014, TZ15 / SSAAA/TNU/TF/STF / 0400, TZ15 / SSAAA/TNU/TF/STF / 0070
Maximum flow: 232GPM(878.1Lpm)
Maximum operating pressure: 125PSI(8.6BAR)
Liquid connection structure material: aluminum alloy, 316 stainless steel, cast iron, nickel alloy
Dry vacuum: 21 '(6.35 m)
Maximum particle size available: 3/8"(9.5mm)
Diaphragm material: butadiene rubber, neoprene rubber, ternary rubber, polyurethane, SaniflexTM, TEflon PTFE, Wil_FlexTM, fluorinated rubber
