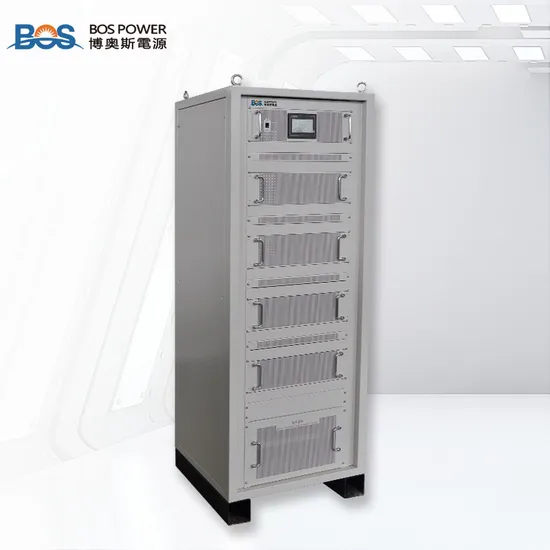

Three-Level DC to DC Converters 50kw 60kw 100kw DC Power Boost and Buck Converters

Product Description

Product Description
Product Overview
The BIDCDC series DC power supply is a bidirectional charging and discharging device that adopts full digital control. Its DC characteristics have high precision and high dynamic response, and the output adjustment range is wide.Product features:
1.Three-level core technology, high efficiency, small ripple and high precision;
2.The first-level topology is bidirectionally transformed, with excellent performance and low failure rate;
3.Modular parallel technology combined with intelligent sleep technology to achieve high-efficiency energy storage conversion;
4.Perfect protection measures, and have the ability to actively monitor faults and protection;
5.Automatic disengagement of faulty modules reduces system maintenance time.Application industry
Applied in industries such as industrial energy conservation, IT server power supply, new energy storage support, and rail transit energy recovery. Product Parameters
1.

Device model	BIDCDC -240kW	BIDCDC -360kW	BIDCDC -480kW	BIDCDC -600kW
Peak power	264kW	396kW	528kW	660kW
Number of parallel machines	Two parallel machines	Three parallel machines	Four parallel machines	Five parallel machines
Working mode	Continuous work
Overall machine efficiency	≥98% (Rated power)
High voltage side parameters
Power(kW)	240kW	360kW	480kW	600kW
DC input voltage	150V-1500V
Current range	0-160A	0-320A	0-480A	0-640A
Stable voltage accuracy	<1%F. S
Steady current accuracy	<1%F. S
DC voltage ripple	<2%F. S
Low voltage side parameters
Power(kW)	240kW	360kW	480kW	600kW
DC output voltage	100-1400V(Rated 800V with 0V starting function)
Current range	0-300A	0-450A	0-600A	0-750A
Stable voltage accuracy	<1%F. S
Steady current accuracy	<1%F. S
DC voltage ripple	<2%F. S
System parameters
System power supply	DC self powered/optional:Operating conditions: DC<250V ,Optional configuration requiredAC220V3A
Control mode	Constant voltage/constant current/constant power or MPPT controller function
Protection features	Overcurrent, short circuit, overheating, overload, DC overvoltage and undervoltage, etc
Noise	<68dB
Ingress protection	IP20
Cooling method	Forced air cooling
Number of parallel machines available	10
Allow ambient temperature	-25~50°C
Allow relative humidity	0-95% (No condensation)
Allow maximum altitude	≤5000m (More than 2000m derating use)
Display & Communication
Display	Touchscreen display
Communication interface	RS485(standard) Ethernet (standard)CAN(optional)
Size(W*D*H) (mm)	650*650*1500		650*650*1800

2.

Device model	BIDCDC -10KW	BIDCDC -20KW	BIDCDC -30KW	BIDCDC -50KW	BIDCDC -60KW	BIDCDC -80KW	BIDCDC -100KW	BIDCDC -120KW
Peak power	11kW	22kW	33kW	55kW	66kW	88kW	110kW	132kW
Working mode	Continuous work
Overall machine efficiency	≥98% (Rated power)
High voltage side parameters
Power(kW)	10kW	20kW	30kW	50kW	60kW	80kW	100kW	120kW
DC input voltage	50V-850V(Rated 500V)				150V-1500V(Rated 1500V)
Current range	0-20A	0-40A	0-60A	0-100A	0-40A	0-54	0-67A	0-80A
Stable voltage accuracy	<1%F. S
Steady current accuracy	<1%F. S
DC voltage ripple	<2%F. S
Low voltage side parameters
Power(kW)	10kW	20kW	30kW	50kW	60kW	80kW	100kW	120kW
DC output voltage	0V-800V(Equipped with 0V startup function)				100-1400V(Rated 800V Equipped with 0V startup function)
Current range	0-40A	0-80A	0-120A	0-150A	0-75A	0-100A	0-125A	0-150A
Stable voltage accuracy	<1%F. S
Steady current accuracy	<1%F. S
DC voltage ripple	<2%F. S
System parameters
System power supply	Single module standard:DC self powered/optional:Operating conditions DC<250V ,Optional configuration required AC220V3A
Control mode	Constant voltage/constant current/constant power or MPPT controller function
Protection features	Overcurrent, short circuit, overheating, overload, DC overvoltage and undervoltage, etc
Noise	<68dB
Ingress protection	IP20
Cooling method	Forced air cooling
Number of parallel machines available	10
Allow ambient temperature	-25~50°C
Allow relative humidity	0-95% (No condensation)
Allow maximum altitude	≤5000m (More than 2000m derating use)
Display & Communication
Display	Touchscreen display
Communication interface	RS485(standard) Ethernet(standard)CAN(optional)
Size(W*D*H) (mm)	482*500*222mm

3.

Device model

BIDCDC- 400kW

BIDCDC - 640kW

BIDCDC- 960kW

BIDCDC -1200kW

BIDCDC -1600kW

BIDCDC -2400kW

BIDCDC -400kW

BIDCDC - 640kW

BIDCDC - 960kW

BIDCDC -1200kW

BIDCDC -1600kW

BIDCDC -2400kW

Peak power

440kW

704kW

1056kW

1320kW

1760kW

2640kW

440kW

704kW

1056kW

1320kW

1760kW

2640kW

Working mode

Continuous work

Overall machine efficiency

≥98% (Rated power)

High voltage side parameters

Power(kW)

400kW

640kW

960kW

1200kW

1600kW

2400kW

400kW

640kW

960kW

1200kW

1600kW

2400kW

DC input voltage

50V-850V

150V-1500V

Current range

0-470A

0-753A

0-1130A

0-1412A

0-1883A

0-2823A

0-267A

0-427A

0-640A

0-800A

0-1067A

0-1600A

Stable voltage accuracy

<1%F. S

Steady current accuracy

<1%F. S

DC voltage ripple

<2%F. S

Low voltage side parameters

Power(kW)

400kW

640kW

960kW

1200kW

1600kW

2400kW

400kW

640kW

960kW

1200kW

1600kW

2400kW

DC output voltage

24V-800V(Equipped with 0V startup function)

100-1400V(Equipped with 0V startup function)

Current range

0-500A

0-800A

0-1200A

0-1500A

0-2000A

0-3000A

0-500A

0-800A

0-1200A

0-1500A

0-2000A

0-3000A

Stable voltage accuracy

<1%F. S

Steady current accuracy

<1%F. S

DC voltage ripple

<2%F. S

System parameters

System power supply

AC220V 10A

Control mode

Constant voltage/constant current/constant power or MPPT controller function

Protection features

Overcurrent, short circuit, overheating, overload, DC overvoltage and undervoltage, etc

Noise

<72dB

Ingress protection

IP20

Cooling method

Forced air cooling

Number of parallel machines available

-25~50°C

Allow ambient temperature

0-95% (No condensation)

Allow relative humidity

≤5000m (More than 2000m derating use)

Display & Communication

Display

Touchscreen display

Communication interface

RS485(standard) Ethernet(standard)CAN(optional)

Size(W*D*H) (mm)

650*650 *1500

1000*1000 *1900

1800*1000*1900

650*650 *1500

1000*1000 *1900

1800*1000*1900

If other specifications are required, customization can be made according to requirements.Company Profile
Shandong BOS Energy Technology Co., Ltd. (referred to as BOS) is a high-tech enterprise in Shandong Province specializing in the research and development, manufacturing, sales, and service of power equipment. For more than 20 years, BOS has focused on power electronic conversion technology. Committed to providing customers with the best system solutions, our products include AC/DC test power supplies, AC/DC power supplies, shore power, and new energy product lines. The production base covering an area of 20000 square meters, built in 2010, has an annual output value of over 100 million yuan. BOS is one of the most influential "leading enterprises" among domestic high-power power supply manufacturers.
BOS has multiple national patents in the field of power supply and has passed international ISO9001 quality system certification, ISO14001 environmental management system certification, and ISO45001 occupational health and safety management system certification; And has successively won honors such as specialized and innovative, gazelle enterprise, and high-tech enterprise, as well as awards such as "Best Supplier of Small and Medium Power Bidirectional Energy Storage Inverters"; Establishing an energy conversion and energy storage engineering technology center; It is a member unit of the China Power Association, a member unit of the Port Science and Technology Committee, an executive director unit of the China Renewable Energy Association, and a qualified supplier for procurement by the Chinese Academy of Sciences.
Certifications
On Site Filming Of The Project
Packaging & Shipping
Our Advantages
FAQ
1.Q:Are you manufacturers?
--Yes, we have an independent factory covering an area of over 20000 square meters.
2. Q:Can the power of the product be customized?
--Yes, we can customize products according to your needs.
3.Q: Is there any guarantee for after-sales service after purchasing products from your store?
--Yes,during the warranty period, we will regularly visit customers and collect feedback information to continuously improve the quality of our company's products and services.
4.Q:How is your production management and quality control?
--Our company's production process for all products follows ISO9001, with professional operators controlling each production step. Quality inspectors also conduct regular inspections, and after each product undergoes performance testing, a comprehensive quality inspection will be conducted.
