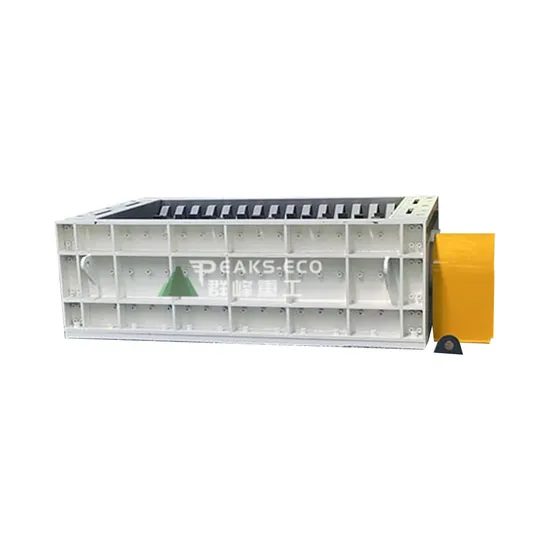

High Efficirnt Crushing Machine Shredder for Crush Wood

Product Description

Product Description
Qunfeng brand twin-shaft coarse shredder is designed to be sturdy and durable for the household waste ,urban waste,building waste,bulky waste and so on . It can crush the waste materials with higher efficiency and productivity and low noise. Our shredder has the compact structure ,strong core,hard alloy blades, 40Cr axis with automatic running by the function of hydraulic system and control system.
Product Features
Modular Design Hard Alloy Blades Production Batch Type Customized Blades Quadruple sealing Exchangeable Fixed Blades Modular design Technical parameters of the shredder:

MODEL	QFDP20	QFDP30	QFDP40	QFDP50
Motor Power (kw )	37+37	55+55	75+75	90+90/110+110
Shredding Chamber Size ( Axb )( mm )	1000/1210X800	1210/1510X1000	1500/1800x1200	1800/2025x1400
Blades Thickness [ mm )	30/40	40/50/60	60/80	80/100
Rotary Speed [ rpm )	5-15	5-15	5-15	5-15
Overall Dimension ( LxWxH )( mm )	3450X1500X2700	4500/2460X3580	5800/2900X3600	6000/3600X3570

Application of the Product
The shredder machine can easily pre-crush: plastic sheets; electronic waste; aluminum cans; metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes); plastic(plastic bottles or canisters); waste household appliances; paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material); scrap (components, subassemblies; consumables) Our Advantages
Host system: It adopts European version double-cavity host, with good particle size of finished products, large crushing ratio, heavy-duty rotor, and greatly increased production capacity.
Frequency conversion system: Equipped with a frequency conversion system to achieve low current starting, prevent motor overload, run smoothly and reduce energy consumption.
Frequency conversion feeding technology: Automatically adjusts the feeding speed to keep the host working at full load and increase output.
Hydraulic system: Hydraulically adjusts the clearance between the impact plate and the plate hammer.
Others: Wireless remote control, easy to operate and safer. Optional broken and screen integrated (BRS) model with enlarged double-layer screen body.
Company Profile
Established in 2005 with a registered capital of 1.2 billion RMB,Shadong Qunfeng Heavy Industry Technology Co.,Ltd is the only high-tech enterprise engaging in solid waste pre-treatment, waste transfer station system and weighing system with independent capability in research and manufacturing.
Qunfeng carries out business activity at the domestic and overseas markets with a total areas of 500 Mu production bases in Hainan,Xinjiang, Guanxi,ect.There are about 350 staff of which among 25 medium and senior titles and 55 technical backbones.In 2018,Huaxia Qingshan(Beijing) Ecological Environment Technology Co.,Ltd was established in Beijing which achieved a all round strategic cooperation with the world-class environment protection industries and domestic environmental dragon enterprises and assist the state-owned companies to develop the global environmental industry on the basis of researching new high tech product and solid waste treatment solution.
Qunfeng cultivates talents and provides technical research in manufacturing equipment and integrated waste treatment in cooperation with Beijing Institute of Technology, Qingdao University of Technology .From 2019, we gradually reached a consensus on cooperation with German willibald(Garden Waste treatment),Netherlands Walair(waste treatment),European Kiverco(waste treatment and contractor),Finland wolma and Taiwan Brisort to provide the cutting-edge technical support for domestic waste treatment system.In 2020, we concluded the strategic agreements with China Railway Construction Corporation,China stage Construction Engineering,China Communications Construction Company Limited, Shanghai Municipal Design Institute,Power construction corporation of china,China sinosteel,China Three Gorges Corporation,Capital Environment Holdings Limited and China metallurgical group corporation in the joint development of environmental industry to invigorate a new powerful support for domestic and overseas environmental protection industry .
Currently,our business scopes refers to two products: solid waste comprehensive treatment and waste transfer system.Solid waste comprehensive treatment consists of household waste/organic waste(food waste)/building waste/recycling waste/dry slag/garden waste/anaerobic treatment modules.Waste transfer system contains large vertical transfer station and small and medium intelligent waste transfer station .There is up to 70 project cases of waste treatment,20 systems of large transfer station and more than 100 small and medium waste transfer station at home and abroad,Qunfeng won unanimous acceptance from customers by strong production ability and excellent technology and heart to heart service.
As a high-tech enterprise, Qunfeng creatively integrates artificial intelligence technology into waste sorting industry to recognize different kind of wastes in order to realize the high efficient recycling and correct control function in quality and achieve the objective of replacement of traditional industry by artificial intelligence technology.
FAQ
1.Are You Trading Company or Factory?
We are manufacturer. We provide you reasonable Factory Price and good After-sale Service!
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
4. why should you buy from us not from other suppliers?
Basing on more than 30 years production and service experience , our company has developed to be one of the most successful enterprises in the compression equipment, weighing apparatus equipment , waste sorting equipment , enviroment protection equipment
5.How can I get a quotation?
Pls tell us the machine you need, including quantity, raw materials and other requirements.
