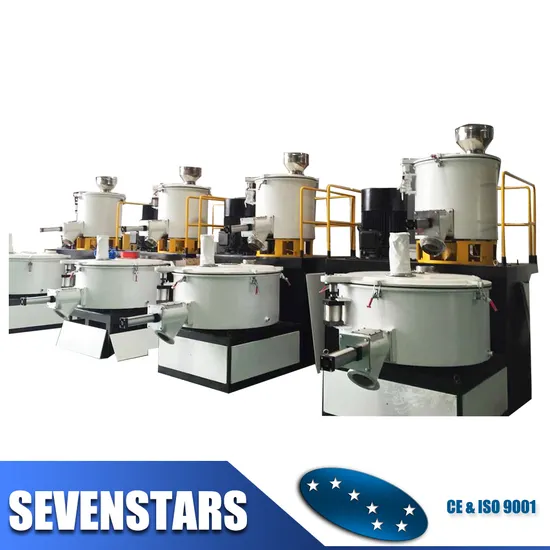

Plastic High Speed PVC Powder Turbo Cooling and Heating Mixer Unit
| US$8,500.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SRL-Z for PVC Powder Mixer
Application Area
Engineering & Construction
Certification
CE, ISO
Condition
New
Mixing Drum Shape
Circular Groove
Stirring Type
Gravity
Working
High Speed Mixer
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Standard Package
Specification
SRL-Z
Trademark
Sevenstars Machinery
Origin
Zhangjiagang, Jiangsu, China
HS Code
8479820090
Production Capacity
300kg/H-1000kg/H
Product Description
Description of PVC Mixer:
1. Mixed materials are made by negative pressure mixed principle
2. The electrical instruments are all well-known imported appliances with PLC programmable control
3. High degree of automation and speed mixing
4. The blade was made by stainless steel pressure and passed the static and dynamic balance test
5. Especially the coolant blade ued abroad advaned spiral mixing structure, the whole container has no dead angle, cooling speed and discharging clean.
6. Large volume
7. The PVC mixer is for mixing PVC powder, CACO3 and other addictives. This equipment is widely used in PVC pipe and profile production.
8. The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.
9. We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.
Main Technical Parameters ( Vertical Cooler) for your reference:
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective Volume (L) | 65/130 | 150/320 | 200/360 | 375/650 | 600/1024 |
| Rotating Speed (RPM) | 650/1300-180 | 475/950-87 | 475/950-87 | 430/860-60 | 357/714-50 |
| Mixing time (Min.) | 8-10 | 8-10 | 8-12 | 8-10 | 8-12 |
| Motor power (KW) | 14/22-7.5 | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 |
| Overall dimension(mm) | 2500*2000*2200 | 4580*2240*2470 | 4800*2640*2480 | 5600*3000*3100 | 6230*4230*4480 |
| Weight(kg) | 2500 | 3600 | 4500 | 5800 | 8300 |
