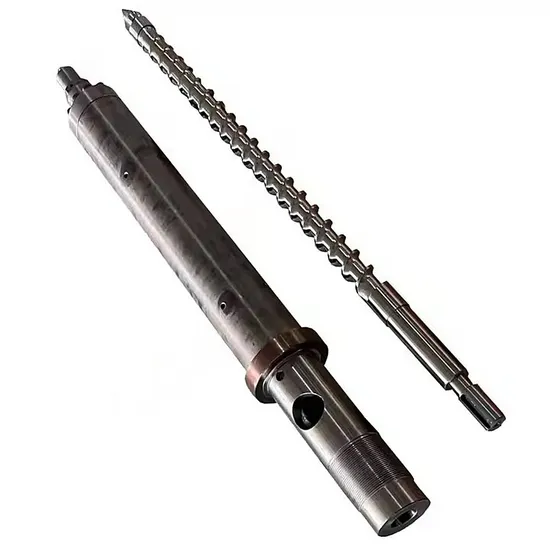

High Shot Bimetallic Plastic Process Alloy Layer Screw and Barrel for Injection Molding Mixed Glass Fiber

Product Description

Product Description

Injection molding screw barrel for injection/screw and barrel ★PP, PE, ABS, PS, PC, PMMA, PVC commonly new or used plastic series. ★PA6, PA66 nylon series, for airbag cloth, waste silk, fishing net silk, cloth head, wood shaving, safety rope, PP non-woven fabrics,or mixed with glass fiber.
★PP PE film, woven bag and other material series.
★Screw can be matched with different heads, and barrel can be matched with different nozzles.
★Screw tip ( Screw head ), check valve, ring, barrel head, and flange, nozzle.
★Screw can be bimetallic treatment with Ni-60 alloy powder by spray or PTA technology.
★ MaterialBased materials include 42CrMo( AISI 4140 ), 38CrMoAlA(1.8509), 31CrMoV9(1.8519), 34CrAlNi7(1.8550), 40Cr, 45 Steel,
Stainless Steel(SS 304, SS 416 and so on), SKD11, SKD61,DC53,SKH55. If other materials are possible, please contact us for further details. ★ Heat Treatment
Including: quenching & tempering, nitridation, chrome-plated, bimetallic coating,tungsten carbide, through hardened.

item	Injection molding screw barrel for injection/screw and barrel
Place of Origin	Zhejiang,China
Condition	New
Material	PP, PE, PVC,ABS, PET, PA, PC,PMMA
Spare Parts Type	screw and barrel
Video outgoing-inspection	Provided
Warranty	12 months
Key Selling Points	Long Operating Life
Local Service Location	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Romania
After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Conventional material	38CrMoAIA, SKD61, SACM645, GH113, 42CrMo(AISI4140)
Nitrided Hardness	HV900-1050
Nitrided Depth	0.5-0.9mm
Quenching Hardness	HRC55-62
Nitrided Brittleness	Less than grade II
SURFACE ROUGHNESS	Ra 0.4
Screw straightness	0.015mm/m
Chromium plating layer hardness	>=950HV
Chromeplate Thickness	0.05-0.18mm
Alloy depth	1.5-3.0mm

Product Parameters

Item	Bimetallic Screw
Alloy Type	Ni60	Colmonoy 56	Colmonoy 83
Alloy Components	Ni+Cr+Fe+Si (Ni:65, Cr:17, Fe:15, Si:5)	Ni+Cr+Si+Fe (Ni: 68, Cr:18, Si:5, Fe:5)	Ni+Wc+Cr+C (Ni:40, Wc:34, Cr:20, C:2)
Anti-Wearing Level	***	***	****
Anti-Corrosion Level	****	****	****
Alloy Thickness	1.5~3.0mm	1.5~3.0mm	1.5~3.0mm
Hardness	HRC 56~62	HRC 50~56	HRC 48~52
Applied Glass Fiber	Under 20%	Under 10%	Without GF
Range of Workable Length	Any length as customer required
Based Steel Used	38CrMoAlA(1.8509), 34CrAlNi7(1.8550), 31CrMoV9(1.8519)
**** Excellent; *** Very Good; **Good

Item		Bimetallic Barrel
Alloy Components/Type		Fe+Ni+Cr+B (Fe:65, Ni:14, Cr8, B:3.5)	Ni+Cr+Co+B	Ni+Cr+Co+V+B	Ni+Wc+Cr+B (Ni:50, Wc:15~35,Cr:6~8, B:2.5~3.2)
Wearing Resistance		***	**	***	****
Corrosion Resistance		**	***	***	***
Alloy Thickness		1.5-3mm	1.5~2mm	1.5~2mm	1.5~2mm
Hardness		HRC 55~62	HRC 50~58	HRC 55~60	HRC 58~65
Temperature Range		≤400	≤400	≤450	≤600
Coefficient Thermal	RT~250ºC	11.0x10-6	11.0x10-6	11.5x10-6	11.0x10-6
Expansion(/ºC)	RT~400ºC	11.4x10-6	11.4x10-6	12.4x10-6	12x10-6
Range of Workable Length		450mm~3000mm
Base Steel Vastly Used		40Cr, 42CrMo
**** Excellent; *** Very Good; **Good

Detailed Photos
Packaging & Shipping
FAQ
1. who are we?We are based in Zhejiang, China, start from 2006.2. how can we guarantee quality?Always a pre-production drawings before production;Multiple inspections will be conducted during the production process,and final Inspection before shipment;3.what can you buy from us?Screw barrel includes Injection screw barrel,Extruder screw barrel,Conical twin screw barrel,Parallel twin screw barrel,Granulation screw barrel,Squeezing screw barrel and so on.4. why should you buy from us not from other suppliers?We have many years of design and production experience, designing the most suitable screw structure for different raw materials and products to achieve the best use effect.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXWAccepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,Arabic,French,Russian,Korean.
