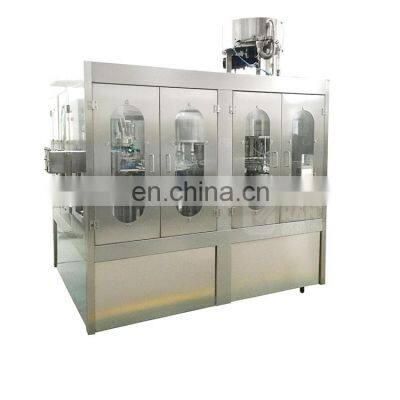

Automatic glass bottle aluminum lid water filling packing processing machine

Product Description

Product Description
Product DescriptionGlass bottle water filling for glass bottle integrates the function of rinsing, filling and capping together. Based on advanced technology overseas, and designed according to room filling processing demands of non-carbonated water and alcoholic drinks to be one of the advanced room filling production line.This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.We are the water filling machine manufacturers in China.Water washing filling capping machine: Main technical parameter:ModelWashing head no.Filling head no.Capping head no.Production capacity(500ml)Overall size(mm)Weight(kg)Power of main motor(kw)8-8-38831500-20002050*1450*210020001.814-12-5141253000-40002400*1760*235025002.016-12-6161265000-60002300*1600*240028002.218-18-6181867000-80002650*1900*240030003.524-24-8242488000-100002900*2100*240035004.532-32-1032321012500-150003100*2100*265043005.540-40-1040401015000-180004350*2880*320060005.550-50-1250501220000-230004850*3800*320075007.5Detailed ImagesTransmission:Adopt screw feeding bottles, different bottle diameter with different feeding bottle screw.Main transmission adopting frequency conversion motor will be sent to decelerate box through stair belt, and then lead the whole machine running.The bottles sent by enter bottle conveyor belt will divided into a fixed interval of one-way,and the bottle inverted by enter bottle clamp, then the bottles can be sent to filling machine’s enter bottle star-wheel. The bottle by lift-up motion is fixed on the bottom of filling parts.Rinsing Part:Rotary rinser is one of the key components, which is installed on the clamp, media distributor and other components. When the figure of the rotary bearing rotation, driven turret and the other components are installed on the rotating simultaneously, slewing bearing lubrication in order to concentrate lubrication. Filling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part:The capper is made up of hopper, slide way, upper capper, lower capper, rise and fall parts, and preventing turning upright stanchion.The requirements of aluminum cap:Only when the height and diameter all accord with crown cap’s standard, the capper’s normal running can be guaranteed. The crown cap should be stored in the dry room.Company information Workshop detail Our team Our exhibition Project cases FAQ
