Konecranes European Electric Chain Hoist of Cranes with Manual Trolley for Lifting

Product Description

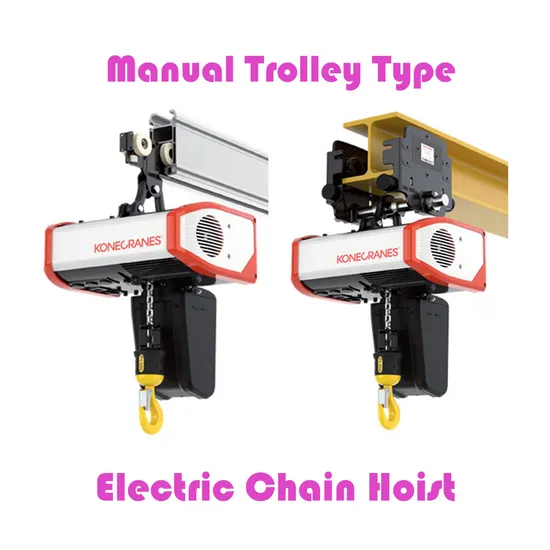

Konecranes Electric Chain Hoist with Manual Trolley
The Konecranes C-series chain hoist is the new generation of electric hoists of Konecranes and also a flagship product. Its features are as follows:

Design and Structure Compact and Lightweight: It is compact in design, occupying little space, which is convenient for installation and operation. The universal bracket design is conducive to quick and safe installation, and there are various hanging methods. The core components are of high quality. The gears are lubrication-free for life, and the motor is specially designed for lifting.
Performance Wide Lifting Capacity Range: Ranging from 63 kg to 5000 kg, it can meet the lifting requirements of different scales. There are various lifting speeds, with double-speed or frequency conversion control. The duty cycle can reach 60%, enabling continuous operation. It can work within the temperature range of -20°C to +40°C, and can reach even higher temperatures under special configurations.

Safety Assurance Reliable Braking System: It is equipped with a self-adjusting brake that can quickly stop in emergency situations. There are also a friction clutch for overload protection and limit switches to ensure safety.
Operation and Control Convenient Operation: The operation is simple and it can be controlled by a pendant control or a remote control. The hook is ergonomically designed with an anti-slip coating.

Main Models

Lifting Weight	Model	working level Fem/Iso	Lifting speed m/min	number of chains
125kg	C02 P 08 1 012 6	M6	8/2	1
250kg	C02 P 08 1 025 5	M5	8/2	1
500kg	C05 P 08 1 050 5	M5	8/2	1
1 ton	C10 P 08 1 100 5	M5	8/2	1
2 ton	C10 P 04 2 200 5	M5	4/1	2
2.5 ton	C10 P 04 2 250 4	M4	4/1	2
