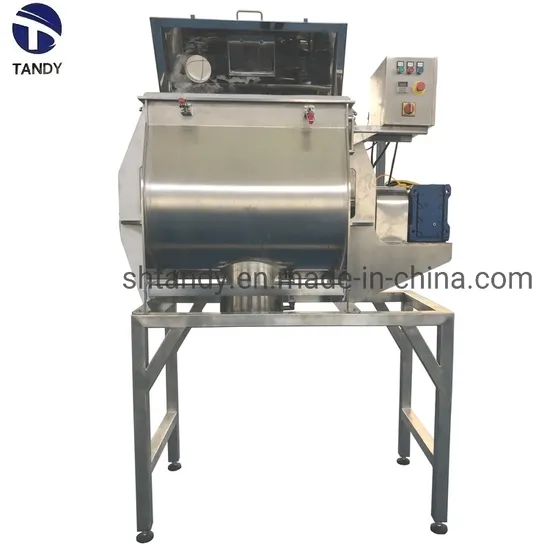

10 Cube Feet Particle Blending Blade Types Mixer Machine
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TDS-300
Application
Granules, Powder
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Customized
Main Material
Stainless Steel
Mixing Capacity
250-500L
Safety Features
Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Speed Control
Variable Speed
Speed Range
40-49 R/min
Stirring Type
Gravity
Temperature Control
Without Heating
Working
High Speed Mixer
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating Type
Continuous Operating
Warranty
1 Year
Transport Package
Wooden Case
Specification
300L
Trademark
TANDY
Origin
Shanghai China
HS Code
8479
Production Capacity
60PCS/Month
Product Description
10 Cube Feet Particle Blending Blade Types Mixer MachineReference parameter :
| Model no. | Effective volume(L) | Loading coefficient | Power(KW) | Rotate speed(R/min) | Size(mm) | Weight (kg) |
| TDS-200 | 200 | 0.6-0.8 | 4.0 | 53 | 1800X900X1110 | 430 |
| TDS-300 | 300 | 0.6-0.8 | 5.5 | 53 | 1900X1000X1250 | 680 |
| TDS-500 | 500 | 0.6-0.8 | 7.5 | 45 | 2050X1200X1250 | 890 |
| TDS-1000 | 1000 | 0.6-0.8 | 11.0 | 45 | 2500X1200X1350 | 1360 |
| TDS-1500 | 1500 | 0.6-0.8 | 15.0 | 39 | 2950X1350X1400 | 1780 |
| TDS-2000 | 2000 | 0.6-0.8 | 18.5 | 39 | 3330X1500X1650 | 2260 |
| TDS-3000 | 3000 | 0.6-0.8 | 30.0 | 31 | 3650X1880X1950 | 3150 |
| Pls feel free to contact us if you need more technical parameters! | ||||||
FAQ 1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Euope , American , Australia , Asia , Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Paddle mixer description:
The single shaft paddle mixer is suitable use for powder and powder ,granule and granule or add a little liquid to mixing , it is widely applied in nuts ,beans ,fee or other kinds of granule material ,inside of the machine have different angle of blade thrown up ther material thus cross mixing. Features of paddle mixer :
1. Rotate reversely and throw materials to different angles , mixing time 1-3mm .
2. Compact design and rotated shafts be filled with hopper , mixing uniformity up to 99% .
3. Only 2-5mm gap between shafts and wall , open-type discharging hole.
4. Patent design and ensure the rotating axie & discharing hole w/o leakage.
5. Full weld and polishing process for mixing hopper, w/o any fastening piece like screw , nut.
6. The whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.
