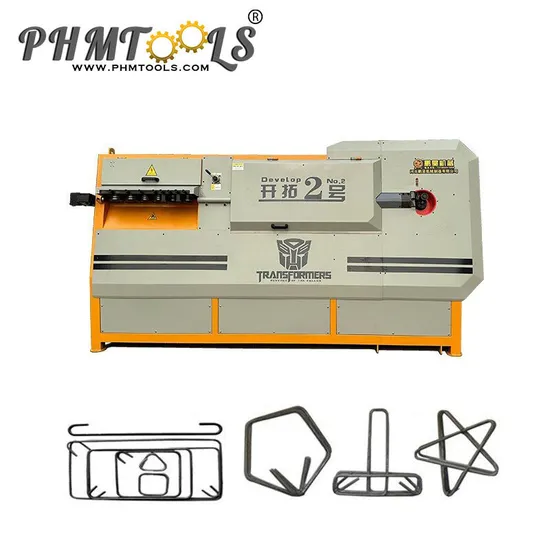

6-16mm Fully Automatic CNC Rebar Bending Machine Stirrup Bender Stirrup Hoop Bending Machine Steel Bar Bending Machine
Basic Info.
Model NO.
Develop No. 2
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Max Bending Angle (°)
±180
Max Bending Speed (°/S)
1200
Total Power (Kw)
20.6(Not Include Air Compressor )
Productivity (Double Wire)
2200-2400(for Example 200*200mm Square
Bending Direction
Single Direction
Transport Package
Wooden Cases
Specification
3980*1000*1900
Origin
Cn Hb
HS Code
8462269000
Production Capacity
1000 Set/Year
Product Description
Detailed PhotosProduct Description
| Automatic wire feeding system (PLC)Mechanical cutting | ||
| Single wire bending (mm) | 4-12 Round bar | 4-10 Deformed bar |
| Double wire bending (mm) | 4-10 Round bar | 4-8 Deformed bar |
| Max bending angle (°) | 180 | |
| Max traction speed (m/min) | 110 | |
| Max bending speed (°/s) | 1200 | |
| Angle precision(°) | ±1 | |
| Cut length precision(mm) | ±1 | |
| Average power consumption (kw/h) | 5 | |
| Total power (kw) | 14.2(not include compressor ) | |
| Dimension(mm)(l*w*h) | 3280*1000*1700 | |
| Weight(kg) | 1350 | |
| Productivity (Double wire)(pcs/h) | 1800-2200(For example 200*200mm square ) | |
| Certification | CE/ISO9001:2008 | |
AUTOMATIC STIRRUP BENDING MACHINE 1.Automatic wire feeding system ( CNC ). 2.Large storage capacity can save 500 processing geometric graphics, high degree automation. 3.Automatic double wire intake system, high processing efficiency. 4. High power feeding motor to ensure bending bar accuracy. 5.The intelligent fault identification alarm system maintenance more convenient. 6. Aerodynamic design observation door, easy adjustment and maintenance, and more security and fast. 7.Heavyduty design line planes, equipped with a brake and buffer device can prevent chaotic lines caused by downtime. 8. High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs. 9. Touch-screen console, easy to operate, and more fast. Product Parameters
