Haichen 110 Tons Injection Molding Machine for Manufacturing Ballpoint Pen

Product Description

Product Description
Pen Making Machine
Haichen is a ballpoint pen injection molding machine manufacturer
We can provide you with professional advice and solutions, including the selection of ballpoint pen machines and pen molds. Our pen injection molding machines have helped many factories succeed through efficient production.
There are many types of pens. Like ballpoint pens, DF pens, gel pens, Novelty Pens… Normally all of those pens' plastic parts, are made by a pen injection molding machine.

Detailed Photos
The Required Equipment 1.HAICHEN Injection Molding Machine
110 ton-150 ton
2.Mould
8cav-32cav
3.Auxiliary
Auto loaders/Chiller/Dryer/Crusher
4. Robot/conveyor

Product Parameters

INTERNATIONAL CLASS NO		HCK110
INJECTION UNIT
		A	B	C
Screw diameter	mm	32	36	40
Screw L/D ratio	L/D	22.5	20.0	18.0
Shot volume(theoretical)	cm3	145	183	226
Injiection weight(ps)	g	132	167	206
	oz	4.7	5.9	7.3
Injection pressure	Bar	2393	1890	1531
Injection rate	cm3/s	81	102	126
Plasticizing capacity	g/s	8	12	19
Screw speed (Max.)	r/min	220
CLAMPING UNIT
Clamping force	kN	1100
Space between tie bars(W×H)	mm	410*360
Platens size	mm	590*540
Opening stroke	mm	350
Min.Mold height	mm	170
Max.Mold height	mm	420
Distance between platens(daylight	mm	770
Ejector stroke	mm	110
Ejector force	kN	40
OTHERS
Systerm pressure	Bar	175
Pump motor	KW	13
Heating power	kW	6.3
Oiltank cubage	L	150
Machine dimension(L×W×H)	m	4.6*1.2*1.9
Machine weight	t	3.6

Company Profile
Haichen Machine is a global manufacturer of high precision plastic injection molding machines. We are not just an injection molding machine manufacturer, also supply the solution for plastic production.
Our headquarters, centrally located in Ningbo and is an injection molding machine production factory that integrates production, sales, and after-sales service. Haichen machine is fully equipped to support sales, service, mold trials, customer training, maintenance… Our service teams are staffed with experienced, professional service technicians who are fully committed to supporting the success and profitability of our customers.
Haichen injection molding machine, ranging from 30 tons to 3000 tons, with more than 20 years of experience. Haichen machine generally stocks over 100 injection molding machines for quickly delivery.
Our Advantages
Packaging & Shipping
FAQ
Q: Parts of a pen

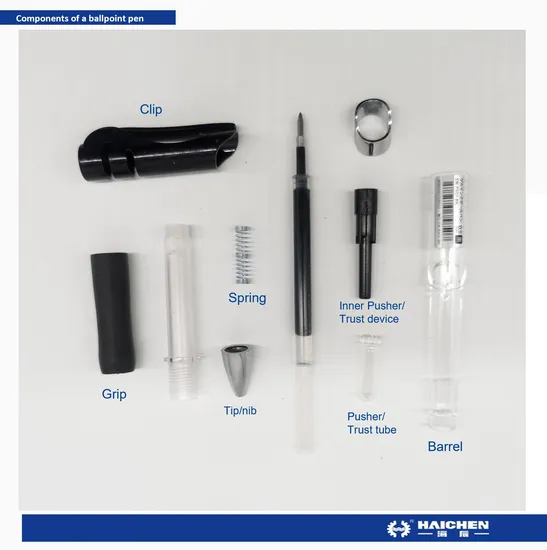

A: The parts of a pen like pen barrel, pen clip, pen tip, thrust device, thrust tube, spring, reservoir, socket, ball & ink.
Q: 5 steps to manufacture a ballpoint pen
A: Step 1:Raw material preparation for all of the pen components.
Step 2: Ballpoint pens part manufacturing process by injection molding.
Step 3:Pen refill production.
Step 4:Assembling the pens process
Step 5: Testing and Quality Inspection.
Q: The injection molding production process of ballpoint pens using PS raw materials
A: The production process of the injection molding machine using PS material in the manufacturing process of the ballpoint pen is as follows 5 steps:
Material preparation,Drying,Injection molding,Molding process and Post-processing
Q: What machines are used to make pens?
A: What machines are used to make pens? The answer is 3 different machines:
Pen injection molding machine,Ink filling machine,Automatic assembling machine
