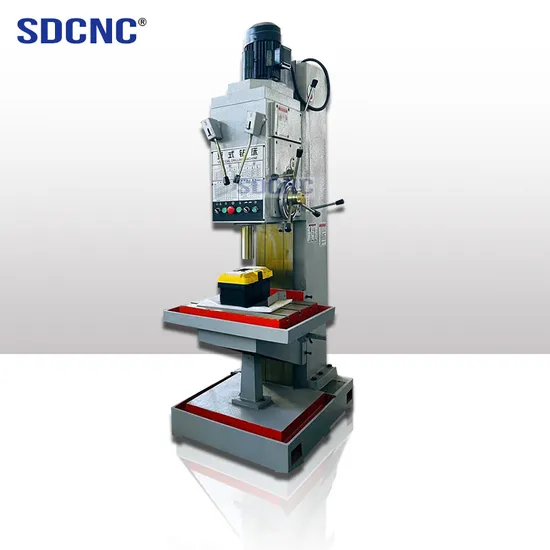

Z5163 CNC Metal Hole Vertical Automatic Arm Bench Radial Drilling Magnetic Machine

Product Description

Product Parameters
Product main technical specifications:

Specifications	Z5163
Max drilling diameter	63mm
Max feed resistance	30000N
Max. spindle allowable torque	800N.m
Spindle taper	Morse NO.5
Distance from spindle axis to column guideway	375mm
Spindle travel	250mm
Spindle box travel	250mm
Spindle speed	40-570r/min 9 steps
The amount of feed(mm/rev)	0.1-0.78r/min 6 steps
Working table stroke	300mm
Working table surface size	650×550mm
Distance from spindle nose to table surface	800mm
Main motor power	5.5kw
Cooling pump flow	25L/min
Overall dimension	1452×965×2787mm
N/W	2800kg

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces
CNC machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical
lathe, CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other
CNC products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial
drilling machine, vertical drill Bed and other machine tool
