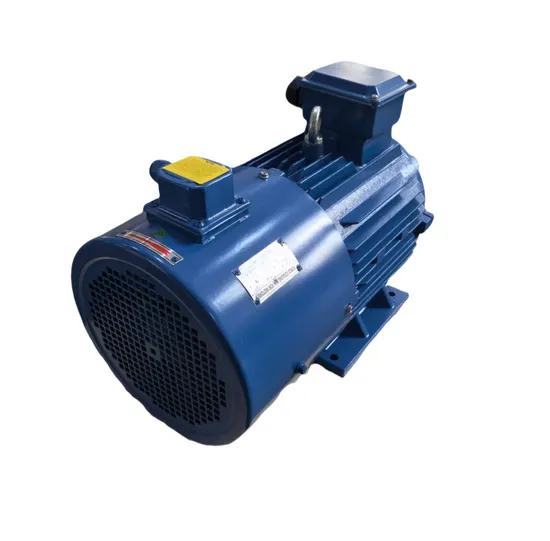

Variable Frequency AC Electric Motor for Speed Control High-Efficiency 15kw 4p YVF-160L-4

Product Description

Variable frequency speed regulation three-phase asynchronous motors(VSD)The Variable frequency Speed regulation Three phase Asynchronous Motors(VSD) are special three - phase asynchronous motors powered by variable - frequency speed - regulating devices. The system composed of these motors and the variable - frequency devices can achieve stepless speed regulation, thereby achieving the goals of energy conservation and automated control.
The VSD series motors feature a squirrel - cage structure and use special Class B and Class C anti - corona enameled wires. This effectively prevents inter - turn short - circuits in the windings caused by the peak voltage generated by the frequency converter, ensuring more reliable operation and convenient maintenance. The motors are equipped with independent axial - flow fans to ensure good cooling performance at different rotational speeds.Detailed Photos
Product Parameters
B3 (IC416) Mounting And Overall Dimensions

Frame size	poles	Mounting dimensions(mm)										Overall dimensions(mm)
		A	B	C	D	E	F	G	H	K	DH	AB	AC	HD	L
71	2,4,6	112	90	45	14	30	5	11	71	7	M5*13	136	139	197	314
80	2,4,6,8	125	100	50	19	40	6	15.5	80	10	M6*16	158	157	214	365
90S	2,4,6,8	140	100	56	24	50	8	20	90	10	M8*20	180	176	233	385
90L	2,4,6,8	140	125	56	24	50	8	20	90	10	M8*20	180	176	233	409
100L	2,4,6,8	160	140	63	28	60	8	24	100	12	M10*20	198	196	260	465
112M	2,4,6,8	190	140	70	28	60	8	24	112	12	M10*25	230	220	292	488
132S	2,4,6,8	216	140	89	38	80	10	33	132	12	M12*30	262	258	331	564
132M	2,4,6,8	216	178	89	38	80	10	33	132	12	M12*30	262	258	331	598
160M	2,4,6,8	254	210	108	42	110	12	37	160	15	M16*36	313	330	414	718
160L	2,4,6,8	254	254	108	42	110	12	37	160	15	M16*36	313	330	414	762
180M	2,4,6,8	279	241	121	48	110	14	42.5	180	15	M16*36	345	380	447	826
180L	2,4,6,8	279	279	121	48	110	14	42.5	180	15	M16*36	345	380	447	864
200L	2,4,6,8	318	305	133	55	110	16	49	200	19	M20*42	386	420	505	905
225S	4,6,8	356	286	149	60	140	18	53	225	19	M20*40	430	470	545	949
225M	2	356	311	149	55	110	16	49	225	19	M20*40	430	470	545	944
	4,6,8	356	311	149	60	140	18	53	225	19	M20*40	430	470	545	971
250M	2	406	349	168	60	140	18	53	250	24	M20*40	490	510	615	1055
	4,6,8	406	349	168	65	140	18	58	250	24	M20*42	490	510	615	1055
280S	2	457	368	190	65	140	18	58	280	24	M20*40	532	580	670	1150
	4,6,8	457	368	190	75	140	20	67.5	280	24	M20*40	532	580	670	1150
280M	2	457	419	190	65	140	18	58	280	24	M20*40	532	580	670	1191
	4,6,8	457	419	190	75	140	20	67.5	280	24	M20*40	532	580	670	1191
315S	2	508	406	216	65	140	18	58	315	28	M20*42	635	645	845	1380
	4,6,8	508	406	216	80	170	22	71	315	28	M20*40	635	645	845	1410
315M	2	508	457	216	65	140	18	58	315	28	M20*40	635	645	845	1490
	4,6,8	508	457	216	80	170	22	71	315	28	M20*40	635	645	845	1520
315L	2	508	508	216	65	140	18	58	315	28	M20*40	635	645	845	1490
	4,6,8	508	508	216	80	170	22	71	315	28	M20*42	635	645	845	1520
355M	2	610	560	254	75	140	20	67.5	355	28	M20*40	735	735	1000	1845
	4,6,8	610	560	254	95	170	25	86	355	28	M20*40	735	735	1000	1875
355L	2	610	630	254	75	140	20	67.5	355	28	M20*40	735	735	1000	1845
	4,6,8	610	630	254	95	170	25	86	355	28	M20*40	735	735	1000	1875

Applications
Suitable for construction machinery, mining equipment, large agricultural equipment fans, pumps, compressors and other industrial equipmentOur Service
Company Profile

Test Center

Our new laboratory has a strong experimental capacity, including three-phase AC asynchronous motor, variable frequency adjustment motor, AC synchronous motor, single-phase asynchronous motor. Power range :0.25-500KW, frequency :0-500Hz. Can test all motor performance items, high precision and simple control. Exhibition
Certifications
FAQ
Q Are you a factory or trading company?A We are manufacturer located in FuZhou,Fujian,China Q Do we make special custom motors?A Yes sure Q What is your delivery time?A Normally, we can deliver the goods within one month. If we need to expedite the delivery, we can deliver the goods within 7-15 days Q What's our minimum order quantity?A Minimum order for 1 set Q How long is our shelf life?A 12 months Q Can I get a lower price if I order large quantities?A Yes, cheaper prices with more bigger quantity orders. Q How can you guarantee the production quality ?A We checked strictly before sending, will produce free of charge if it is quality problem from our side
