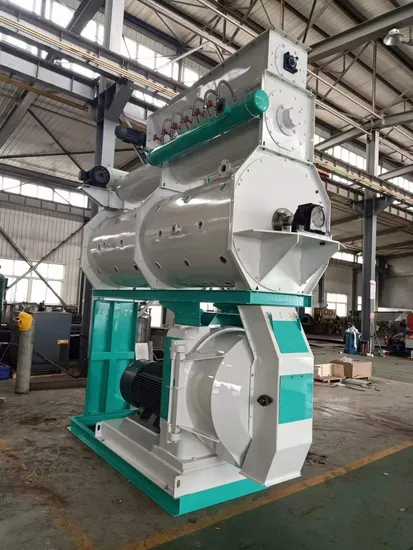

Ring Die Fish Feed Granulator Machinery for Aquarium

Product Description

Product Features
1. Drive with gear box with high efficiency.
2. Extended stainless steel conditioner with long conditioning and cooking time.
3. The bearings and oil seal at the main drive are imported, lubrication of bearing assured by reliable oil return.
4. We can equip the machine with ordinary modulator, thermal insulation case modulator or double shaft differential speeed modulator according to customer`s requirements.
5. With advanced technology, reasonable structurre, belt drive and stepless speed regulate feeding with high output and little power consumption.
6. Set with safety interlock mechamism and magnetic iron separation device.
7. Ring die with good material, high precision die hole, various specifications, better adaptability and durable.
8. Which can add right amount of molasses, oil and other materials.
Specifications

Modle	Capacity(ton/h)	Inner Diameter(mm)	Roller Quantity	Power (kw)	Forming Rate
LXL250E	0.3-1	250	2	18.5	>95%
LXL250D	0.5-1.5	250	2	22	>95%
LXL304	2-4	304	2	30	>95%
LXL350	3-8	350	2	55	>95%
LXL420	4-12	420	2	90/110	>95%
LXL508	10-20	508	2	132/160	>95%

Poultry feed pellet machine Ring die pellet mill are mainly suitable for the middle and small scale feed factory pellet feed making, and may use in the mechanization raising chickens, duck, pigs and various poultries farm feed produce. Also can used for aquatic feed making, such as fish, shrimp and so on. Die and Roller of poultry feed mill have long service life. Main drive adopts high accurate gear drive with higher efficiency, steady running and low noise. Ring die pellet mill is fitted with deironing and overload protection device and protection on the machine is fully considered during the operation. High precision gear dribing is adopted, resulting in high driving efficiency and stable working. The imported bearing and oil seal are used for key positions of drive of the machine so that the machine has long service life and low noise. Ring die pellet mill can be fitted with single-layer, multiple -layer jacket conditioners or double-shaft differential conditioner so as to meet the different requrements of producing high grade livestock and poultry feed and aquafeed.
Application scope:
Designed and produced specifically for feed processing plants, large and medium-sized farms
Machine Structure:
More details of Pellet mill: The surface of feed pellet is hard and smooth, easy to store, the pressure of steam in pelleting can also eliminate bacteria and virus, reduce livestock and poultry diseases
