Magnetically Stirred Photochemical Reactor

Product Description

Product Description

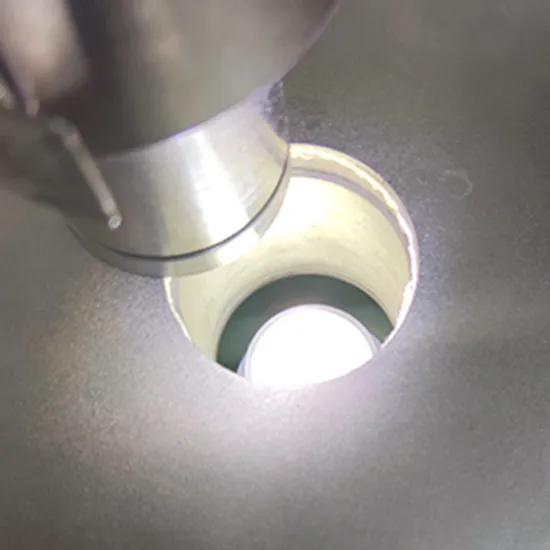

Detailed Photos
Top-entry soft-drive magnetic coupling mechanical stirring.
Adopt unique quick-opening snap ring type seal structure;.
Equipped with liquid sampling valve (gas inlet), gas release valve.
Newly upgraded AI artificial intelligence logic PID algorithm, suitable for a variety of chemical tests.
Composite high-temperature sealing gasket, A-type double-line seal;.
Highly sensitive temperature monitor, PID programme temperature controller.
Equipped with identification control system, automatic storage and export function of experimental data;.
Real-time online curve display of pressure, temperature, speed and torque.
Standard configuration of safety protection and ultra-high temperature sound and light alarm device.
The kettle can be taken out directly to cool down the reactor body, hich is convenient for maintenance. Technical parameters of LC-D500 bottom illuminated photochemical reactor

Volume	500ml, each kettle is equipped with a sampling tube and filter, and each kettle is equipped with a needle valve and a three-way ball valve
Type	Window Sapphire (Round Window) Bottom Photo Tank 50ml
Working temperature	from room temperature to 200 ºC (kettle temperature)
Heating method	Heating mode module electric heating system
Heating power	1.2KW
Mixing speed	from 0 rpm to 1200 rpm stepless speed regulation
Mixing method	paddle mechanical mixing
Working pressure	of 10MPa, pressure gauge range of 0-16MPa, rupture valve range of 12.5MPa
Material quality	The structural material is 316L stainless steel, and the window is Sapphire sapphire crystal
MRSC-LC-C control system V1.06	The top of adopts mechanical stirring, touch screen control system, online curve display of temperature, pressure, stirring speed, alarm and fault records, historical record search, data collection and USB export function
	Constant temperature timing or working timing
	Positive and negative bidirectional stirring Sound and light alarm configuration

Company Profile
Our Advantages
Packaging & Shipping
FAQ
Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all SENLONG products are supplied with a warranty of 12 Months from the date of shipment.
Q5:Can we visit your factory?
A5: Welcome visit our factory.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)
