Fully Automatic Facial Tissue Machine Production Line with Plastic Bagging Warping

Product Description

Introduction
This is full automatic facial tissue production line from the folding machine to bundling machine without worker operate machine, include facial tissue folding machine with auto transfer, Log saw cutting machine, singel bag packing machine and full automatic tissue bundling machine.

Main Feature
This facial tissue machine adopts large-screen real-color man-color man-machine interface operation, PLC programming control, and one-key switch between Chinese and English for independent language environment operation; The automatic stacking system adopts "Siemens" Full servo drive control (Three sets of servos) to ensure accurate stacking, The stacking speed is stable 8-10; The main machine and the unwinding paper rack are all frequency conversion and independent drive synchronization; the international advanced technology such as electromechanical and optical integration control. Automatically detect and adjust each movement of the facial tissue machine, with a complete fault information prompt system, so that the entire equipment reaches the best working condition.
Adopt log saw cutting machine can precise control the specification of the finished tissue.
High speed single bag packing machine can pack tissue more square and improve the productivity
Full automatic tissue bundling machine can pack 3, 4, 5, 6, 8, 10 bags single bag tissue into bundle


Parameters

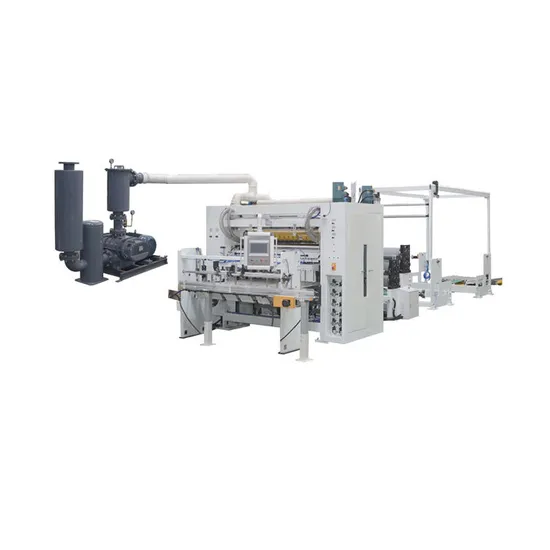

4T-10T Facial tissue folding machine with auto transfer

Model	4T	5T	6T	7T	8T	9T	10T
Max. width of raw paper	900mm	1050mm	1300mm	1450mm	1750mm	1950mm	2050mm
Edge embossing	4 front sets and 4 rear sets	5 front sets and 5 rear sets	6 front sets and 6 rear sets	7 front sets and 7 rear sets	8 front sets and 8 rear sets	9 front sets and 9 rear sets	10 front sets and 10 rear sets
Vacuum system	11kw	15kw	18.5kw	18.5kw	22kw	22kw	22kw
Main unit power	4kw	5.5kw	5.5kw	7.5kw	7.5kw	7.5kw	11kw
Machine size(mm)	6000*2100*1900	6000*2300*1900	6000*2500*1900	6000*2600*1900	6000*3000*1900	6000*3100*1900	600*3200*1900
Machine weight	4500kg	5500kg	6500kg	7500kg	8000kg	8300kg	8500kg
Folding speed	500-1000sheets/min/row
Transfer speed	8-12 log/min
Transfer system	Ormon programming
Dia. of Raw paper	Ø1500mm
Core Inner Diameter	Ø76.2mm
Air pressure	>4kg/cm²(User supplied)
Optional
Full embossing	Steel to Rubber/Paper/Steel Glue lamination unit
Back stands	2/4/6/8/10
Slitting cutter	4 front sets and 4 rear sets	5 front sets and 5 rear sets	6 front sets and 6 rear sets	7 front sets and 7 rear sets	8 front sets and 8 rear sets	9 front sets and 9 rear sets	10 front sets and 10 rear sets

Facial tissue log saw cutting machine
Size of tissue	(30-300)*(80-120)*(15-150)mm	Speed	<=200 cuts/min
Feeding way	Servo driver	Cutting way	360o Continuous rotation cut
Head N trail	15-25mm	Precision	<1mm
Sharpen the blade	Auto (set on touch screen)	Dia. of Blade	Ø610mm
Air pressure	0.5 Mpa(Supply by buy)	Voltage	380V 50/60Hz 3-Phase
Total power	6.5Kw	Machine size	1550*1400*1700mm
Weigth	About 1600Kg

Full automatic facial tissue packing machine

Machine size(mm)	3500L*6250W*1800H	Air pressure(Mpa)	0.5-0.6(Customer supplied)
Packing size(mm)	(95-210)L*(85-105)W*(20-100)H	Power supply	380V 50/60Hz(Three phase)
Packing speed(bags/min)	MY-110D: 25-110 MY-160: 25-180 MY-200: 25-220	Machine weight	About 3200Kg
Total Power(Kw)	6.8	Packing material	CPP PE and so on Double-sides heat-sealing film

Facial tissue automatic bundling machine

Machine size	3349*4725*1557mm	Machine weight	About 3500Kg
Production size	(180-450)*(80*400)*(80-105)	Packingi Material	CPP, PE..Etc Bag premade bag
Type packing	3,4,5,6,8,10 bags/bundle	Bag type	40mm distance two handle hole and with exhaust holes
Bag storage	<=500Pcs	Thickness of bag	>=0.05mm
Speed	0-20 bundles/min	Voltage	380V 50/60Hz
Total power	17Kw	Air pressure	0.5-0.7Mpa(User supplied)
Feeding mode	Full automatic 2 lanes feeding	production type	Facial tissue

Company information
Goodpaper machinery was a Manufacturer and trade integration enterprise, Our factory in Shishan Town, Foshan City where near Guangzhou city. Workshop more than 4000 square meter.
Goodpaper machinery was specialized in Tissue paper converting equipment, Included facial tissue, napkin tissue, pocket tissue, Toilet tissue, hand towel tissue, kitchen tissue and so on. Rewinding machine, folding machine, cutting machine, packing machine and carton sealing machine.
Goodpaper machinery is partnering with our customers, understanding their needs providing innovative technological solutions. Swiftness in adapting to the quickly changing paper machine and tissue packaging machine market trends and high leave of creativity and innovation is why customers chose us.
If you need any further assistance, please contact us.


Workshop photos


FAQ

Q: How does your factory do regarding quality control?
A: Quality is the most important. We will double QC for machine parts and whole machine before install and delivery. We have passed the GMP.

Q: What kind of after sales service will you offer to us?
A: Our factory has a strong team for it and has 1 year warranty for all machines, for the first year, If any quality problem, we will sent you the new part by free, after first year, we will provide after-sale service and technical support for the machine in lifetime, and support you with easy damaged parts with manufacturing cost.

Q: How to operate and maintain the machine?
A: First, We will provide a professional and detailed user guide to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.

Q:What information does the quotation need to provide?
A: Specification of raw materials, the type of mechanical equipment and product specifications.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock or it is 45 days if the goods are not in stock, it is according to quantity.

Q: Can you offer raw materials?
A: Our company can suggest the good supplier of raw material for all kinds of tissue paper making machines for you or offer you directly after you make a order to us.
