4-20m Electric Battery Height Load Portable Fully Automatic Hydraulic Stationary Mobile Worktable Wheeled Man Aerial Work Platform Lifting Table Scissor Lift
Basic Info.
Model NO.
6M Scissor Lift
Application
Workshop Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Lifting Height (M)
6
Table Size (M)
2.10X0.83
Cylinder
80*1
Power (Kw)
1.1
Voltage (V)
220/380
Weight (Kg)
880
Guardrail Height
1.1m
Transport Package
Standard Export Package or as Your Required
Specification
Scissor Lift Platform
Trademark
zhongmei
Origin
Shandong, China
Production Capacity
10 Sets Per Month
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 30.00cm
Package Gross Weight
20.000kg
Product Description
Hot SalesProduct Description
Introduction Of 6M Factory Warehouse Mobile Track Sissor Lift Carrier Movable Hydraulic Elevation Movable Lifts Table Scissors Platform With CE
Self propelled small Scissor Lift is equipped with two kinds of motors, hydraulic lifting motor and electric driving motor. Hydraulic lifting motor supply power to lift up and down smoothly. Electric driving motor supply power to move forward,back off, turn around.zmwm21
Product Parameters
Parameter Of 6M Factory Warehouse Mobile Track Sissor Lift Carrier Movable Hydraulic Elevation Movable Lifts Table Scissors Platform With CE
| Load | Lifting Height (M) | Table Size (M) | Dimensions (M) | Cylinder | Power (KW) | Voltage (V) | Weight (KG) | Guardrail Height | Tire Size |
| 500KG | 4 | 2.10x0.83 | 2.25x0.95x1.10 | 80*1 | 1.1 | 220/380 | 800 | 1.1M | 400-8 |
| 6 | 2.10x0.83 | 2.25x0.95x1.20 | 80*1 | 1.1 | 220/380 | 880 | 1.1M | 400-8 | |
| 7 | 2.10x0.83 | 2.25x0.95x1.28 | 80*1 | 1.1 | 220/380 | 970 | 1.1M | 400-8 | |
| 8 | 2.10x0.93 | 2.25x1.06x1.38 | 80*2 | 1.5 | 220/380 | 1050 | 1.1M | 400-8 | |
| 9 | 2.10x0.93 | 2.25x1.06x1.50 | 80*2 | 1.5 | 220/380 | 1165 | 1.1M | 400-8 | |
| 10 | 2.10x1.23 | 2.25x1.35x1.53 | 70*4 | 2.2 | 380 | 1360 | 1.1M | 500-8 | |
| 11 | 2.10x1.23 | 2.25x1.35x1.65 | 70*4 | 2.2 | 380 | 1400 | 1.1M | 500-8 | |
| 12 | 2.55x1.53 | 2.80x1.67x1.75 | 80*4 | 3.0 | 380 | 2260 | 1.1M | 500-8 | |
| 14 | 2.81x1.53 | 3.07x1.73x1.81 | 80*4 | 3.0 | 380 | 2400 | 1.1M | 500-8 | |
| 16 | 2.81x1.60 | 3.07x1.81x2.08 | 90*4 | 3.0 | 380 | 3500 | 1.1M | 700-9 | |
| 18 | 3.07x1.60 | 3.32x1.81x2.08 | 90*4 | 3.0 | 380 | 3900 | 1.1M | 700-9 |

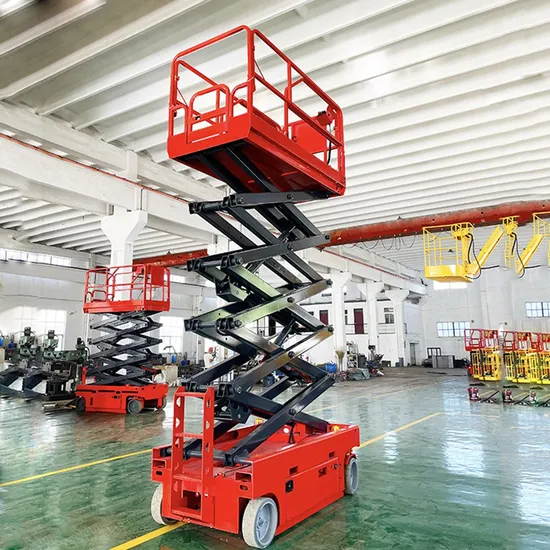

Detailed Photos
Photos of 6M Factory Warehouse Mobile Track Sissor Lift Carrier Movable Hydraulic Elevation Movable Lifts Table Scissors Platform With CE
