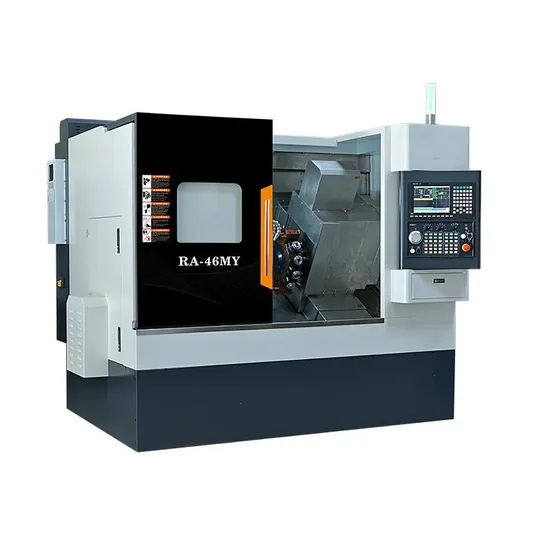

High Precision Speed and Durability Hot Sale, High-Efficiency, High-Speed CNC Milling, Drilling, and Turning Slant Bed Lathe Machine

Product Description

High Precision Speed and Durability Hot Sale, High-Efficiency, High-Speed CNC Milling, Drilling, and Turning Slant Bed Lathe Machine
Product Description

Processing Capability			Unit	RA-46MY
Processing Capability	Maximum bed swivel diameter		mm	Φ560
	Maximum machining diameter		mm	Φ520
	Maximum machining diameter on the tool holder		mm	Φ128
	Maximum processing length		mm	Φ320
	Maximum bar through-hole diameter		mm	46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	270
		Z-Axis	mm	400
		Y-Axis	mm	±35
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
		Y-Axis	mm	10
	Rail Type		/	Linear track 35 (ball)
Turret	Number of tool positions		pcs	BMT40-12T with Y-axis
	OD tool holder specifications		mm	20×20
	I.D. Tool Holder Specifications		mm	Φ25

• High-precision machining: Our machine tool is engineered for exceptional precision, adeptly meeting the finest cutting demands. It ensures impeccable internal and external precision, perfect roundness, and faultless coaxiality.
• Multiple processes: This versatile machine proficiently executes a wide array of intricate procedures in one go. It handles diverse radial and axial cutting, drilling, tapping, hobbing, scribing, drawing, and more with unparalleled efficiency.
• Clamping and positioning the workpiece:
The gripper's foremost duty is to securely hold the workpiece in place, maintaining its fixed position throughout the machining process.
With precision positioning, the gripper ensures the relative alignment of the workpiece to the cutting tool, guaranteeing top-tier machining accuracy.
• Solve special clamping problems:
Specialized fixtures provide the perfect solution for machining holes, shafts, slots, and threads in non-bushing and non-wheeled parts, addressing tasks conventional fixtures cannot handle.
These specialized fixtures are meticulously designed to adhere to specific workpiece machining requirements, effectively solving clamping challenges beyond the scope of traditional fixtures.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Control System
Anoher Advantages
• Experience optimal processing conditions and a superior production environment, ensuring your projects are executed flawlessly every time.
Our state-of-the-art imported machinery, including a horizontal machining center, vertical machining center, CNC boring machine with a rotating table, and gantry guideway grinding machine, guarantees exceptional workpiece accuracy. This precision significantly enhances assembly quality and extends the longevity of accuracy, providing you with unmatched reliability.
• Revolutionary Detection Methods
Positioning accuracy is meticulously tested and finely adjusted using cutting-edge laser technology, rigorously adhering to the stringent German VDI3411 inspection specification (5 comprehensive tests each).
Every machine tool undergoes rigorous processing tests before it leaves the factory, ensuring that they not only meet but exceed actual processing accuracy requirements. This commitment to quality guarantees unparalleled performance in real-world applications.
Product sample
• This state-of-the-art CNC machine center seamlessly integrates milling, drilling, and tapping functionalities, providing an all-in-one solution for your machining needs.
• Capable of precisely CNC machining a variety of metal profiles including aluminum, steel, copper, and even non-metal materials, ensuring versatile and efficient production.
• Widely applicable across diverse industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails, this machine is designed to meet the highest standards of industrial performance.
Packaging & Shipping
•Highly Protective: Ensuring your Industrial Cutting Tools arrive in pristine condition with robust packaging solutions.
•Structural Stability: Our packaging is designed to maintain integrity and safeguard contents during transit.
•Environmentally Friendly and Recyclable: Committed to sustainability, our packaging materials are both green and reusable.
Professional Team
FAQ
1. What are the Payment Terms?
A: Our payment terms include a T/T arrangement, where an initial payment of 40% is required upon ordering, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: We accommodate various trade terms including FOB, CFR, and CIF, offering flexibility to match your logistical needs.
3. When is the delivery time?
A: For our standard industrial cutting machines, preparation is typically completed within 30 days. Custom or special machines may require additional time. Please place your order according to the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: We have a minimum order quantity (MOQ) of one set and proudly offer a comprehensive one-year warranty on our cutting tools.
5. How are the machines packaged?
A: To ensure safe transport, our machines are meticulously packaged in robust wooden cases.
6. How can I choose the most suitable machines?
A: Simply provide us with your specific requirements and we will recommend the most fitting model for your needs. Alternatively, you may select the exact model that suits you best.
You are also welcome to send us your product drawings, and our team will assist in selecting the most appropriate machines tailored for your applications.
