Low Cheap High Precision Horizontal Flat Bed CNC Lathe Ck6140 CNC Lathe Machine for Metal

Product Description

Product Description

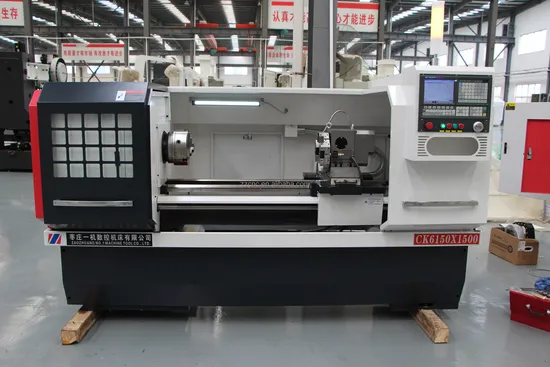

CK6150 price list automatic chuck cnc turning lathe horizontal machine is a high-precision, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.

Specifications

Machine Model	Unit	CK6140	CK6150
Swing over bed	mm	400	500
Swing over cross slide	mm	210	260
Distance between centers	mm	750/1000/1500/2000	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)	52(Optional 80)
Spindle bore taper	-	MT6	MT6
Spindle nose type	-	C6	C6
Spindle speed steps	-	Manual 2 steps	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)	L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post	-	Electric 4 position	Electric 4 position
Tool size	mm	25 x 25	25 x 25
X axis travel	mm	230	280
Z axis travel	mm	750/1000/1500/2000	750/1000/1500/2000
X axis rapid traverse	mm/min	6000	6000
Z axis rapid traverse	mm/min	8000	8000
Tailstock quill diameter	mm	65	65
Tailstock quill taper	-	MT4	MT5
Tailstock quill travel	mm	130	130
Main spindle motor	kw	4	5.5
Coolant pump motor	kw	0.09	0.09
Weight for 750	kg	1700	1800
Weight for 1000	kg	1800	1900
Weight for 1500	kg	1900	2000
Weight for 2000	kg	2000	2100
Dimension for 750	mm	2200x1650x1700	2200x1700x1750
Dimension for 1000	mm	2500x1650x1700	2500x1700x1750
Dimension for 1500	mm	3000x1650x1700	3000x1700x1750
Dimension for 2000	mm		3500x1700x1750

Details Display

Company Profile
Zaozhuang No.1 Cnc is a large-scale CNC machinetool manufacturer with more than 30 years ofmanufacturing experience.Our product range is CNC machines, Lathes, Milling machines, Drilling machines, Grinding machines, Saws,Shapers, Presses, Sheet metal machines, Metal forming machines, Garage equipment and other machine accessories. With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design. Our machines havebeen exported to more than 100 countries andregions, covering North America, Europe, SouthAmerica,the Middle East,Southeast Asia, etc.We specialized in manufacturing & exporting machine tools to the world for many years. Our factories are keeping develop and produce innovative high-tech machine tools for the metal-working industries every year. We also provide excellent after sales service for all customers in the world.We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected We wish to cooperate sincerely with friends all over the world to realize mutual development.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
