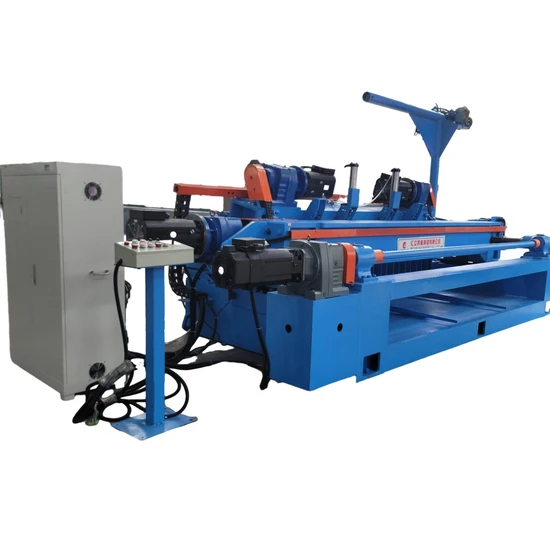

High Speed Plywood Peeling Machinery - Mstar 8FT Efficient Operation

Product Description

Company Profile

MSTAR MACHINERY CO., LTD, nestled in the vibrant Linyi city of Shandong, China, stands as a beacon of modern, professional excellence in the realm of woodworking machinery. Specializing in the research, development, production, and distribution of cutting-edge woodworking machines, we have set the industry standard with our innovative solutions. Our flagship products include the high-speed spindleless veneer peeling line, sanding machines, hot presses, saws, and debarkers. Among them, our high-speed automatic veneer peeling line has emerged as the industry benchmark, celebrated for its unparalleled efficiency, energy conservation, time-saving capabilities, and labor-saving benefits.
Through our commitment to providing superior products, impeccable service, and honest sales practices, MSTAR has garnered global acclaim. We earnestly invite you to join hands with us in a fruitful collaboration, as we look forward to achieving new heights together.

Parameter	Value	Notes
Length of the Roller(mm)	1500
Power of Double Roller(kw)	15kw X 2	AC Servo induction motor
Power of Single Roller(kw)	15kw X 2	AC Servo induction motor
Power of Screw Feed(kw)	11kw	AC Servo induction motor
Power of Rotary Clipper(kw)	5.5kw	AC Servo induction motor
Power of Rubber roller (kw)	5.5kw	AC Servo induction motor
Total Power(Kw)	85kw	WITH HOOK 3KW
Roller Reducer	Helical Gear Box X 4	R87
Screw Feed Reducer	Helical Gear Box X 1	R97
Clipper Reducer	Worm Gear Box X 1	RV130
Rubber Roller Reducer	Worm Gear Box X 1	RV130
Veneer output speed(m/min)	50-100 m/min Adjustable
Blade (mm)	2700*180*16
Screw Diameter(mm)	90mm
Max opening(mm)	500
Minimum Log core	32mm	normal roller:32mm
Thickness(mm)	0.5 - 4.0
Clipper width(mm)	>= 400 mm
Control Unit	Peeling Speed Adjust System Closed loop Servo control	PLC + Touch Screen MD810
Size(mm)	6000*3230*2200 Length*Width*Height
Weight(kg)	148000

Detailed Photos

SINGLE ROLLER: 2*15KW SERVO MOTOR
DOUBLE ROLLER: 2*15KW SERVO MOTOR
CUTTER: 2.2KW SERVO MOTOR
CONVEY:2.2KW SERVO MOTOR
EQUIPPED WITH HYDRAULIC CYLINDER TO PUSH LOG AT RIGHT POSITION

ALL WIRES WILL PASS THE TANK CHAIN, SAFE AND BETTER PROTECTION

AUTOMATIC OIL LUBRICATION
MACHINE BETTER RUNNING AND MAINTAINCE FOR LONG WORKING LIFE
THIS IS THE A B C THREE OIL LINES FOR MACHINE LUBRICATION
A: MACHINE COPPER BUSH
B: MACHINE SCREW AND NUT
C: SAME AS A
MACHINE BODY IS CASTING
STABLE RUNNING AND MORE STRONG
SPECIAL ROLLER TREATMENT TECHNOLOGY, MORE WEAR-RESISTING
WE CAN PROVIDE DIFFERENT ROLLER TYPE FOR CUSTOMERS' REQUIREMENT
8FT MACHINE MIN LEFT CORE SUGGEST 32MM
ON SINGLE ROLLER, THERE ARE DIFFERENT EDGE CUTTING SIZE
MOSTLY SIZE IS 2540MM 2490MM 2185MM 1880MM
SURELY WE CAN DO CUSTOMER-MADE SIZE FOR DIFFERENT REQUIREMENT
WE USE AIRTAC CYLINDER FOR MACHINE
BETTER HEAT RESISTANT AND 0 FAILURE
MORE STABLE RUNNING AND NO LEAK PROOF
8FT PEELING MACHINE WITH 2 CYLINDER TO SMASH THE LEFT LOG CORE
