Bearing Ring Cold Rolling/Cold Roll Forming Machine PCR120 with Zys Cold Rolling Technology

Product Description

Bearing Ring Cold Rolling/Cold Roll Forming Machine PCR120 with ZYS cold rolling technology

Product Description
ZYS cold rolling machine adopts the double working positions of rolling and sizing, and organically combines the control system, the hydraulic system and the mechanical structure through symmetrical structure, reliable shafting, suitable hydraulic proportional loading mode, fast and reliable magneto-electric detection system and stable electric control system. The machine layout is right feeding and left discharging.
The mechanical structure of the machine is of high-rigidity design, and the symmetrically arranged shafting support is the basic guarantee. The application of active measurement technology makes the machining process under full tracking and control. Besides, the rounding device makes the geometry of the work piece in the rolling process good.
The hydraulic system consists of pump station and proportional control system. The pump station integrates imported constant pressure variable pump (main rotary pump) and directional valve, pressure reducing valve, speed regulating valve, overflow valve, one-way valve, pressure sensor, as well as other auxiliary components and oil tank. The proportional control system is composed of a highly reliable proportional speed valve and a proportional controller. The hydraulic system is cooled by water.
The electronic control system is composed of a controller and the power supply. The controller is formed by MITSUBICHI's PLC controller and its extended module, and the touch screen panel. Its function is to give instructions based on the set and detected signals to complete the control of the working process.
1. Machining range
PCR-90B Max. OD after rolling: 90mm. Min. ID before rolling: 20mm. Max. width: 30mm.
2. Machining accuracy
Accuracy of cold-rolled parts (after sizing): OD tolerance ±0.05mm, taper and roundness 0.1mm, squareness 0.15mm, wall thickness difference 0.05mm.

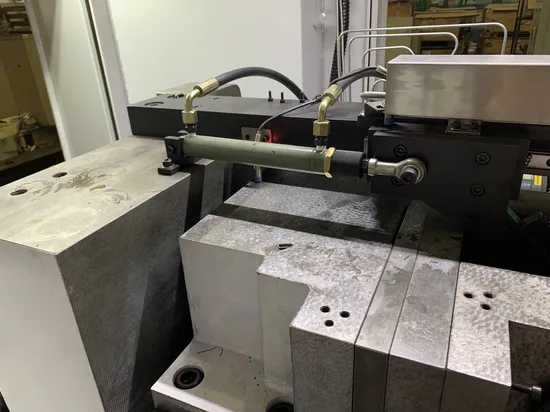

Detailed Photos
