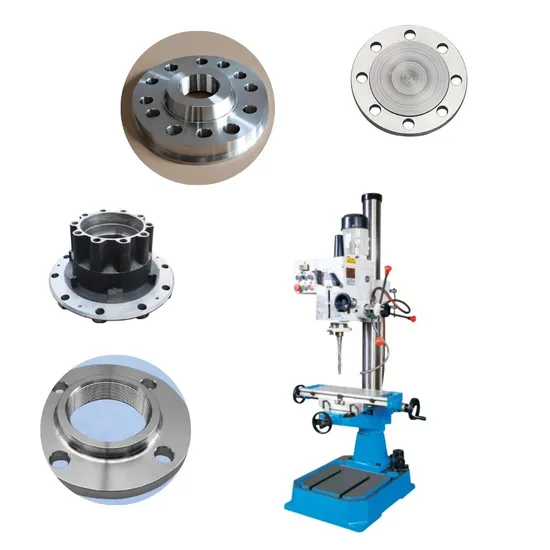

Vertical Drilling and Milling Machine ZX-40HC/ZX-40PC

Product Description

Characters:
The machine spindle can micro-feeding and hand-feeding,
Spinble speed change and easiness.
This machine use gear driving system, and it's driving moment isst-rong enough to drilling, reaming and milling at all kinds of materials.
The spindle head which can rotated 360° and tilted + 45°.
The motor was driving by gear which overcome the short coming of beltdriving.The working scope is large enough for spindle head and worktable not .
only up and down, but also rotation around the column.
"P" With collantsystems "H" Without collant systems.

Specification:

Model No.	ZX-40HC	ZX-40PC
Moving
Max.Drilling Capacity	Steel 32mm Cast Iron 32mm	Steel 32mm Cast Iron 32mm
Width of face milling	80 mm	80 mm
Diameter of vertical milling	28 mm	28 mm
Diameter of column	115 mm	115 mm
Spindle
Spindle travel	120 mm	120 mm
Distance spindle axis to column generating line	272.5mm	272.5mm
Max.Distance spindle nose to table	745 mm	745 mm
Max.Distance spindle nose to base	1245 mm	1245 mm
Spindle taper	MT4	MT4
Spindle speeds range	95~1600 r/min	95~1600 r/min
Spindle speeds series	6	6
Spindle feeds	/	/
Dimension of worktable surface	585×190mm	585×190mm
Table travel	370×140×515 mm	370×140×515 mm
Dimension of base	635 ×460 mm	635 ×460 mm
Other
Overall height	1760 mm	1810 mm
Main motor	Single-phase 750w Three-phase 1100 w	Single-phase 750w Three-phase 1100 w
Coolant motor	/	/
G.W/N.W	350/310 kg	375/335 kg
Packing dimension	72×74×192cm	72×74×198cm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
