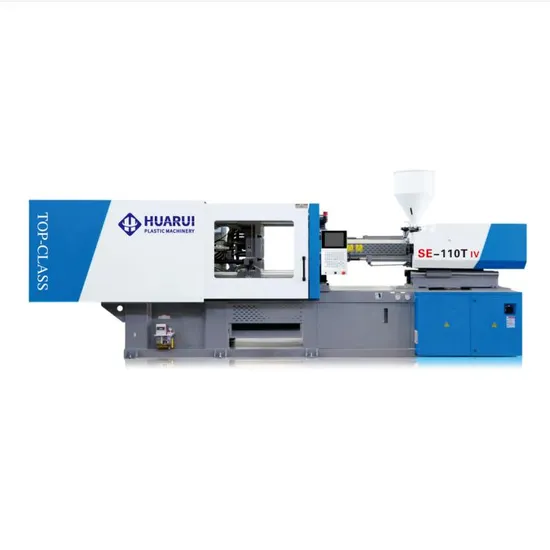

New 110t Professional High Quality Horizontal Plastic Injection Molding Machine

New 110t Professional High Quality Horizontal Plastic Injection Molding Machine

US$13,000.00-17,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-110T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
81/102/126cm³/Sec
Weight
3600kg
Motor Power
8.6kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
4.2*1.2*1.9m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Automatic Plastic Pet Preform Bottle Injection Stretch Blow Molding Machine
Product Parameters
SE-110T IV Plastic Injection Molding Machine Information
Item Unit A B C
Screw diameter mm 32 36 40
Theoretical shot volume cm³ 145 183 226
Shot weight (PS) g 132 167 206
Shot weight (PS) oz 4.7 5.9 7.3
Length/Diameter ratio L/D 22.5 20 18
Injection pressure Bar 2393 1890 1531
Injection rate cm³/sec 81 102 126
Max.screw speed rpm 220
Clamping force KN 1100
Max.daylight mm 595*545
Open stroke mm 350
Space Between Tie-bars mm 410*360
Min mould dimension mm 170
Mould thickness range mm 420
Ejector force KN 40
Ejector stroke mm 110
No.of ejector pins unit 5
Max.motor power KW 15
System pressure MPa 175
Heater input power KW 8.6
Oil filling capacity L 150
Machine size M 4.2*1.2*1.9
Net weight KG 3600

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
