Ws-15plus CE Approved Mini Excavator 1ton Chinese Supplied Hot Sale New Design Digger Hydraulic Mini Excavator

Product Description

Product Description
The WS-15 mini excavator 1 ton, which has strong power, flexible operation, and outstanding performance.
Strong power for personal use model with good price EPA and Euro V engine available Compact Designs with Exceptional Features The pilot control on both sides of the seat is adopted, which is not easily fatigued during long-term construction. Simultaneously, the walking control increases the foot pedal, which is more suitable for conventional excavators' operation habits.
Rotating turntable Small bucket for small to medium-sized jobs Ideal for trenching, digging, and moving materials Wishope offers great machines that operate smoothly and efficiently in various work environments.

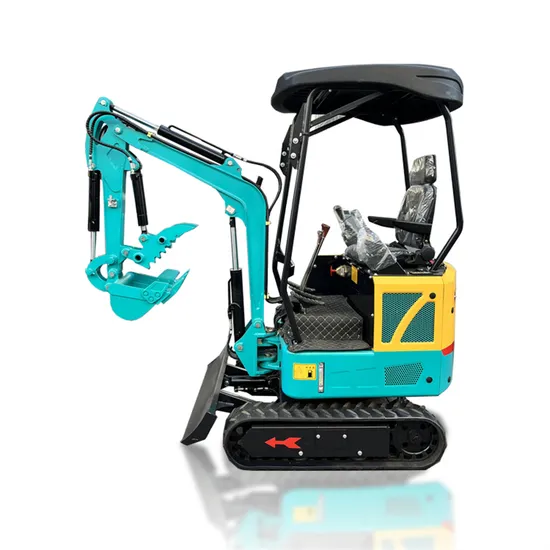

Our 1 ton mini excavator features a bucket, arm, rotating cab, and movable tracks. These features provide superior digging power and mobility, allowing the equipment to perform various tasks.
The unique features of the Wishope 1 ton mini excavator provide exceptional performance in tight spaces.

Product Parameters

NO.	Specification	Unit	WS-15	WS-15PLUS
1	Operating Weight	kg	1100	1150
2	Bucket Capacity	m³	0.3	0.3
3	Bucket Width	mm	400	400
4	Travel Speed	Km/h	2---3	2---3
5	Grade Ability	%	35	35
6	Engine brand	/	Laidong 380	Laidong 380
7	Rated Power	kW	14.7	14.7
8	Cylinders Quantity	/	3	3
9	Cooling type	/	Water	Water
10	Fuel consumption	L/h	Water Cooling	Water Cooling
11	Travelling Control	/	Mechanic	Hydraulic Pilot
12	Overall Length	mm	2200	2200
13	Overall Width	mm	940	940
14	Overall Height	mm	2170	2170
15	Counterweight ground clerance	mm	385	385
16	Track length on Ground	mm	1200	1200
17	Track shoe width	mm	180	180
18	wheel Gauge	mm	740	740
19	Track Extension Range (additional function)	mm	940-1100	940-1100
20	Swing Angle(L&R)	°	60	60
21	Min.Front Swing radius	mm	1570	1570
22	Max.Diiging radius	mm	2500	2500
23	Max.Digging Depth	mm	1500	1500
24	Max.Digging Height	mm	2590	2590
25	Max.Dumping Height	mm	1850	1850

Various models of mini excavators:
WS-17 WS-18 WS-15
WS-13 WS-12 WS-08
Hot Product
DT350 DT260 DT230

DT65 DT160 DT180
DW80 DW88 DW150
Company Profile
Established in 2014, Wishope Machinery focus on construction & agricultural machinery products manufacturing and export for around 10 years. The R&D team has fully learned the design concepts of Japanese and Korean hydraulic excavators, with years of sales and modification, all the product design is very mature and stable. Over 250 employees and 22 senior engineers. We export small to big excavators to over 20 countries such as Indonesia, Malaysia, Colombia, and mini excavators exported to the USA and to European countries.Wishope Hydraulic Excavators - innovative construction machinery: Digging, excavating and shoveling are the main tasks of the excavator. Whether in civil engineering digging a pit or dredging in a body of water: Our hydraulic excavator offers the optimum machine for every task.Get an overview of all micro excavators and find the right construction machine for your application. A wide range of attachments are available for our machines. Excavator buckets and shovels, vibrators and hammers, and grabs make your excavator a real working machine.China's excavators are growing at a high annual export sales rate of about 15% in the past 3 years. There are big Chinese excavator like our Dootech. After decades of technological precipitation, Chinese excavators have been able to find a balance between price and quality in a very balanced manner, so as to achieve high export sales. Packaging & Shipping
Our Advantages
What Kinds of Excavators We Can Provide?Hydraulic excavators are divided into many types according to the tonnage of the model. 1-3 tons are called micro excavators, 6-13 tons are called small excavators, 15-39 tons are called MIDI excavators, and more than 40 tons are called large-scale excavators.We can provide all kinds of crawler excavators, including Dootech brand with Korean technology, mini long-reach excavators with Japanese technology, etc.At the same time, we also customized accessories, such as the modification of long arms, OEM amphibious excavators, and the modification of excavator attachments, the spare parts of various brands of excavators.
