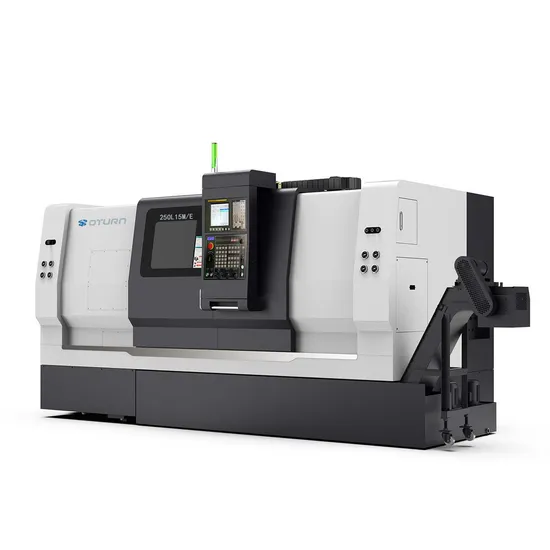

Oturncnc E250lm15 Live Turret Turning Center CNC Lathe with Fanuc

Product Description

Product Description
The machine adopts an optimized 30-degree inclined bed structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. High-strength hard rail structure, the transmission system adopts screw pre-tension design to improve the rigidity performance..
The machine tool is equipped with hard rail guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to reduce the thermal displacement. to the lowest level, greatly improving processing accuracy.
Product Parameters

Item	Unit	TY250LM15/E
Max. swing diameter over bed	mm	Φ600
Max. processing diameter	mm	Φ550
Max. processing diameter on tool holder	mm	Φ350
Max. processing length	mm	1500
Spindle nose	type	A2-11
Max. Spindle speed	rpm	2500
Cylinder/Chuck	lnch	12″
Spindle bore diameter	mm	Φ117
Bar diameter	mm	Φ102
Spindle motor power	kw	15/18.5
Motor torque220-272 Spindle motor power1:2	Nm	440-544
X/Z axis limit travel	mm	280/1560
X/Z axis guide rail specifications	spes	Hard rail
X/Z axis motor torque	Nm	22
X/Z axis motor power	kw	3.0
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z axis rapid speed	m/min	20/20
Powered tool turret type	pcs	BMT65-12/ER32
Power turret power	KW	5.5/7.5
Max. speed of driven tool holder	rpm	6000
Outside diameter tool holder specifications	mm	25X25
Inner diameter tool holder specifications	mm	Φ50
Adjacent tool change time	sec	0.38
Hydraulic tailstock	/	Hydraulic
Max. travel of tailstock	mm	1500
Tailstock sleeve tapered hole	type	Mohs5#
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	80
Machine size	mm	4850*2300*2150
Machine Weight	kg	7500
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricating oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations

Company Profile

Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
