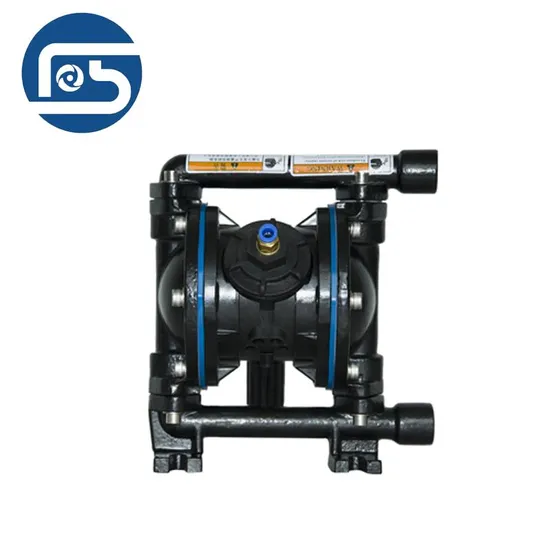

Qby Pneumatic Diaphragm Pump Corrosion Resistance Fire-Proof Explosion Proof Particales

Product Description

QBY pneumatic diaphragm pump is a new type of conveying machinery. Compressed air is used as a power source. It can be used to convey all kinds of corrosive liquids, liquids with particles, high viscosity, volatile, flammable, highly toxic liquids. The main feature is that there is no need for irrigation, high suction and adjustable head (0-50 meters). The air source pressure only needs to be greater than 1kg/cm2 to work, absolutely fireproof and explosion-proof.
Material structure diagram1.Air inlet 2. Valve body3. Air distribution valve 4. Ball 5. Ball seat 6. Diaphragm 7. Connecting rod 8. Connecting rod copper sleeve 9. Intermediate bracket 10. Pump inlet 11. Exhaust port Performance parameter

TYPE	FLOW RATE m³/h	HEAD m	OUTLET PRESSURE bar	SUCTION STROKE m	PARTICLE DIAMETER mm	AIR CONSUMPTION m³/min	GAS SUPPLY PRESSURE bar	INLET&OUTLET APERTURE
								THREAD	Flange
QBY-10	0~0.8	0~50	6	≤5	≤1	≤0.3	≤7	3/8"
QBY-15	0~1	0~50	6	≤5	≤1	≤0.3	≤7	1/2"
QBY-25	0~2.4	0~50	6	≤5	≤2.5	≤0.6	≤7	1"
QBY-40	0~8	0~50	6	≤5	≤4.5	≤0.6	≤7	1¹/2"
QBY-50	0~12	0~50	6	≤5	≤8	≤0.9	≤7		50
QBY-65	0~16	0~50	6	≤5	≤8	≤0.9	≤7		65
QBY-80	0~24	0~50	6	≤5	≤10	≤1.5	≤7		80
QBY-100	0~30	0~50	6	≤5	≤10	≤1.5	≤7		100
Unit conversion:1L/min=0.06m³/h;1bar=1kgf/cm²=0.1MPa Note :The above performance parameters are water test parameters

Material structure diagram

TYPE

OPTIONAL PUMP BODY MATERIAL

OPTIONAL DIAPHRAGM MATERIAL

Cast Iron

Cast Steel

AL Alloy

RPP

PVDF

Stainless Steel

Fluorin Lining

Fluorin Lining

NBR

Neoprene

PTFE

FEP

QBY-10

★

-

★

★

★

★

-

-

★

★

★

★

QBY-15

★

-

★

★

★

★

-

-

★

★

★

★

QBY-25

★

-

★

★

★

★

★

★

★

★

★

★

QBY-40

★

-

★

★

★

★

★

★

★

★

★

★

QBY-50

★

-

★

★

-

★

★

★

★

★

★

★

QBY-65

★

-

★

★

-

★

★

★

★

★

★

★

QBY-80

★

-

★

★

-

★

★

★

★

★

★

★

QBY-100

★

-

★

★

-

★

★

★

★

★

★

★

NOTE : ★ Optional -Not optional

Material characteristic table

Diaphragm Material Medium Material	CHEMIGUM	NEOPRENE	FLUORORUBBER		FOOD GRADE RUBBER
FUMING NITRIC ACID	×	×	△
CONCENTRATED NITRIC ACID	×	×	△
CONCENTRATED SULFURIC ACID	×	×	0
CONCENTRATED HYDROCHLORIC ACID	×	△	△
STRONG PHOSPHORIC ACID	×	△	△
ACETUM ACERRIMUM	×	×	×
CONCENTRATED SODIUM HYDROXIDE	0	0	△
ANHYDROUS AMMONIA	△	△	△
DILUTE NITRIC ACID	×	×	0
DILUTE SULFURIC ACID	△	△	△
DILUTE HYDROCHLORIC ACID	×	0	△
NOTE:0 : Long service life,△ : Average service life,× : Not available
