Hsm-CNC45 12axis Automatic CNC Wire Bender Former Coiler Machine for Car Springs

Product Description

Specification

Wire Size	1.5-4.0mm
Wire Feed Motor	5.5KW
Wire Rotatable Motor	5.5KW
Each Cam Motor	2KW
Z-Axis	2KW

Product Description

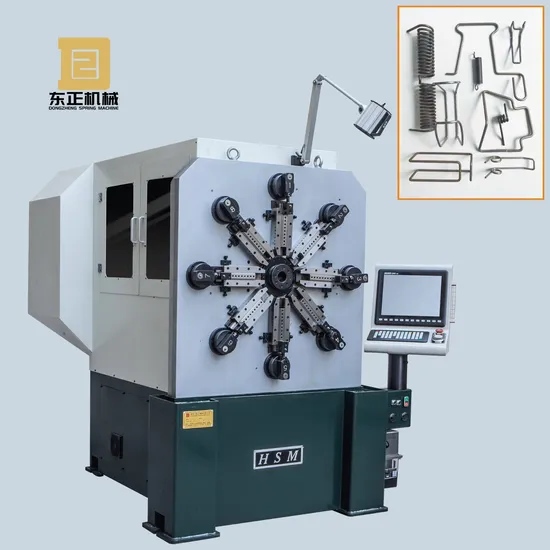

Dongzheng 45 camless wire spring machine can be used to produce flat wires, steel wires, iron wires and other products with wire diameters of 1.5-4.0mm. Commonly used products include various springs, battery springs, touch springs, special-shaped Springs, single and double torsion springs, tension springs, scroll springs, circlip springs, serpentine springs, various types of clips, auto parts, mobile phone accessories, handicrafts, etc., the products have a wide range of applications. Compared with cam machines, camless machines do not need to spend a lot of time arranging cams, thus effectively reducing processing time and costs. Machine operator can write processing programs through intuitive timeline software to improve work efficiency and productivity.
The machine is 1.7 meters long, 2 meters wide, 1.8 meters high and weighs about 4500kg. The power input of this machine is 380V 50HZ. The machine is equipped with 12 axes, of which 8 2kw motors are used to control the cam rotation. The other four axes are respectively used for the 5.5kw motor in the wire feeding part, the 5.5kw motor for wire transfer, the 2kw motor for core rotation, and the 1kw motor. of curling, customers can expand 1 axis by themselves. It can also be used with a probe for probe compensation function. Each machine is equipped with a fully automatic lubrication function. The fastest wire feeding speed is 110 meters per minute, and the maximum cam speed is 80 rpm. The machine can be used together with probes and cylinders. Each machine is equipped with a 150kg automatic wire feeding machine for joint use. Each machine is equipped with a CNC computer to control the operation of the equipment. The computer can write different programs to produce different products. The programs can be stored for next use. The computer can calculate the production quantity, production speed, remaining production time, etc. data.
Thanks to our clients treasurable suggestion. The machine has been widely praised in the market after continuous optimization of technology and process. And we will keeping improving our products. High product precision, stability, high wire feeding precision, durability are the most popular features in our product
Samples
More Photos
Order Process
Why Us
1. We are in spring machine industry area 30 years
2. Our general manager is the professional mechinical engineer, he is pragmatism and self-discipline man and he is technique guy instead of business guy, he manage all HSM products' design and improve them little by little in more than 30 years.
3. We are listen to our customers, we treat our clients comments as treasurement, and we will continuously refactor our products base on clients good suggestion.
4. We have very good reputation in Guangdong, most of our customer are repeat customer. Our machine price is higher, but machine quaility is higher too
5. Specail material used, machine can be used super long time. And longer time machine used, the machine is more easier to use
6. Every machine is restrictly checked before shipping
7. Everyone in company just like a big family. Quantity is guaranteed
Company Profile
Dongguan Dongzheng Machinery Co., Ltd. is a professional company specializing in the production of spring machinery for more than 20 years. Company has a wide range of products, mainly including 20 cam spring machine, 40 cam spring machine, 50 cam spring machine, 50 wire rotatable cam spring machine, 25 camless spring machine, 45 wire rotatable camless spring machine. 08 spring coiling machine, 30 spring coiling machine, 2D wire bending machine, conveyor belt specialized machine, latch machine, spring winding machine. Machines can produce all kinds of flat wires, compression springs, tension springs, torsion springs, wire forming products and other Special-shaped springs. The machines are equipped with 90kg to 500kg wire feeding machines. All machine parts are fully developed by us. The motor deceleration part adopts a unique mechanical design and is patented. The machinery adopts practical design, making the machine simple and quick to install, and also reduces the difficulty of debugging and the technical threshold of debugging.
More importantly, it shortens the machine debugging time when debugging a product. The slider used in the machine is made of special materials, which has good rigidity, strong wear resistance, and accurate and stable on production. Each machine is equipped with a CNC computer. The computer is easy to operate, supports multiple languages, and automatically detects the machine health, automatic alarm and other functions. Dongzheng Machinery has a long history. The founder is a senior mechanical designer who advocates pragmatism and strict self-discipline. He founded the company in 1996 and named it "HSM" meaning the grand cooperation. Later renamed Dongzheng and switched the "HSM" as a brand under Dongzheng. Our product has the characteristics of high wire feeding precision, stable and precise molding action, and novel appearance.
In the fiercely competitive market, the company will continue to provide excellent quality, reasonable and competitive prices, accurate delivery time and excellent customer service to meet the rapid development of market demand.
Dongzheng Machinery Company is located in the world-famous international manufacturing city "Dongguan, Guangdong" with a beautiful environment and convenient transportation. At the same time, the company built a branch in Jiangxi in 2019. It has invested and completed the factory construction in Jiangxi. The company name is "Jiangxi Zheng Dong Intelligent Technology Co., Ltd." We believe the new branch will strengthen the company's future. It laid a solid foundation for the company's subsequent long-term development. Adhering to the tenet of "keep improving quality and pursuing perfection", Let us know if you have any question and look forward to cooperating with you.
