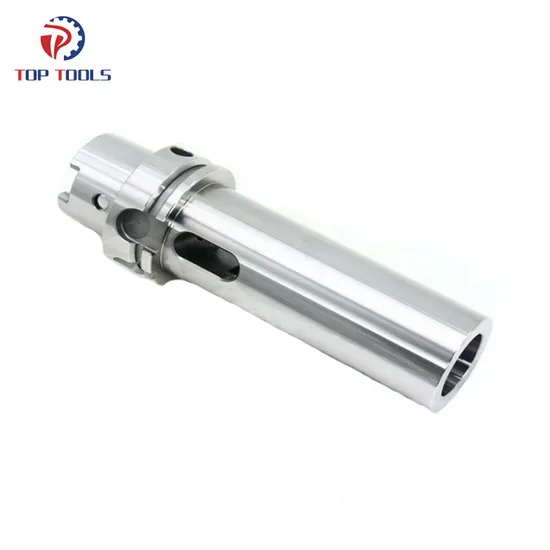

Hsk Shank Morse Taper Hsk100A Mta3 150 Collet Chuck for CNC Machine

Hsk Shank Morse Taper Hsk100A Mta3 150 Collet Chuck for CNC Machine

US$25.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
Hsk100A Mta3 150 Collet Chuck
Numerical Control
CNC/MNC
Processing Precision
0.005mm
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Model Number
Hsk100A Mta3 150 Collet Chuck
Material
20crmnti
Standard
DIN69893
Rpm
30000rpm
Color
Bright
Keywords
Collet Chuck
Transport Package
Plastic Box
Specification
HSK100A MTA3 150 collet chuck
Trademark
Gerzhuo
Origin
Shandong, China (Mainland)
HS Code
8207709000
Production Capacity
1, 000, 000 Pieces/Year

Product Description

1,Material: 20CrMnTi
2,Production standard: DIN69893
3,dynamic balance: G6.3 15000RPM G2.5 30000RPM
4,precision: ≤0.005mm
5,Hardness:HRC56-60 ,carbon depth >0.8mm
6,shank:HSK short cone shank type A
7,Usage:HSK high speed collets chuck holders are applied for a variety of processing, including engraving drilling, milling ,tapping & grinding and so on.
HSK shank MTA morse taper mill tools is our new products. they have been exported many times such as Germany Korea and so on.their quality and precision is very high.the clients are satisfied with them.
Technical specification
Model L L1 D D1 MT
HSK63A-MTA1-100 100 74 Φ63 Φ25 1
HSK63A-MTA2-120 120 94 Φ63 Φ32 2
HSK63A-MTA3-140 140 114 Φ63 Φ40 3
HSK63A-MTA4-160 160 134 Φ63 Φ48 4
HSK100A-MTA1-110 110 81 Φ100 Φ25 1
HSK100A-MTA2-120 120 91 Φ100 Φ32 2
HSK100A-MTA3-150 150 121 Φ100 Φ40 3
HSK100A-MTA4-170 170 141 Φ100 Φ48 4
HSK100A-MTA5-200 200 171 Φ100 Φ63 5

Our Advantage
1,Manufacture Factory
We are the industry and trade integration company .we have our own manufacture factory.
2,Quality Control:
During production process ,every part be checked .every product will be checked before the delivery.
the overall accuracy be checked by precision detector.the dynamic balance be checked by dynamic balance HAIMER detector.
3,Professional Sales Team
Our sales team have the professional export experience,can contact with the customer frankly.
4,Delivery in time
as we have our own manufacture factory ,the order delivery time can be control.
5,Good after Sales Service
Our company provides good after sales service as per customers requirement.
Our Services
I Fast reply
II Favourable price
III High quality products
IV Fast delivery
VI Good after-sales service
Packaging & Shipping
