Plastic Inject/Injection Mould/Moulding Machine 280ton for Commodity Products

Product Description

Specification of D-RI280 plastic injection moulding machine
1. Product details:
2. Technical data of D-RI280

Type items	D-RI 280
Screw diameter (mm)	65
Injection pressure (Mpa)	155
Shot weight(PS)	890
Screw L/D ratio (L/D)	18:4:1
Screw stroke(mm)	322
Screw speed (r.p.m)	0-160
Injection rate (g/s)	270
Plasticizing capacity	40
Clamping force (KN)	280
Mould clamping stroke (mm)	550
Max daylight opening (mm)	1170
Mould thickness(Min-Max)	230-620
Space between Tie-bars (mm)	580*580
Hydraulic ejection force(tons)	7.0
Hydraulic Ejector stroke (mm)	145
System pressure	16
Pump motor power (KW)	22
Heat power (KW)	14
Temperature control zones	4+1
Tank capacity(L)	500
Machine dimension (m)	5.8*1.65*2.05
Machine weight (ton)	11

3. Specifications
Injection molding machine
3.1.Big tie bar space and shot weight capacity
3.2.Most famous component parts
3.3.Perfect after-service
4. HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.

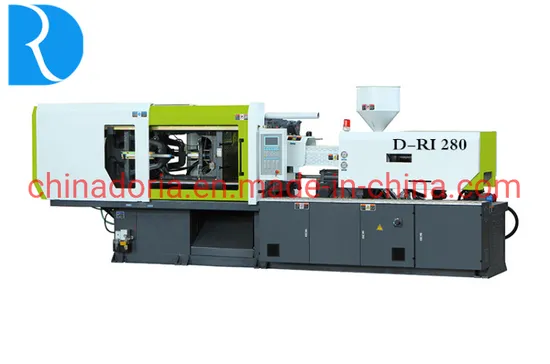

5. Pictures of machine
6. Frequently Asked Questions:
Q: Where is your loading port?
A: Ningbo/Shanghai, China or else port as for your request.
Q: Where is your company?
We are located in Taizhou city Zhejiang Province, very convenient for shipping.
Q: When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or inform us by email, so that we will regard your inquiry in priority.
Q: Can you make bottle designs to us?
A: Yes. We have a professional team having rich experience on products designs. You could send bottle samples to us, and we could make designs according to the samples. Or you could send us the sketch of design, and we could make detail 3D designs to you to check.
Q: What is your selection of shipping method?
A: (1). For small trial order, international express, just as TNT, DHL, FedEx, UPS, EMS is suitable.
(2). For large order, we can arrange shipment by sea or air according to your requirement.
7. About us:
Automatic blowing bottle mould manufacturer:
One cavity automatic Blowing Bottle Mould for 5L oil bottle
2 Cavity Automatic Blowing Bottle Mould up to 2L
3cavity Automatic Blowing Bottle Mould
4cavity Automatic Blowing Bottle Mould
6 Cavity Automatic Blowing Bottle Mould up to 1L
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
