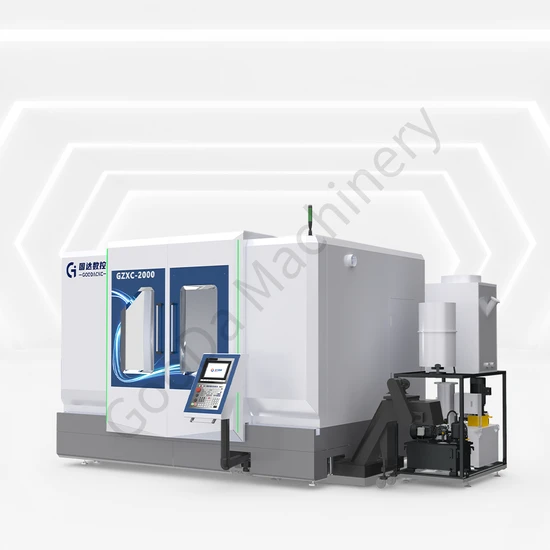

5 Axis Machining Center Designed for Precision Engineering Solutions

Product Description

Main Features
GooDa 5-Axis Multi-Tasking Machining Center Experience the future of precision engineering with this revolutionary machining center! Outfitted with an advanced, fully digital numerical control device, it is seamlessly integrated with cutting-edge artificial intelligence technology, ensuring unparalleled performance and accuracy.
Revel in its exceptional suite of features, including comprehensive full-lifecycle screw load statistics and intelligent tool service life management. The machine's robust protection functions and QR code capabilities are designed to streamline operations. Plus, it boasts self-adjusting servo parameters that significantly enhance processing quality, optimize process parameters, and contribute to the longevity of the equipment.
This versatile powerhouse is perfectly suited for high-demand industries such as aerospace, automotive, energy, shipbuilding, machine tools, mold making, and the ever-evolving 3C sectors, making it an indispensable asset for any enterprise.
Main Functions
Thermal Deformation Countermeasures
Advanced Countermeasures for Heating of Milling & Lathe Spindle, Turntable, and X-axis Screw Rod
- Utilizing the cutting-edge technology of circulating cooling water with precise temperature control around the spindle bearing's outer cylinder, we dramatically reduce spindle deformation caused by the heat of high-speed rotation, thereby ensuring that machining accuracy is consistently preserved for unparalleled performance;
- Similarly, the integration of temperature-controlled cooling water circulation around the turntable bearing's outer cylinder effectively minimizes the detrimental heat generated from high-speed rotation. This process is key to maintaining precision and guaranteeing stable machining accuracy throughout operations;
- The meticulously temperature-controlled flow of cooling water within the shaft plays a crucial role in minimizing ball screw heating. This advanced control neutralizes thermal effects originating from the servo motor, safeguarding the integrity and precision of your machining process.
Mill-Turn Spindle
Our state-of-the-art integrated turning and milling spindle showcases remarkable compatibility with tailored ATC motors. Its sleek, compact design significantly reduces interference between the spindle and the workpiece, thereby vastly broadening the processing range. Masterfully engineered, it excels in processing a diverse array of materials such as cast iron, 45# steel, lightweight aluminum, and resilient titanium.
Angle Encoders
- Equipped with precision linear encoders on the X, Y, and Z axes, our system accurately detects the actual movement of each axis. This technology is essential for enhancing both the positioning accuracy of the machine tool and its repeat positioning precision, ensuring consistent reliability and top-tier performance;
- The B and C axes are fitted with advanced spindle encoders, ensuring unmatched precision in angular position detection and rotational axis alignment, thus cementing the integrity of your machining results.
Examples of Processed Parts
Our team of seasoned experts is eagerly on standby to provide you with unparalleled assistance, ensuring you select the machine that perfectly aligns with your specific processing needs, tailoring our solutions to match your exact requirements.Get Expert Assistance Now!
Product Parameters

Model	GZXC-2000
Category	Attribute	Value	Unit
Fixed worktable	Worktable size	2000*500	mm
	Max. load capacity	1500	KG
	T-slot	7-20*63	/
X/Y/Z-axis	X-axis travel	1800	mm
	Y-axis travel	500	mm
	Z-axis travel	600	mm
	Rapid traverse speed(X/Y/X)	20/20/20	mm/min
	Feed rate	16/16/16	mm/min
	Positioning accuracy	0.015/1000	mm
	Repeat positioning accuracy	0.01/1000	mm
Turntable	Outer diameter	800	mm
	Max.load	850	KG
	T-slot	7*18*100	mm
	Min.speed/Max.speed	60/100	rpm/min
	Positioning accuracy	±7	arc-sec
	Repeat positioning accuracy	±5	arc-sec
B-axis	B-axis travel	-30°~+210°	°
	B-axis speed	500	rpm/min
	Positioning accuracy	6	sec
	Repeat positioning accuracy	-30~210°
Spindle	Tool holder specifations	HSK-63A	/
	Distance from spindle nose to table	150	mm
	Spindle speed(MAX.)	45~12000	r/min
Tool magazine parameters	ATC capacity	40	T
	Tool size(full tool)*tool length	∅125*300	mm
	Tool Dia(adjacent empty)*tool length	∅220*300	mm
	Max.tool weight	8	KG
Power requirement	Rated voltage	AC380V±10%	V
	Total power	80	KW
	Air pressure	0.6-0.7	Mpa
Space & weight	Machine weight	18	T
	Maching size (L*W*H)	7400*4400*3000	mm

Core Components
Milling and Turning Combined Machine Structure
1. The machine's innovative structure is crafted with precision; it's thoroughly refined through exhaustive structural analysis that expertly merges milling and turning centers. This fusion is essential for maintaining exceptional high-precision positioning and processing capabilities over the long term.
2. Experience extraordinary high-precision positioning along the entire Y-axis travel range, ensuring unparalleled accuracy and reliability in every task.
B-axis Uses a Roller Cam System
1. The roller cam system stands out with its superior rigidity, effectively eliminating backlash to offer remarkable high-precision and efficient processing, boosting productivity and quality.
2. Equipped with a standard B-axis rotary encoder, it achieves a phenomenal 0.001° precision indexing, setting a new benchmark in precision engineering.
C-axis Uses Hydraulic Locking System
Featuring a robust hydraulic locking system, this design, paired with a rotary encoder, ensures repeatability and positioning accuracy within a stunning ±5 arc seconds, enhancing reliability.
Compact Milling-Turning Spindle and Wide Processing Area
This compact design is expertly engineered to reduce spindle dimensions by approximately 10% compared to similar models. This thoughtful construction not only expands the processing area but also minimizes interference risks between the spindle and workpiece, optimizing efficiency.
