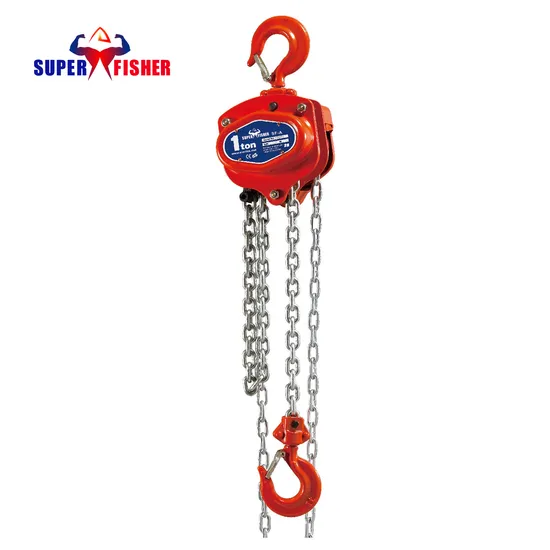

OEM Mini Crane Pulley Thick Manganese Steel Safety Lifting Equipment Chain Hoist Block with G80 Load Chain China Factory Price
| US$10.00-50.00 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
SF-A
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Chain Hoist
Sling Type
Chain
Lift Speed
>8m/min
Maximum Lifting Height
3m
Chain Falls
2
Certification
CE, ISO9001:2000, GS
Condition
New
Color
Orange,Yellow,Red,Blue,Customized
Used
Lifting Tool
OEM
Yes
Colour
Customized
Sample
Available
Load Chain
G80
Hand Chain
Galvanized
Label
Customized
Transport Package
Carton, Wooden Box, Pallet
Specification
Load capacity 0.5-30ton
Trademark
SUPER FISHER/OEM
Origin
Zhejiang Province
HS Code
84251900
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
37.50cm * 27.50cm * 26.00cm
Package Gross Weight
26.000kg
Product Description
Hand Pulling Manual Chain Hoist with G80 Load Chain & Reinforced Hook->The hoists tested at 1.5 times of WLL.
->Hoist has overload protection system.
->Chain hoist Capacity range from 0.5ton to 30 ton
-> Compact sized design product suitable for all application.
->Heavy duty guide rollers for avoiding slippage of load chain.
->Hook with safety latch securely can rotate freely 360 degrees.
->Machined chain sprocket and gears provide smoother,more efficient operation.
Production Picture
Production Advantage
1.Safe and reliable in operation with minimum maintenance.
2.High efficiency and small hand pull.
4.Fine appearance with small size.
3.Light weight and easy handling.
5.Durability in service.
Technical Parameters
| Model | Rated load(Ton) | Standard Lift(m) | Test Load(Ton) | Efforts Required at Capacity(N) | Diameter of Load Chain(mm) | No.of Load Chains |
| SF-50A | 0.5 | 2.5 | 0.75 | 262 | 5 | 1 |
| SF-100A | 1.0 | 2.5 | 1.5 | 304 | 6 | 1 |
| SF-150A | 1.5 | 2.5 | 2.25 | 395 | 8 | 1 |
| SF-200A | 2.0 | 2.5 | 3.0 | 330 | 6 | 2 |
| SF-300A | 3.0 | 3.0 | 4.5 | 402 | 8 | 2 |
| SF-500A | 5.0 | 3.0 | 7.5 | 415 | 10 | 2 |
| SF-1000A | 10.0 | 3.0 | 12.5 | 428 | 10 | 4 |
| SF-2000A | 20.0 | 3.0 | 25.0 | 428*2 | 10 | 8 |
| SF-3000A | 30.0 | 3.0 | 37.5 | 442*2 | 10 | 12 |
Used Scenario
Production Details
