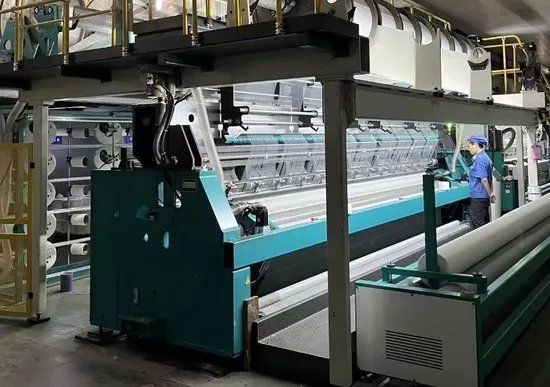

RS3 Msus PVC Flex and Banner Biaxial Weft Insertion Raschel Warp Knitting Machine
| US$250,000.00-350,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
RS3 MSUS
Knitting Product Type
Biaxial Warp Knitting
Knitting Style
Warp
Knitting Method
Single
Needle Style
Compound Needle
Needle Bar Style
Flatbed Knitting Machine
Computerized
Computerized
Certification
CE
Condition
New
After-sales Service
Ok
Production for
PVC Flex and Banner
Yarn
Polyester
Machine Type
Weft Insertion
Gauge
E18
Transport Package
Vacuum Package
Specification
40"HQ container for one set machine
Trademark
ARIS
Origin
China
HS Code
8447201100
Production Capacity
10 Sets/Month
Product Description
| Technical Parameters | |
| Model | CH RSMSUS-G |
| Working width | 213",245",260" |
| Gauge | E6/E9/E10/E12/E18 |
| Bars | 2 GB and one bar for filler threads |
| Pattern drive | Pattern disks |
| Warp plain stitch structure | GB1:1-2//1-2 |
| Pillar stitch structure | GB2: 1-0//0-1 |
| Circle disk | GB3: 0-0// |
| Let-off way and take-up | EBC and Electronic take-up |
| Power of Main Motor | 35kVA |
| Control type of Main Motor | Inverter Control |
| Working Speed | 500-1300 RPM |
| Language - Operator Interface | Chinese- English |
| Voltage | 380V |
| Main configuration | |
| Main Motor | Siemens OF Germany |
| Inverter | Mitsubishi of Japan |
| Servo motor | Mitsubishi of Japan |
| Bearings | SKF and INA of Germany |
| All needles on the machine | GROZ BECKERT |
| Needle bars/Core needle bars/Stitch comb bars/Comb bars materials | Aluminium Magnesium Alloy |
| Test components | AUTONICS OF SOUTH Korea and KOYO OF Japan |
| Touch screen | MCGS OF China |
| Operating components | France |
| Terminal components | PHOENIXCONTACT OF Germany |
| All machined parts | Manufactured by Tianyi company themselves based karlamyer experience. |
