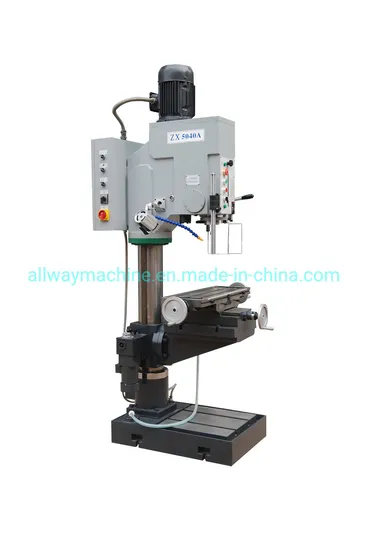

Zx5040A Zx Series Column Type of Vertical Drilling Milling Machine Drilling
| US$5,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX5040A
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Manual
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Drilling Machine
Used as
Drilling Milling Machine
Function
Drilling Milling
Max. Drilling Dia.
35/M20
Max Travel of Spindle
150
Power
1.5
Weight
670
Transport Package
Plywood
Specification
ZX5040A
Trademark
ALLWAY
Origin
China
HS Code
84592900
Production Capacity
2000PCS/Year
Product Description
ZX Series Column type of vertical Drilling Milling machine DrillingZX5030A ZX5035A ZX5040A ZX5050A
Feature:
Trochoid thin oil lubrication
Main features:
Double voltage 220V-575V three-phase configuration;
High quality casting;
Two speed motor,12 step gear shift;
Unloading tool device and coolant, protection device;
Drilling diameter above 35mm(including 35mm) with milling function;
Strength spindle, large diameter column;
Worktable could be rotated and tilt +-45 degrees;
Motor driven lifting of Workable;
Drilling diameter above 35mm with feed depth digital display device and drilling speed digital display device;
A micro feeding mechanism is available;
Trochoid thin oil lubrication;
Superior quality of gears with hardened and lapped gears of surface;
Main motor with break;
The main electrical components are imported, with CE,UL certification;
In the machine model, the one with A is the electromagnetic clutch feed, and the one with B is the mechanical feed.
