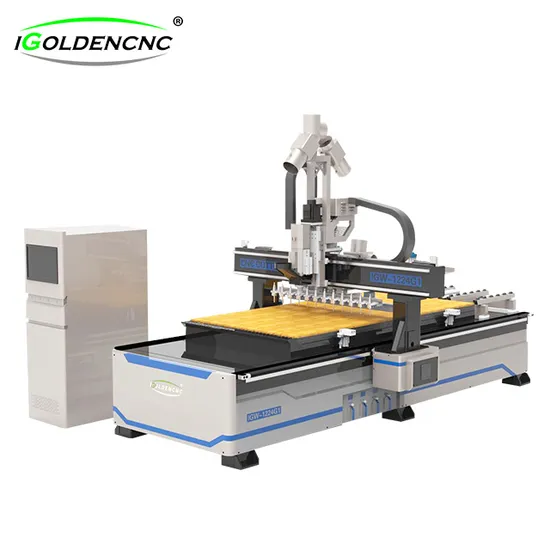

CNC Automatic Tool Change 1325 Sculpture Wood Carving CNC Cutting Machine Router Woodworking Center

CNC Automatic Tool Change 1325 Sculpture Wood Carving CNC Cutting Machine Router Woodworking Center

US$9,200.00-16,800.00 1 SET (MOQ)

Basic Info.

Model NO.
1325 ATC
CNC or Not
CNC
Voltage
380V
Keywords
CNC Router Cutting Machine, Nesting CNC Machine
Product Name
Woodworking CNC Router
Working Area
1300*2500mm
Spindle
Atc 9kw Air Cooled Spindle
Control System
Taiwan Lnc
Transmission
Xy Axis Taiwan Helical Rack Z Axis Taiwan Ball SCR
Guide Rail
X,Y,Z Axis Germany Square Guide Rail
Motor
Dorna Servo Motors
Tools
1box (10 Pieces)
Oil Lubrication
Automatic Lubrication
Transport Package
Wooden Case
Specification
1325
Trademark
IGOLDENCNC
Origin
China
HS Code
84659900
Production Capacity
2000 Per Year

Product Description

Cnc automatic tool change 1325 sculpture wood carving cnc cutting machine router woodworking center
Features:
This 3 axis 1325 wood cnc router cutting machine(nesting cnc machine) is a cost-effective intelligent CNC cutting center, which integrates automatic positioning, optimized cutting, punching, slotting and engraving, so as to maximize the use efficiency of labor.
Name: 1325 Cnc Nesting Machine
Working area : 1300*2500mm (Customized size)
Spindle : ATC 9KW HQD air cooling spindle
Inverter: Fuling
Motor : Dorna servo motors
Driver : Dorna servo driver
Control System : Taiwan LNC control system
Table : Double layer Vacuum table + position cylinder + secondary dust collection + Pusher system
Oil lubrication : Automatic lubrication
Limit: Omron limit
Transmission : XY axis Taiwan helical rack Z axis Taiwan ball screw
Rail : X,Y,Z axis Germany Square guide rail
Screw : Z axis TBI ball screw
Bed: Thick steel welded big square tube
Gantry : Strong frame
Pillars : Steel pillar(Suitable for high-end customers)
Cabinet : Independent cabinet
Voltage : 3 phase/380V
Color : As requirement
Tools : 1box (10 pieces)

Machine in Workshop:
Applications of cnc wood router machine:
(1) Cabinet, wardrobe, bank office furniture, computer desk, children's furniture, panel furniture, office furniture;
(2) Decoration with hollow lattice, soft bag background wall production;
(3) Panel furniture cutting, slotting and hole arranging.
Company information: iGoldencnc group is one of manufacturing and research and development of the company that focus on CNC engraving machine and cutting machine for many years since 2002. Located in Jinan,shandong province,covers the area of 6000 square meters.
Our products have been certified by various parties, including CE, ISO9001 and FDA. Products can meet different needs of customers. Advanced technology, experienced engineers and first class service are our fundamental guarantee.
